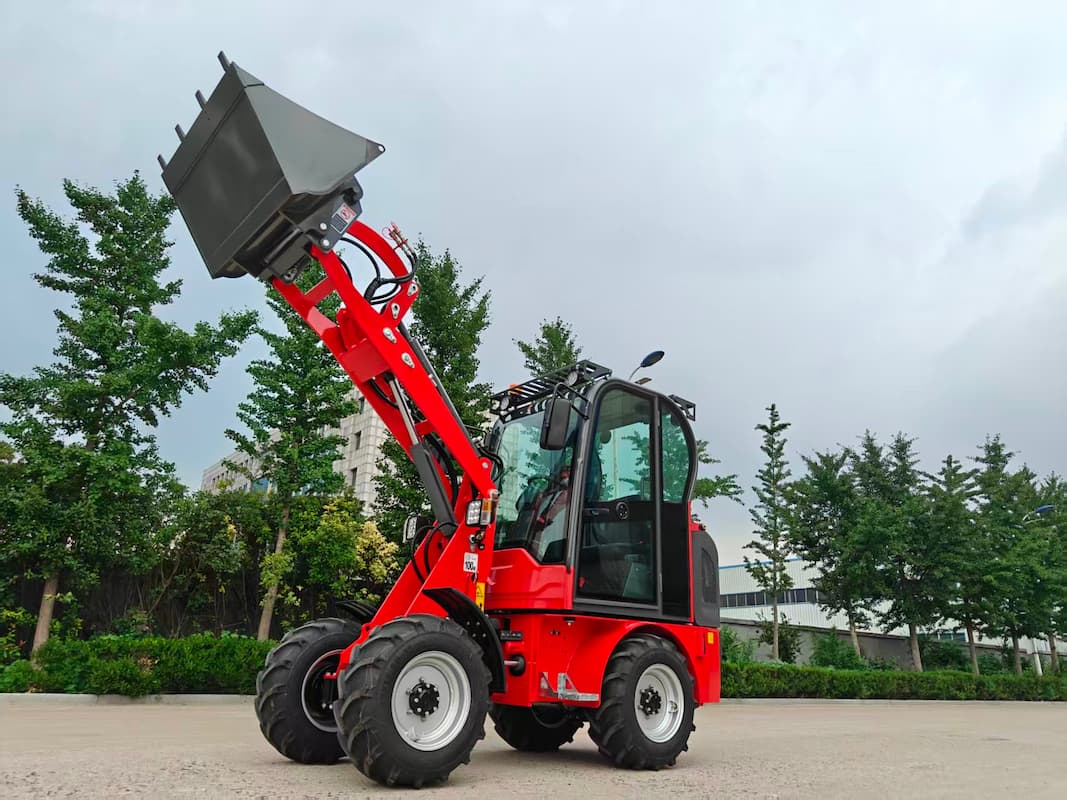

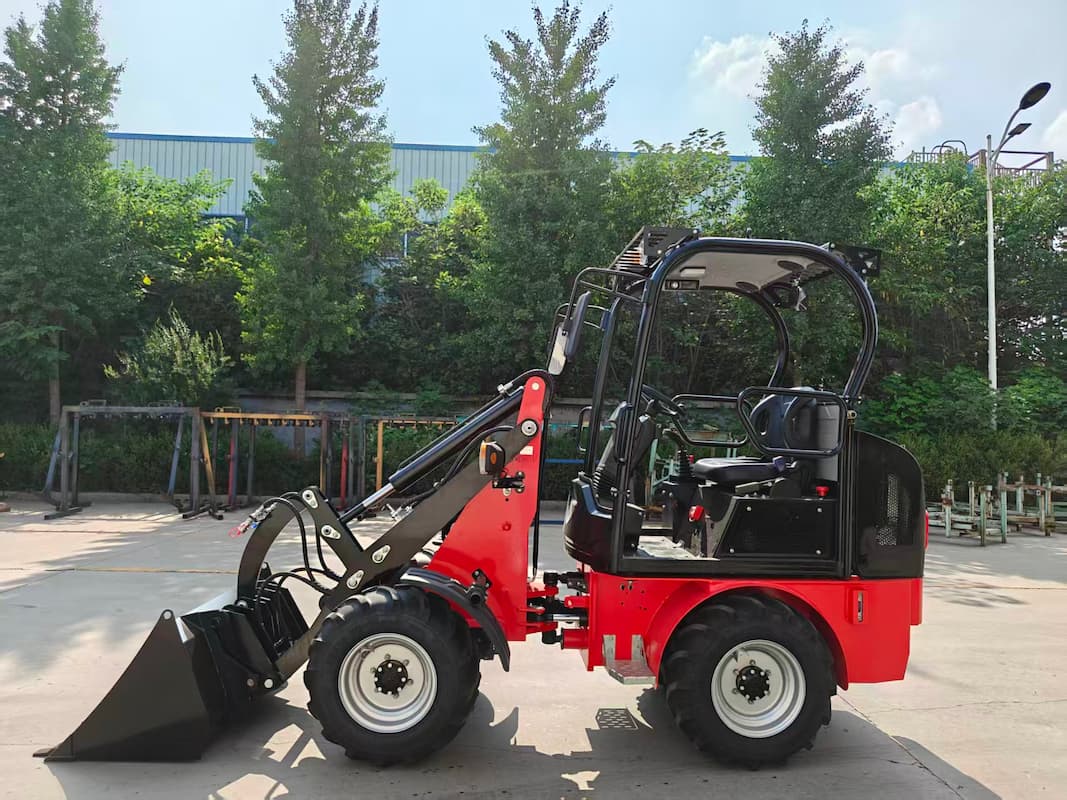

800KGS - 1 Ton Mini Electric Loader, zero emission, low noise, strong power. Equipped with lithium battery, long endurance, energy-saving. Compact structure, full hydraulic control, stable and reliable. Ideal for material handling in factory, warehouse, agriculture and municipal works.
MY908EV
|
Performance |
额度载重 Rated load capacity（t) |
0.6 |
|
|
最大载重 Maximum load capacity（t） |
0.8 |
||
|
斗容 Bucket rated capacity（ m)³ |
0.3 |
||
|
卸载高度 Dumping height（ mm) （at 45°) |
1780 |
||
|
最大举升高度 Lifting Height（ mm) |
3140 |
||
|
卸载距离 Dumping Reach（ mm) |
980 |
||
|
最大举升力 Max. Lifting weight（kg） |
600 |
||
|
最大崛起力 Max. Excavation Force（kn) |
1000 |
||
|
最大爬坡度 Max. Grade ability |
30 ° |
||
|
最大转弯角度 Max. Turning Angel |
30°±1 |
||
|
后桥摇摆度数 Swing degree of the rear axle |
7 ° |
||
|
Dimensions. &.Weight |
总长 Overall length（Bucket on Ground position） mm |
3840 |
|
|
斗宽 Bucket width（ overall width） |
1160 |
||
|
高度 Overall Height(mm) |
2330 |
||
|
轮距 Wheel base(mm) |
850 |
||
|
最小离地高度 Min Ground Clearance(mm) |
240 |
||
|
净重 Net Weight（kg) |
1980kg |
||
|
|
|
||
|
Battery |
电瓶型号 Battery Model No. |
6-EVF-203A |
|
|
电流 rated capacity（3hr) |
200Ah |
||
|
电瓶数 No.of battery groups |
12 |
||
|
电压 Rated Voltage |
72V |
||
|
工作小时 Working hours（h） |
4-5h |
||
|
Transmission System |
液压系统 Hydraulic System |
马达型号 Motor No. |
CBHV |
|
电压 Voltage |
72V |
||
|
功率 Power |
5000W |
||
|
排量 Displacement（ ml/r) |
18 |
||
|
轮胎 Tyres |
型号 Type |
26*1200-12 |
|
|
工作压力 working pressure（ mpa) |
0.3 |
||
|
数量 Qty |
4 |
||
|
转向类型Type of Steering Hydraulic System |
全液压转向 Full Hydraulic Steering System |
||
|
系统压力 System Pressure （ mpa) |
16 |
||
|
转向泵 Type of Steering Pump |
External Gear Pump |
||
|
转向油缸孔距Steering Cylinder Bore（ mm) |
63 |
||
|
数量 Qty（pc） |
1 |
||
|
Braking System |
手刹 Service Brake |
Drum Brake |
|
|
刹车鼓 Brake Drum（ mm) |
250 |
||
|
制动 Parking Brake |
Drum Brake |
||
|
|
分流阀 Distribution Valve |
型号 Model |
DL10 |
|
类型 Type |
Triple valve stem |
||
|
卸载油缸-孔距 Dumping Cylinder-Bore |
Ø80 |
||
|
举升油缸-孔距 Lifting Cylinder-Bore |
Ø63 |
||
|
Oil Capacity |
液压油箱容量 Hydraulic Oil Tank（L) |
30 |
|
|
刹车油油量 Brake Fluid（L) |
0.8 |
||
MY910EV
|
电动轮式伸缩臂装载机规格 Electric wheel loader specification |
||||
|
性能 `Performance |
额定载荷 Rated Load（t） |
1 |
||
|
|
铲斗额定容量Bucket rated capacity（m³） |
0.45 |
||
|
|
倾倒高度Dumping height（mm） |
2300 |
||
|
|
举升高度Lifting Height（mm） |
3380 |
||
|
|
卸载距离Dumping Reach（mm） |
650 |
||
|
|
最大载重重量Max. Lifting weight（kg） |
1000 |
||
|
|
最大崛起力Max. Excavation Force（kg） |
1100 |
||
|
|
最大爬坡能力Max. Grade ability （°） |
18 |
||
|
|
最大转向角度 Max. Turning Angel （°） |
29±1 |
||
|
外形尺寸 以及重量 Dimensions. &.Weight Of machine |
总长度Overall length（mm） |
4450 |
||
|
|
总宽度overall width（mm） |
1260/1300 |
||
|
|
总高度 Overall Height（mm） |
2450 |
||
|
|
轴距 Wheelbase（mm） |
1580 |
||
|
|
轮距 Tire spacing（mm） |
1000 |
||
|
|
最小离地间隙（mm）Min Ground Clearance |
215 |
||
|
|
净重（kg）Net Weight |
2340 |
||
|
电池Battery |
72v/280ah,working time is about 5-6hours |
|
||
|
|
额定电压Rated Voltage（v） |
72 |
||
|
传动系统Transmission System |
液压系统 Hydraulic System |
电机型号Motor No. |
YQP5-72AF-48P |
|
|
|
|
电压Voltage（v） |
72 |
|
|
|
|
功率Power（W） |
5000 |
|
|
|
|
排量Displacement（ml/r) |
15 |
|
|
|
|
转速rotating speed（r/min） |
2000 |
|
|
|
行走系统 Walking System |
电机型号Motor No. |
YQP4-72A1-48P |
|
|
|
|
电压Voltage（v） |
72 |
|
|
|
|
功率Power（W） |
4000x2 |
|
|
|
|
转速rotating speed（r/min） |
2988 |
|
|
|
轮胎 Tyres |
类型Type |
29*12.50-15 |
|
|
|
|
工作压力Working pressure（mpa) |
0.3 |
|
|
|
|
数量Qty |
4 |
|
|
转向系统Steering System |
转向液压系统的类型 Type of Steering Hydraulic System |
全液压转向系统Full Hydraulic Steering System |
||
|
|
系统压力System Pressure（mpa) |
16 |
||
|
|
转向泵的类型Type of Steering Pump |
齿轮泵Gear Pump |
||
