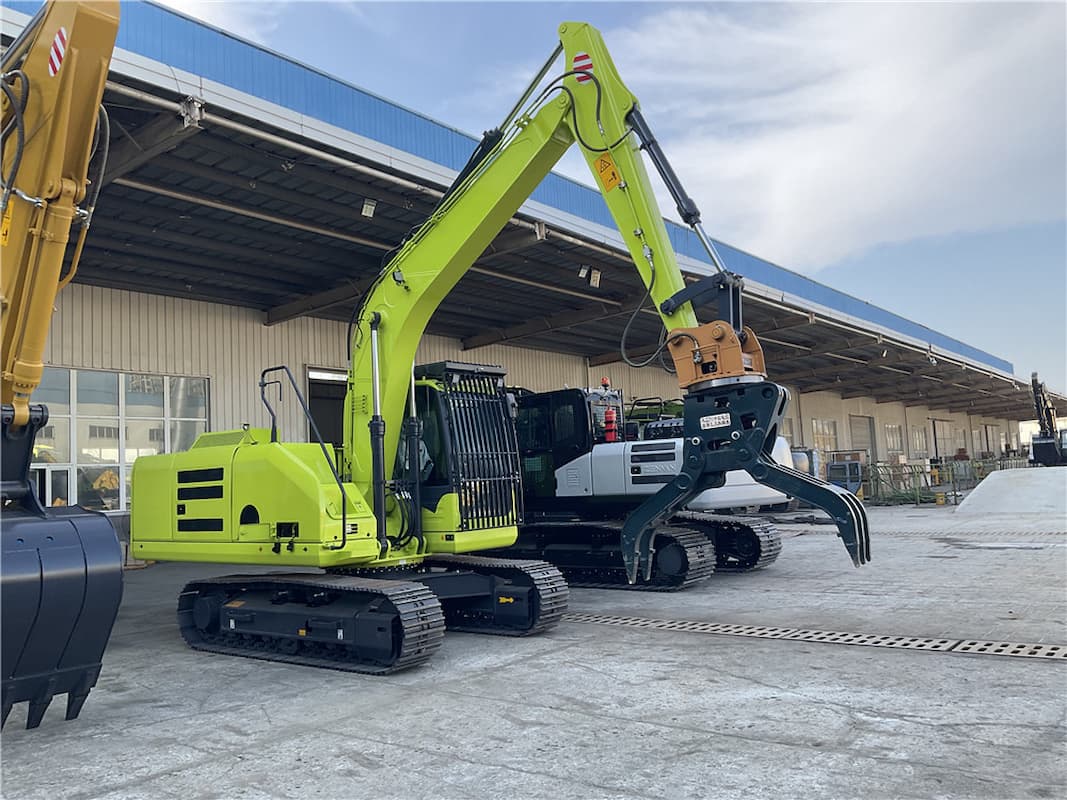

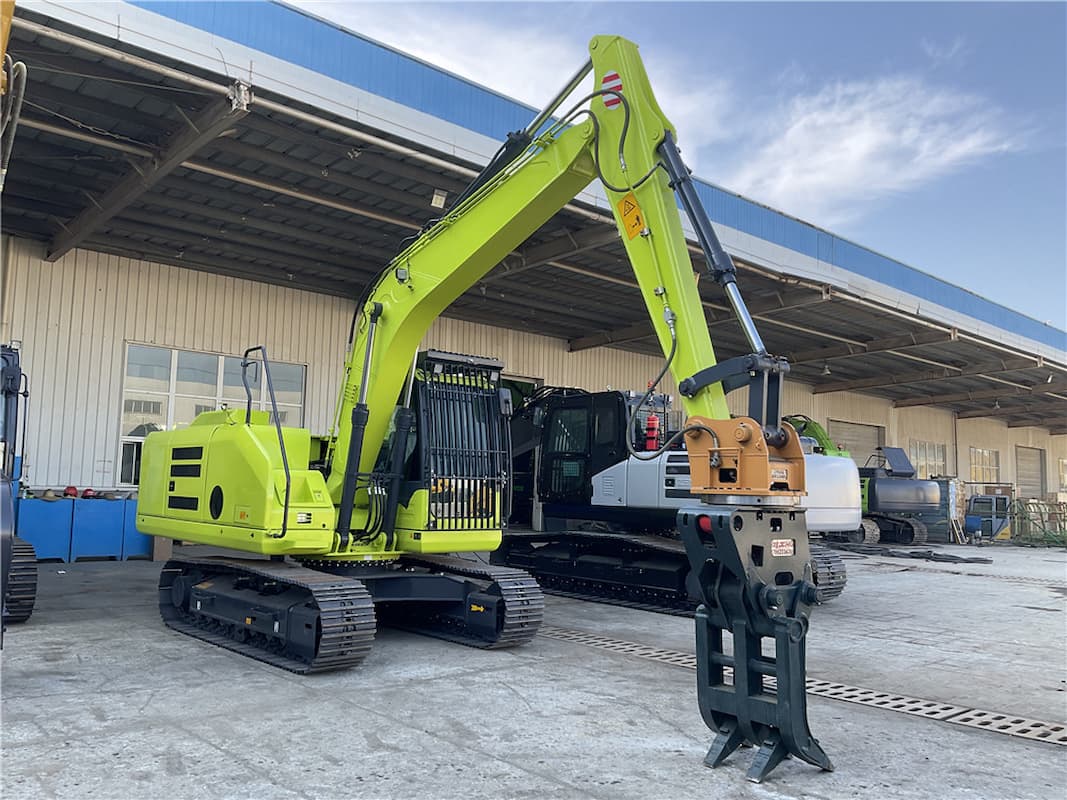

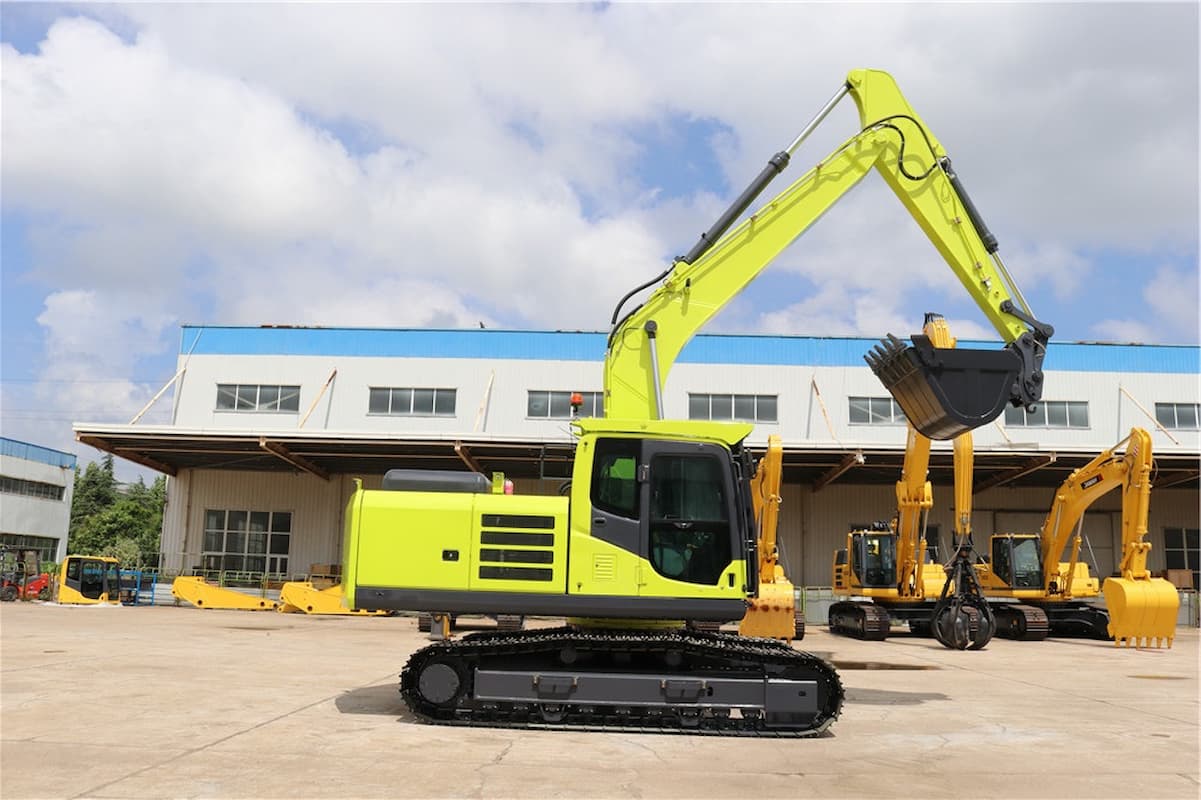

24-ton electric excavator offers energy efficiency, eco-friendliness, smart control, easy maintenance, and versatile applications. Designed for modern construction needs, it combines advanced technology with environmental responsibility for reliable and effective performance.
Item No. :
MY8240EVOperating Weight :
24000KGSWorking Time :
8-10HBattery Capacity :
422.8KWHOEM/ODM :
SUPPORTThe Technical Specification of MY8240EV Electric Excavator
| Specification | MY8240EV | |
| Total weight | T | 23.5 |
| Bucket capacity | M³ | 1.17 |
| Motor model | WR510 | |
| Rated power | Kw/r/min | 140/1900 |
| Rated voltage | V | 618.2 |
| Rated stored energy | KWh | 422.8 |
| Max displacement | L/min | 260*2 |
| Working pressure | Mpa | 34.3 |
| Hydraulic pump mode | APVO140TVN90WI | |
| Hydraulic tank volume | L | 246 |
| Walking speed (high/low) | km/h | 4.2/2.6 |
| Swing speed | r/min | 10.3 |
| Climbing ability | ° | 35 |
| Bucket excavation force | KN | 159 |
| Arm digging force | KN | 115 |
| Ground specific voltage | KPa | 48.6 |
| Traction force | KN | 219 |
| Max. excavation height | mm | 9310 |
| Max. unloading heigh | mm | 6438 |
| Max.excavation depth | mm | 6875 |
| Max. verticalarm mining depth | mm | 5860 |
| The distance when digging 2.5 horizontal plane | mm | 6680 |
| Max. excavation distance | mm | 10170 |
| Max. excavation distance on the ground | mm | 9990 |
| Min. turning radius | mm | 3975 |
| Max. height at minimum turning radius | mm | 7775 |
| Distance from the center of rotation to the rear end | mm | 2810 |
| Counterweight height | mm | 2120 |
| Grounding length during transportation | mm | / |
| Overalllength | mm | 9930 |
| Overall width | mm | 2980 |
| Total height(boom top) | mm | 3190 |
| verall height(top ofcab) | mm | 3120 |
| Counterweight ground clearance | mm | 1065 |
| Min. ground clearance | mm | 442 |
| Tail turning radius | mm | 3000 |
| Track grounding length | mm | 3640 |
| Track length | mm | 4450 |
| Rail guage | mm | 2380 |
| Track width | mm | 2980 |
| Track shoe width | mm | 600 |
| Turntable width | mm | 2700 |
| rack tooth thickness | mm | / |
| Arm length | mm | 3050 |
| Boom length | mm | 5850 |
