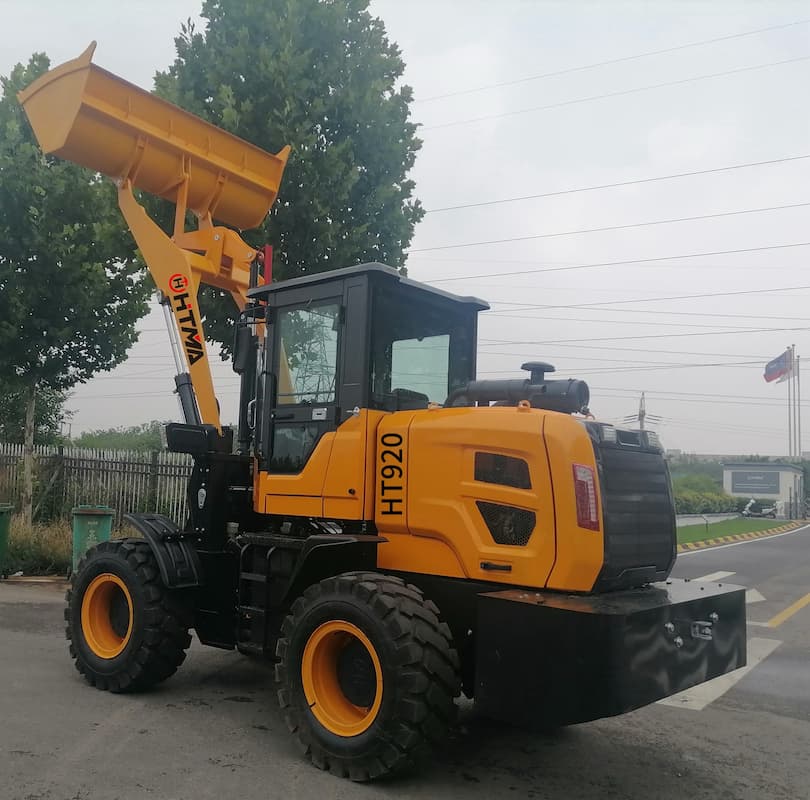

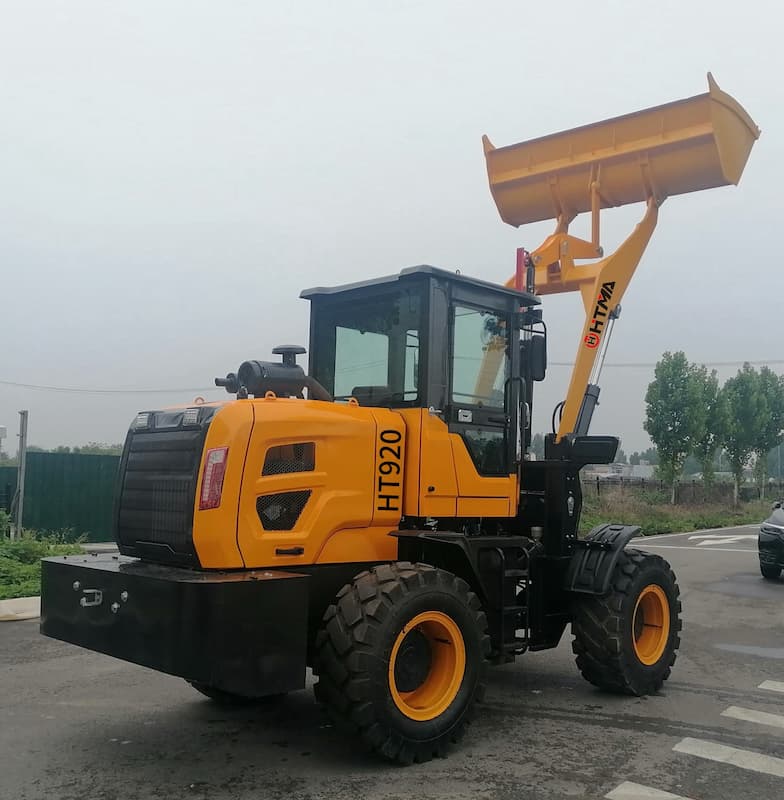

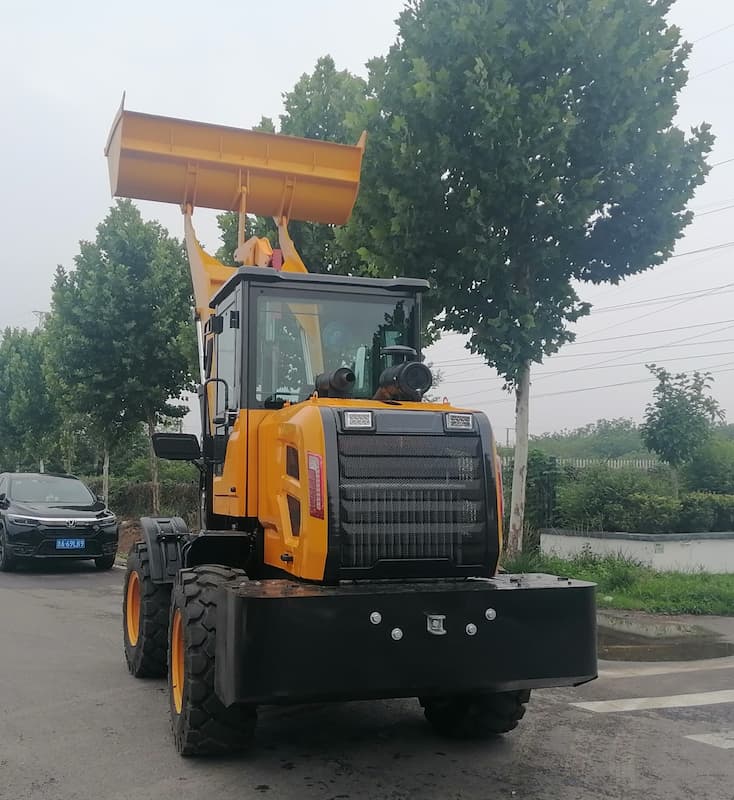

2 ton wheel loader with EPA engine,environmentally friendly, meets EPA emission standards and has a wide range of applications.It also can be equipped with different attachment.
Item No. :
HT920Load Capacity :
1800KGDumping Height :
2900 mmEngine Rated Power :
50KWBucket Capacity :
0.8-1.0 m³OEM/ODM :
SUPPORT2 Ton Wheel Loader Technical Parameters
Model |
HT920 |
Bucket capacity |
0.8 m³ |
Rated load |
1800kg |
Overall dimension |
4700*1700*2650 |
Operating weight |
3300 kg |
Max.dumping height |
2900 mm |
Max.dumping reach |
850mm |
Engine |
yunnei |
Cylinder numbe |
4-cylinders |
Rated power |
50kw |
Optional Engine |
Cummins |
Steering type |
Full-hydraulic, articulated |
Torque converter type |
Automatic, hydraulic converter |
Gear shift |
2 forward, 2 reverse |
Max.speed |
25 km/h |
Axle |
4wD, big hub reduction |
Tyre size |
20.5/70-16 |
Service brake |
Gas cap oil disc brake on 4 wheels |
Parking brake |
Hand operated caliper disce |
Operating type |
Mechanical single joystick |
Optional operating type |
pilot control |
Optional configuration |
Air conditioner, rearview camera etc. |
Optional attachment |
Quick hitch, fork, log grapple etc. |
