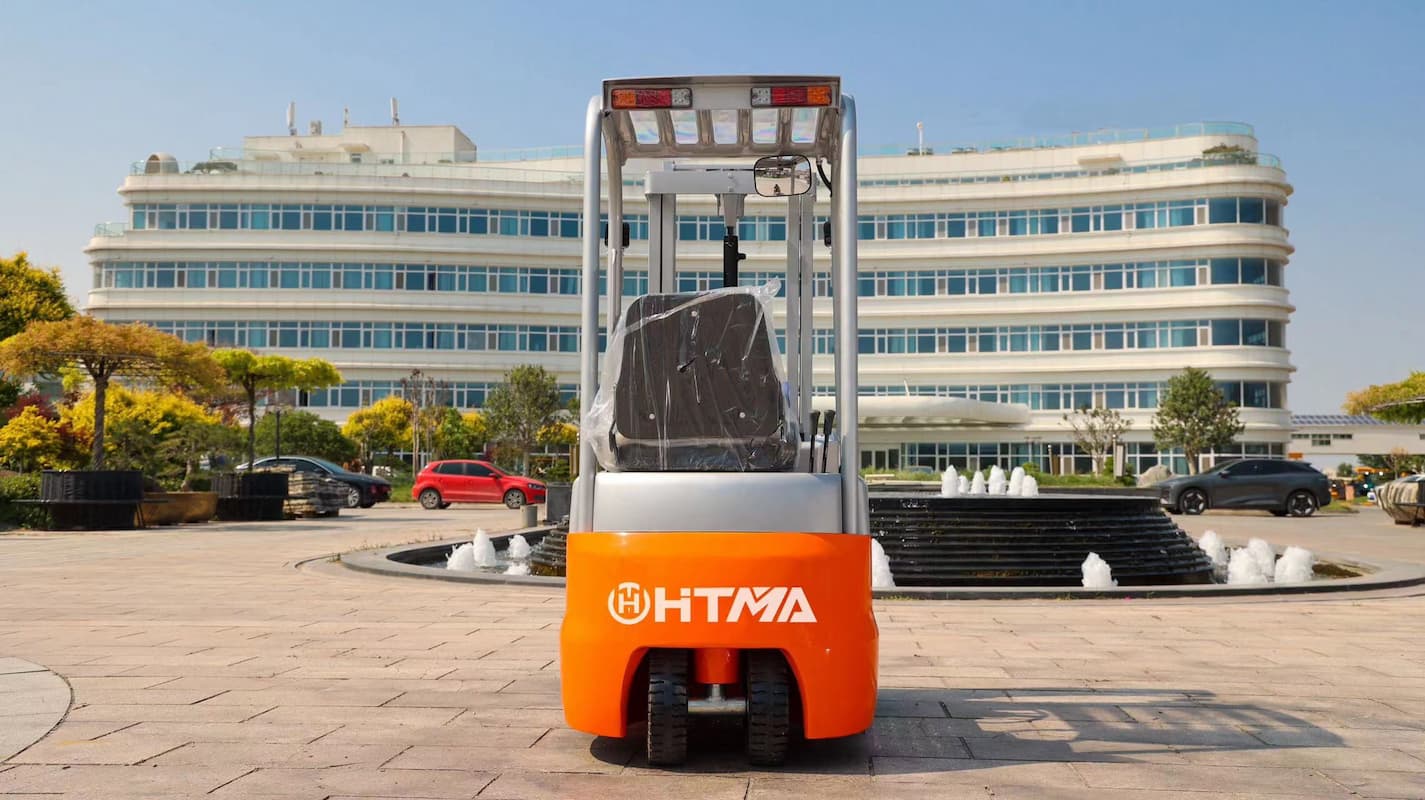

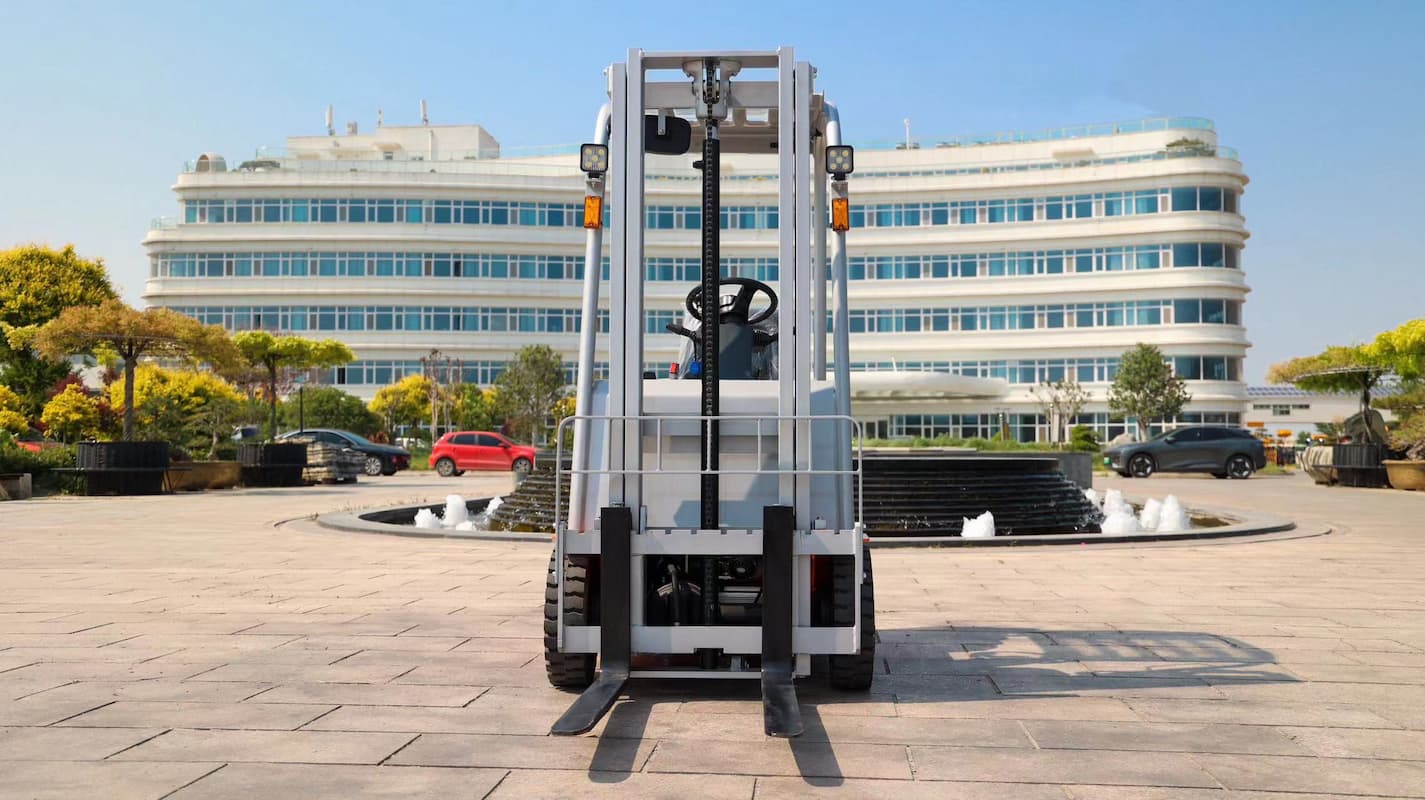

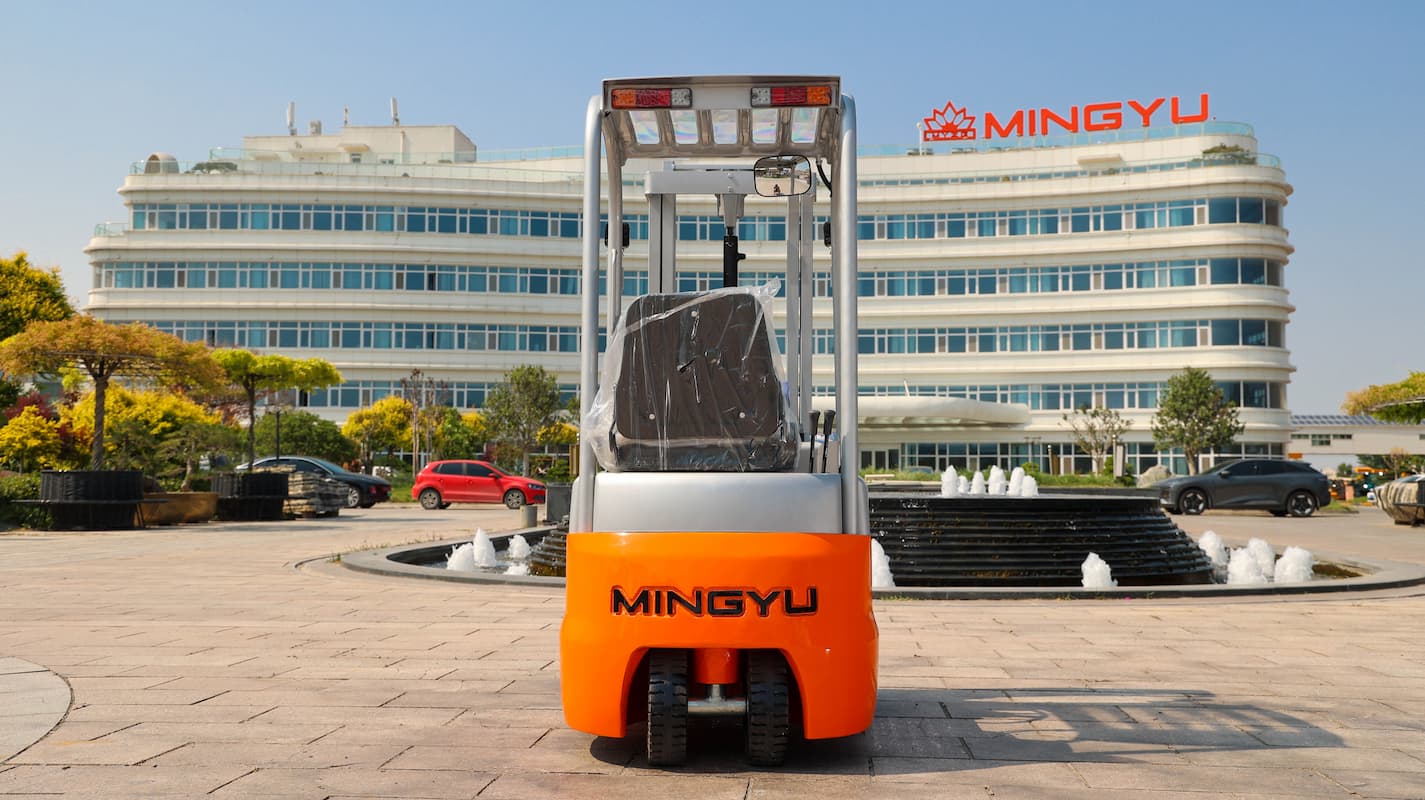

HTA05 Electric Forklift With Lithium Battery

Power

LI-ION

Minimum turning radius

mm

             1285

Rated lifting capacity

KG

500

Minimum right angle channel width

mm

2565

Load centre distance

mm

400

Gantry inclination angle

(°)m

5/6

Operation mode

Driving

Maximum lifting speed without load

m/s

300

Overall length

with fork

mm

2230

Maximum lifting speed under full load

250

without fork

mm

1395

Maximum operating speed without load

Km/h

12

Width

mm

887

Maximum operating speed under full load

11

Height

Height  of no-lifting

mm

1820

Maximum climbing slope under full load

%

10

Height  of roof gard

mm

1820

Forklift weight

Kg

1220

Maxium height during operation

mm

3188

Tyre (optional)

Pneumatic OR solid tyre

Wheelbase

mm

943

Front overhang

mm

278

Front tyre size

4.00-8

Rear overhang

mm

174

Rear tyre size

3.5-5

Front track width

mm

784

Brakes

Electromagnetic brake

Rear track width

mm

250

Park brakes

Electromagnetic brake

Minium ground clearance

mm

60

Battery voltage/capaci

V/AH

76.8V/60AH

Standard lifting height

mm

2500

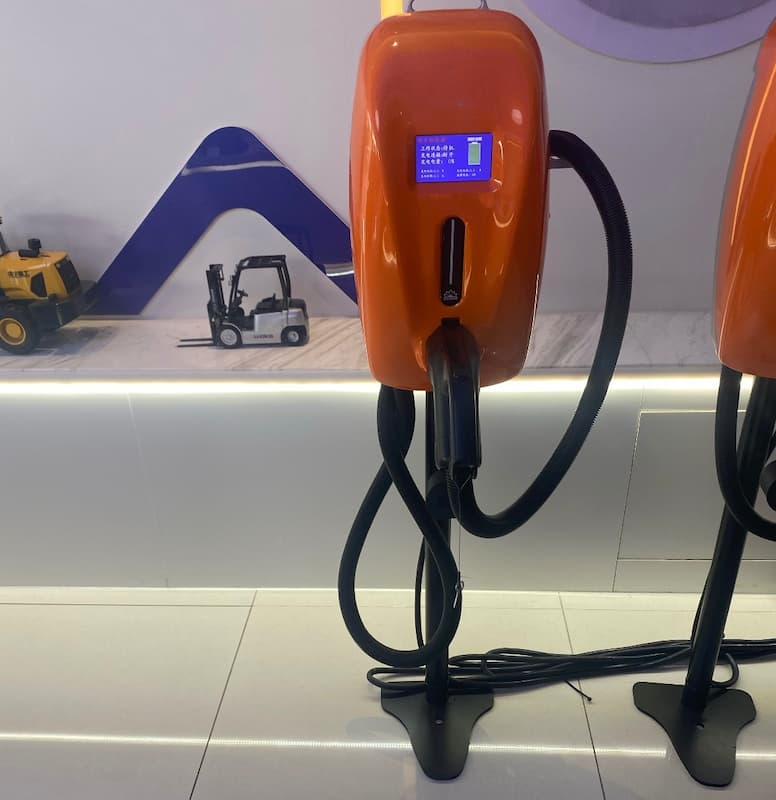

Charger

V/A

20A

Free lifting height

mm

0

Drive motor power

Kw

2

Fork adiustment range

mm

152-782

Oi1 pump motor power

2
