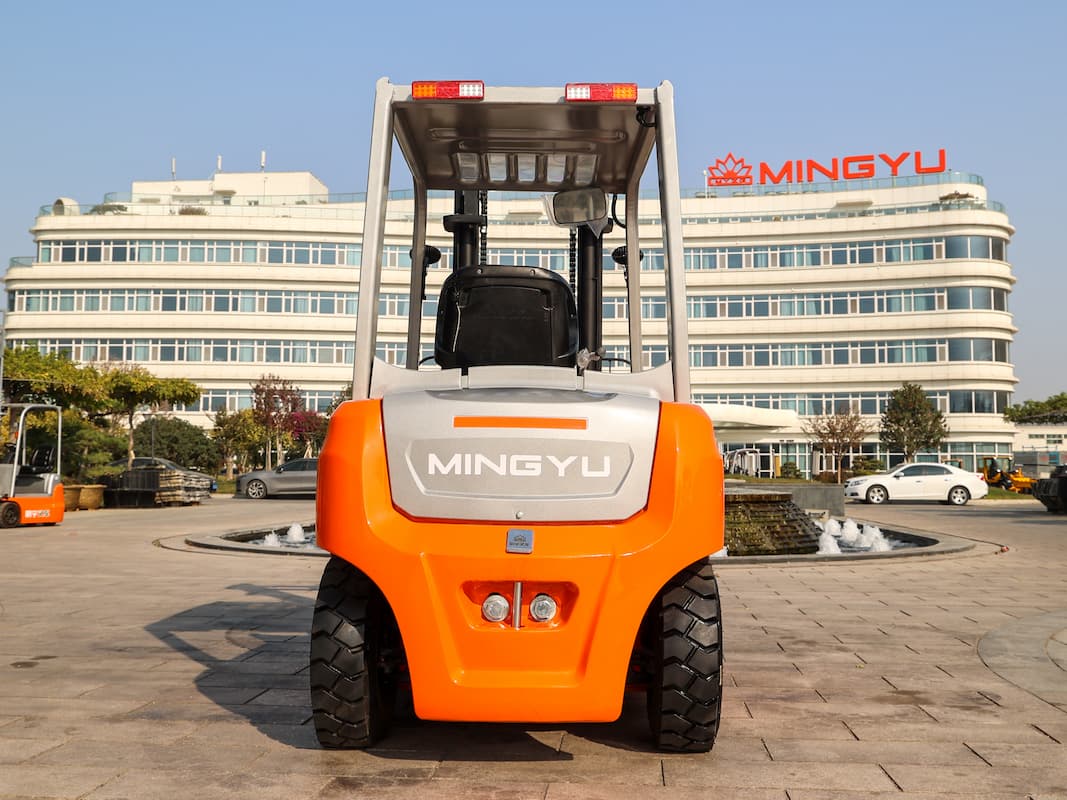

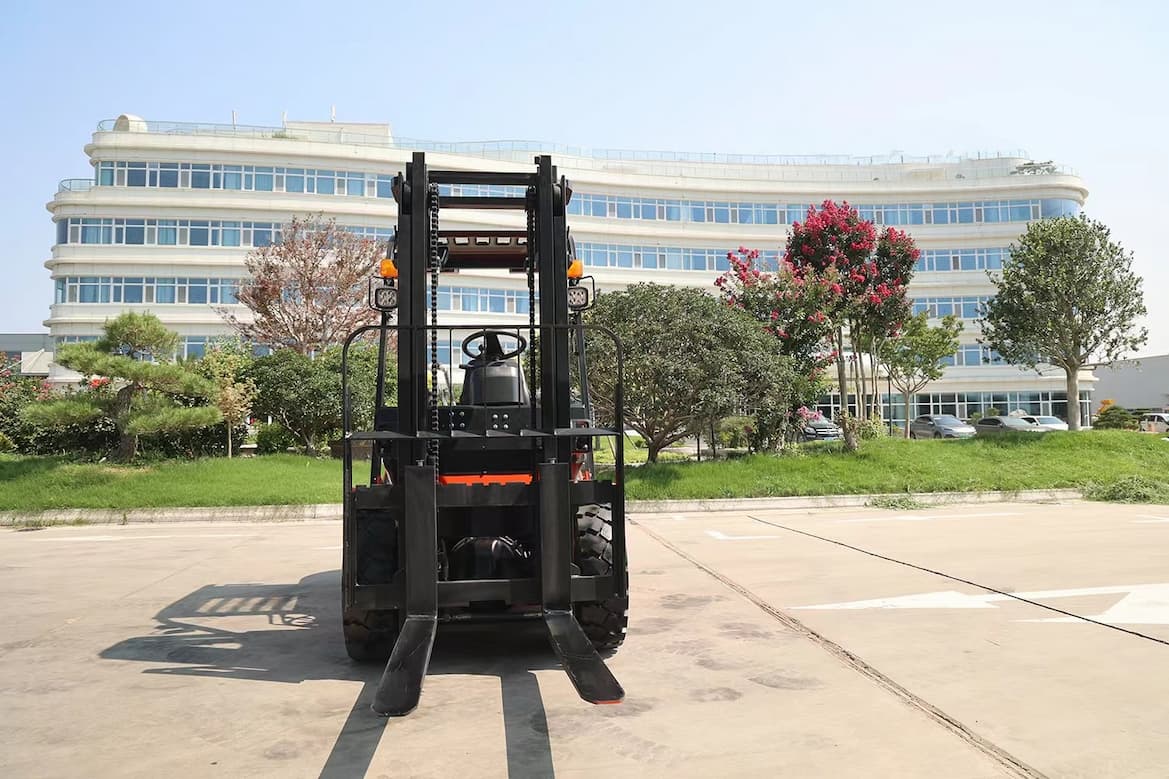

HTB40 Electric Forklift With Lithium Battery

Power

LI-ION

Minimum turning radius

mm

2650

Rated lifting capacity

KG

4000

Minimum right angle channel width

mm

4405

Load centre distance

mm

500

Gantry inclination angle

(°)

6/12

Operation mode

Driving

Maximum lifting speed without load

mm/s

380

Overall length

with fork

mm

3957

Maximum lifting speed under full load

300

without fork

mm

2882

Maximum operating speed without load

Km/h

13

Width

mm

1232

Maximum operating speed under full load

12

Height

Height  of no-lifting

mm

2062

Maximum climbing slope under full load

%

15

Height  of roof gard

mm

2165

Forklift weight

Kg

4830

Maxium height during operation

mm

4183

Tyre (optional)

Pneumatic OR solid tyre

Wheelbase

mm

1980

Front overhang

mm

455

Front tyre size

250-15

Rear overhang

mm

464

Rear tyre size

6.50-10

Front track width

mm

1005

Brakes

Foot brake

Rear track width

mm

988

Park brakes

Hand brake

Minium ground clearance

mm

160

Battery voltage/capaci

V/AH

153.6V/150AH

Standard lifting height

mm

3000

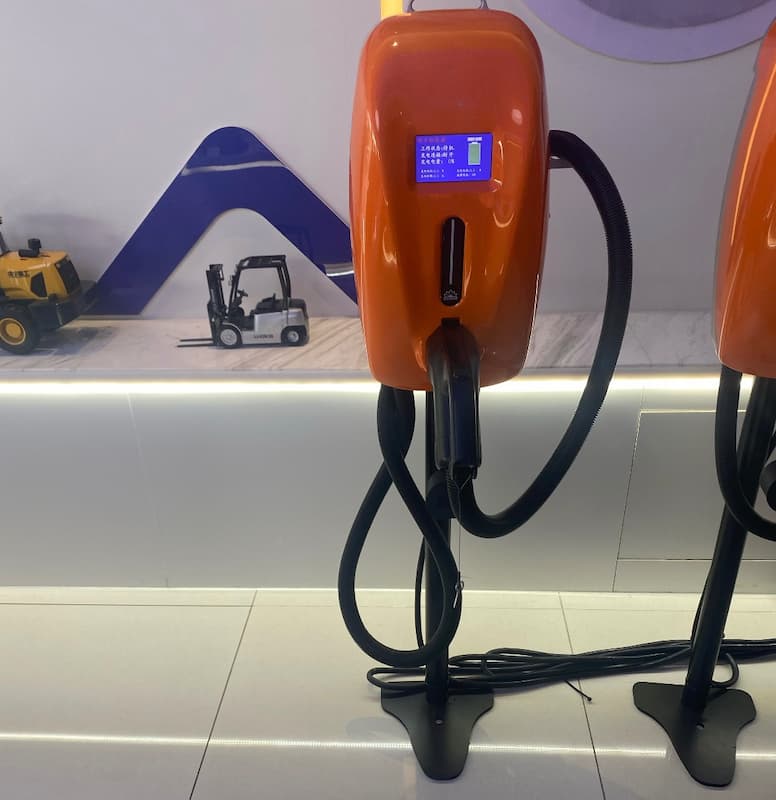

Charger

V/A

153.6V/100A

Free lifting height

mm

45

Drive motor power

Kw

13.1

Fork adiustment range

mm

260-1100

Oi1 pump motor power

16.5
