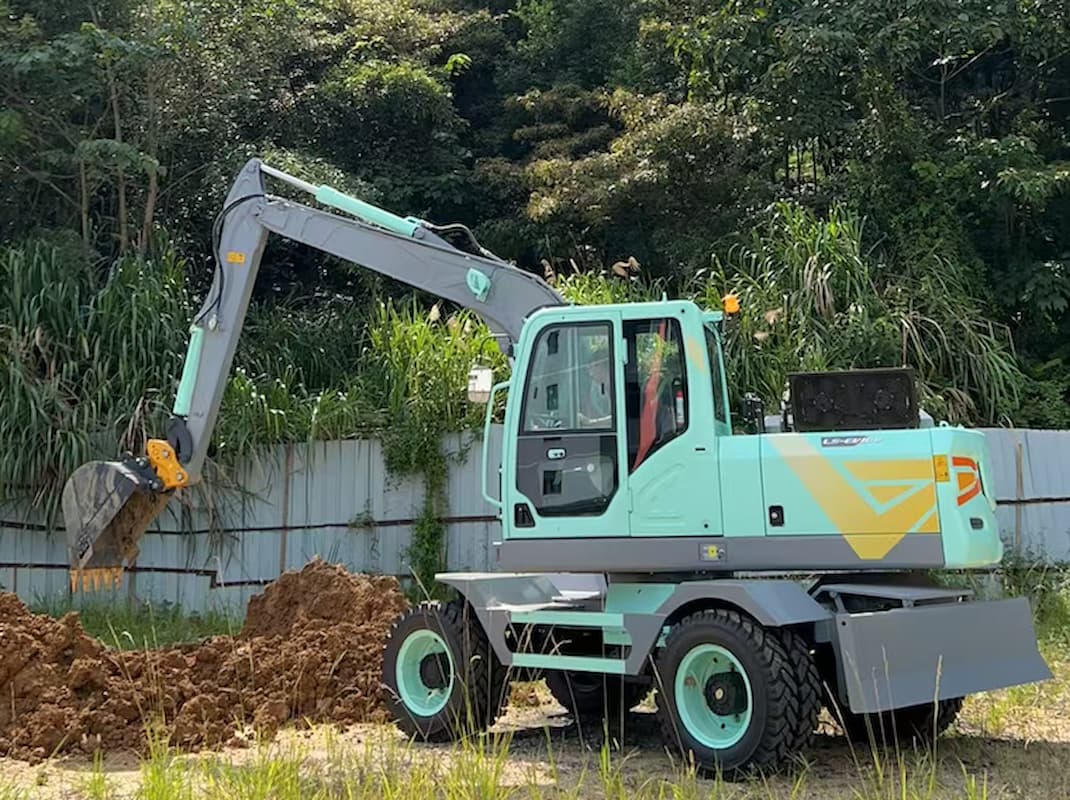

Powerful 10-ton electric excavator offers energy efficiency, eco-friendliness, smart control, easy maintenance, and versatile applications. Designed for modern construction needs, it combines advanced technology with environmental responsibility for reliable and effective performance.
Item No. :
MY8108W-EVOperating Weight :
10000KGWorking Time :
10HBattery Capacity :
141.3KWHOEM/ODM :
SUPPORT
Environmental Protection & Energy Saving
· Zero Emissions, Zero Pollution: Pure electric
drive system ensures no exhaust emissions
during operation, reducing environmental impact
and supporting green construction.
· Ultra-Quiet Operation: Low noise performance
ideal for urban and residential areas, enhancing
worksite comfort.
· Energy and Cost Savings: Electricity replaces
fuel, reducing operating costs to just 1/3 of
traditional fuel models (based on domestic
electricity rates), significantly lowering long-term
expenses.
|
EV108 SPECIFICATION |
||
|
MEASUREMENTS |
||
|
Length of Transport（mm） |
A |
6800 |
|
Width of Transport（mm） |
B |
2120 |
|
Overall height（mm） |
D |
2930 |
|
Tail swing radius（mm） |
E |
2300 |
|
Ground clearance of the middle axle for the tires （mm） |
F |
485 |
|
Ground clearance of the counterweight（mm） |
G |
1160 |
|
Ground clearance of the engine hood（mm） |
H |
2030 |
|
Turntable width（mm） |
I |
2100 |
|
Wheel base（mm） |
J |
2700 |
|
Track width（mm） |
K |
1630 |
|
Tire model |
|
8.25-20 |
|
Minimum ground clearance（mm） |
|
330 |
|
Bulldozer blade width （mm） |
|
2120 |
|
Maximum lifting height of the bulldozer blade（mm） |
|
413 |
|
Maximum lowering depth of the bulldozer bla（mm） |
|
94 |
|
The length of boom （mm） |
|
3800 |
|
The length of arm(mm） |
|
2200 |
|

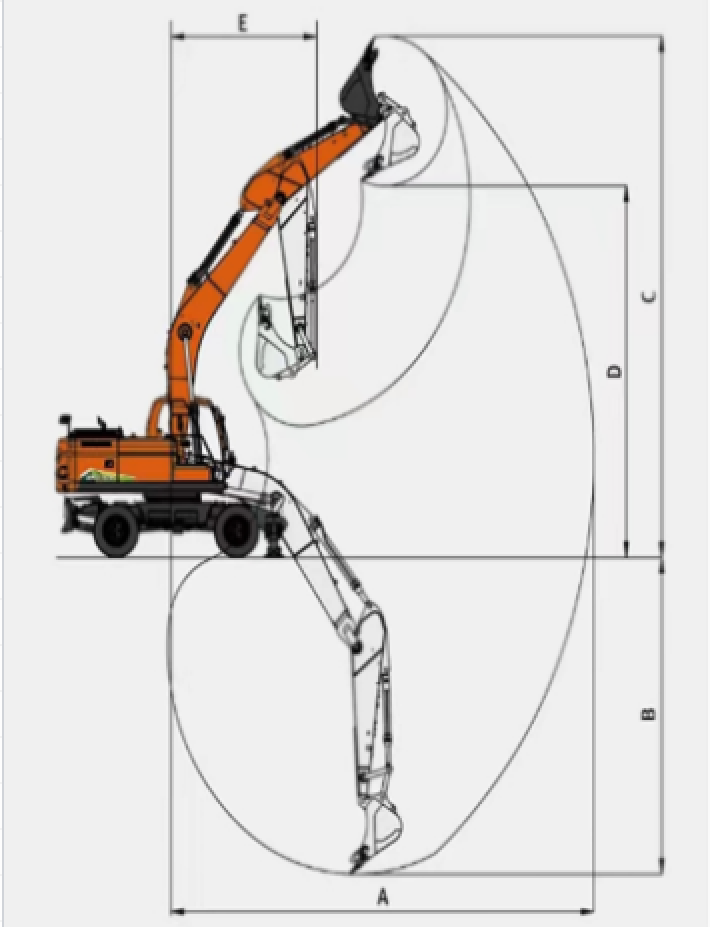

RANGE OF OPERATION |
||
|
Maximum digging radius（mm） |
A |
7280 |
|
Maximum digging depth（mm） |
B |
3720 |
|
Maximum digging height（mm） |
C |
7445 |
|
Maximum dumping height（mm） |
D |
5655 |
|
Minimum front swing radius（mm） |
E |
2645 |
|
Performance parameter |
||
|
Battery capacity （kwh） |
141.3 |
|
|
Rated power of motor （kw） |
46.5 |
|
|
Rated speed （rpm） |
2200 |
|
|
Rated torque（N•m） |
222 |
|
|
Charging time（min） |
120 |
|
|
|
|
|
|
Working time （h） |
6.5-10 |
|
|
Rated pressure（Mpa） |
26 |
|
|
Machine weight (kg） |
10000 |
|
|
Capacity of bucket（m³） |
0.4 |
|
|
Climbing angle |
35° |
|
|
Maximum driving speed（km/h） |
30 |
|
|
Swivelling speed |
8.5rpm |
|
|
Hydraulic oil tank volume |
138L |
|
Versatile Applications

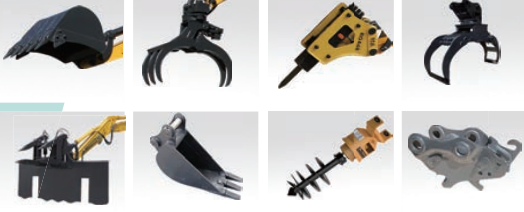

·Multi-Functionality: Compatible with various attachments (e.g., digging, breaking, loading),adapting to diverse working
conditions and maximizing return on investment.
