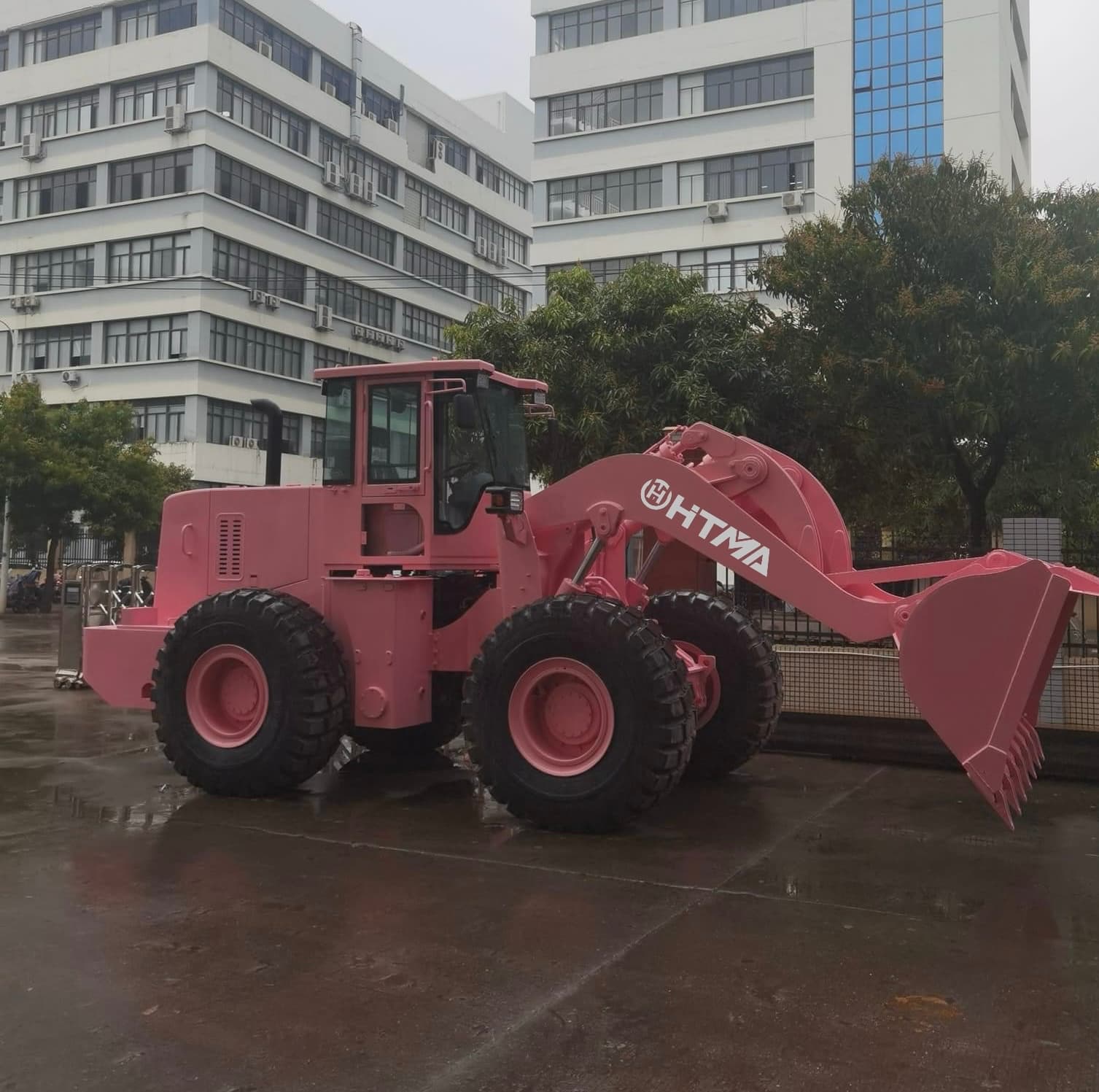

Large Wheel Loader 5 ton High-Power With Weichai Engine with dual rock boom

Large 5 ton high-power diesel engine wheel loader with dual rock boom,excellent driving visibility and driving experience,smaller turning radius for greater manoeuvrability

  • Item No. :

    HT953
  • Load Capacity :

    5000KGS
  • Dumping Height :

    3180MM
  • Engine Rated Power :

    162KW
  • Bucket Capacity :

    3m³
  • OEM/ODM :

    SUPPORT

5 Ton Wheel Loader Specification

Model HT953
Rated power 162KW/2200r/min
Engine Weichai/Cummins
Overall dimensions 7600mm*3000mm*3350mm
Operating weight 16500KG
Rated loading capacity 5000KG
Bucket capacity 3m3
Bucket width 3000mm
Wheel base 2760mm
Tread width 2250mm
Dumping height 3180mm
Dumping reach 1250mm
Turning angle 35°± 1°
Max.climbing Gradient 28°
Turning radius 6650mm
Max.breakout forth 145kN
Max.torque 745.3N.m
Lifting time ≤6.8s
Hydraulic cylinder time ≤12.55s
Specification of tire 23.5-25
Travel speed
Forward gear I 11.5km/h
Forward gear II 38km/h
Reserve gear I 16km/h
