it's optional with both Euro V and EPA engines, it ensures compliance with international emission standards. The advanced pilot control system enhances operational efficiency,With its spacious cabin, operators can enjoy a larger workspace, enabling them to work comfortably
Item No. :
HT935HLoad Capacity :
3000KGSOperating Weight :
10400KGSDumping Height :
3200MMEngine Rated Power :
92KW (OPTIONAL)Bucket Capacity :
1.8m³OEM/ODM :
SUPPORT3 Ton Wheel Loader Technical parameters
Model |
HT935H |
Bucket capacity |
1.8m³ |
Rated load |
3500 kgs |
Overall dimension |
7200*2360*3220mm |
Operating weight |
10400 kgs |
Max. dumping height |
3200 mm |
Max. dumping distance |
1020 mm |

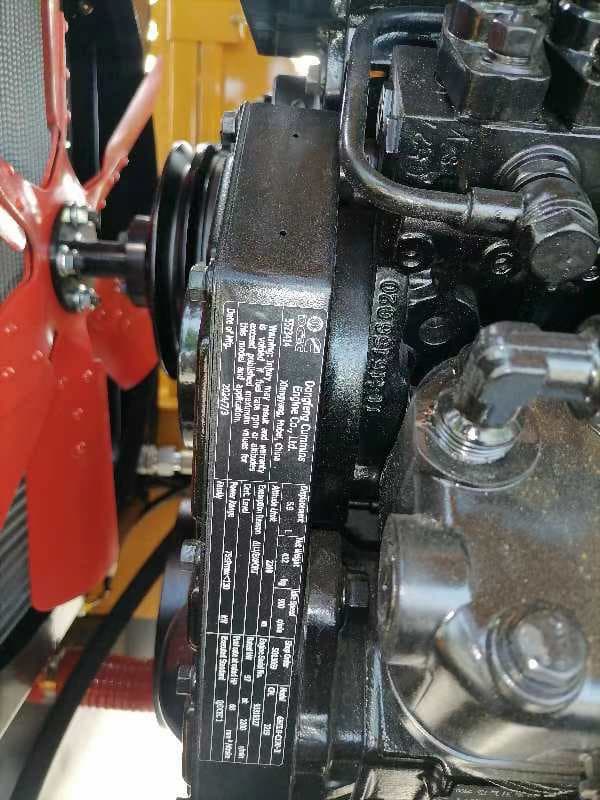

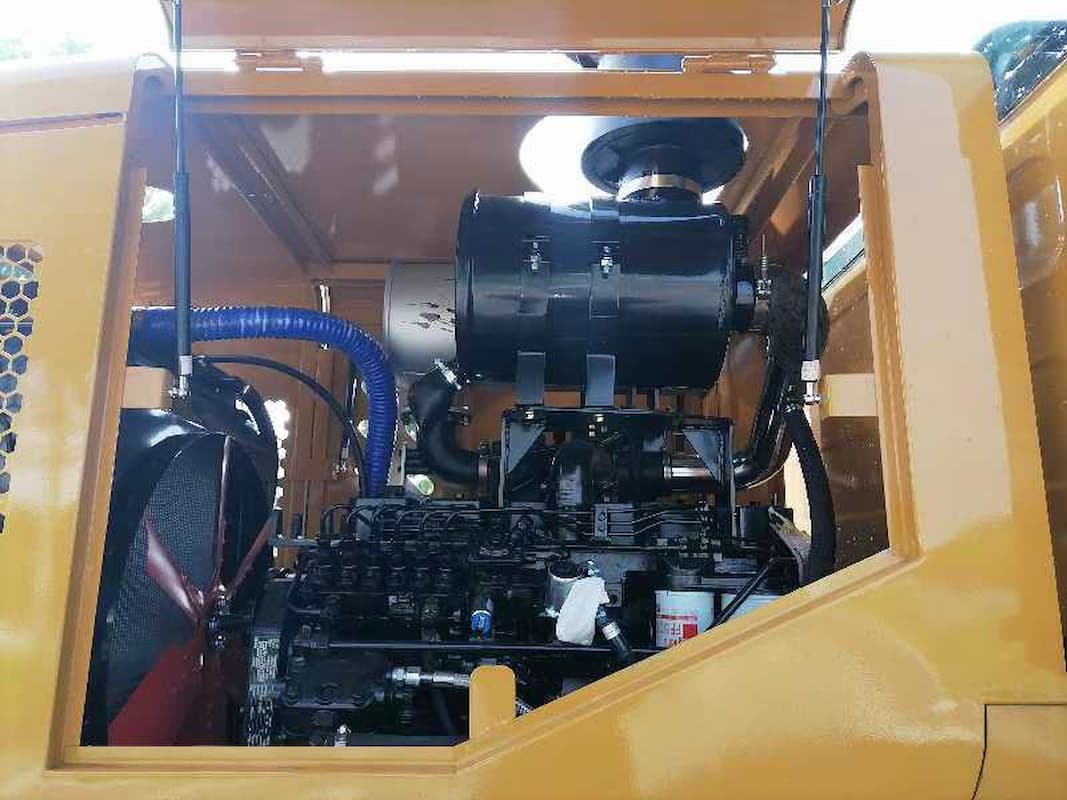

Engine |
WEICHAI (Optional) |
Cylinder number |
4-cylinders |
Rated power |
92KW |

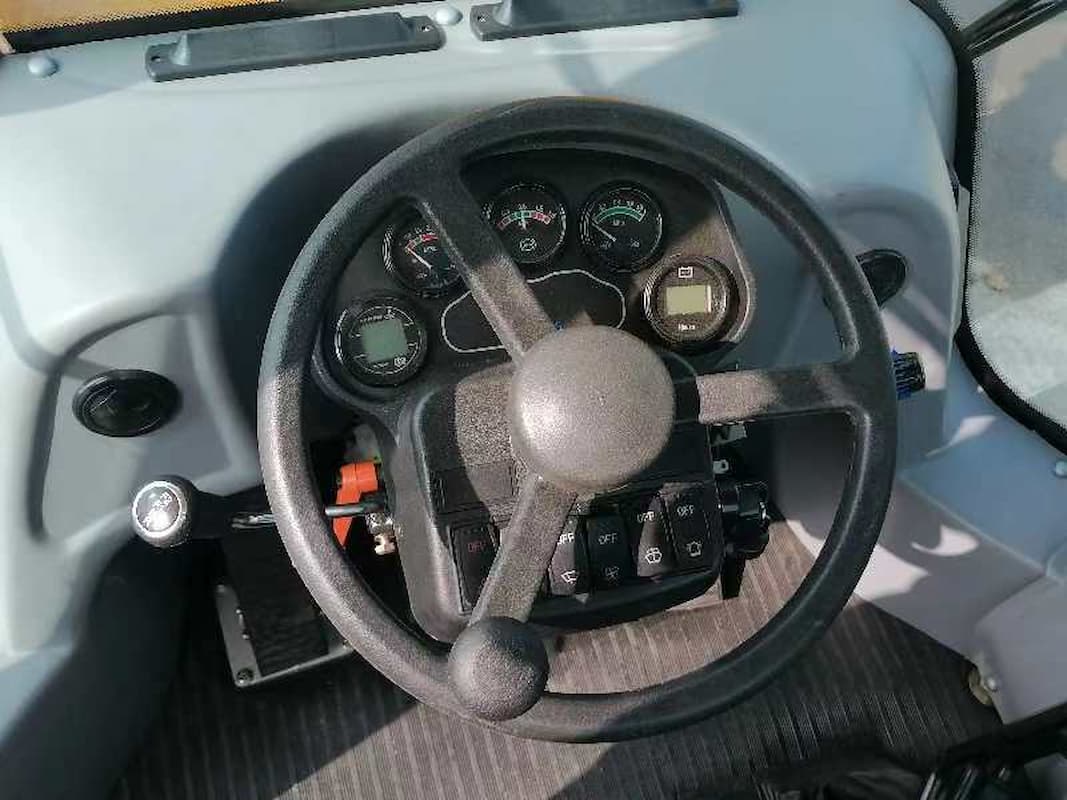

Steering type |
Full-hydraulic, articulated |
Torque converter type |
Automatic, hydraulic converter |
Gear shift |
2 forward, 2 reverse |
Max. speed |
28 km/h |
Axle |
4WD, big hub reduction |
Tyre size |
16/70-24 |
Service brake |
Gas cap oil disc brake on 4 wheels |
Parking brake |
Hand operated caliper disc |

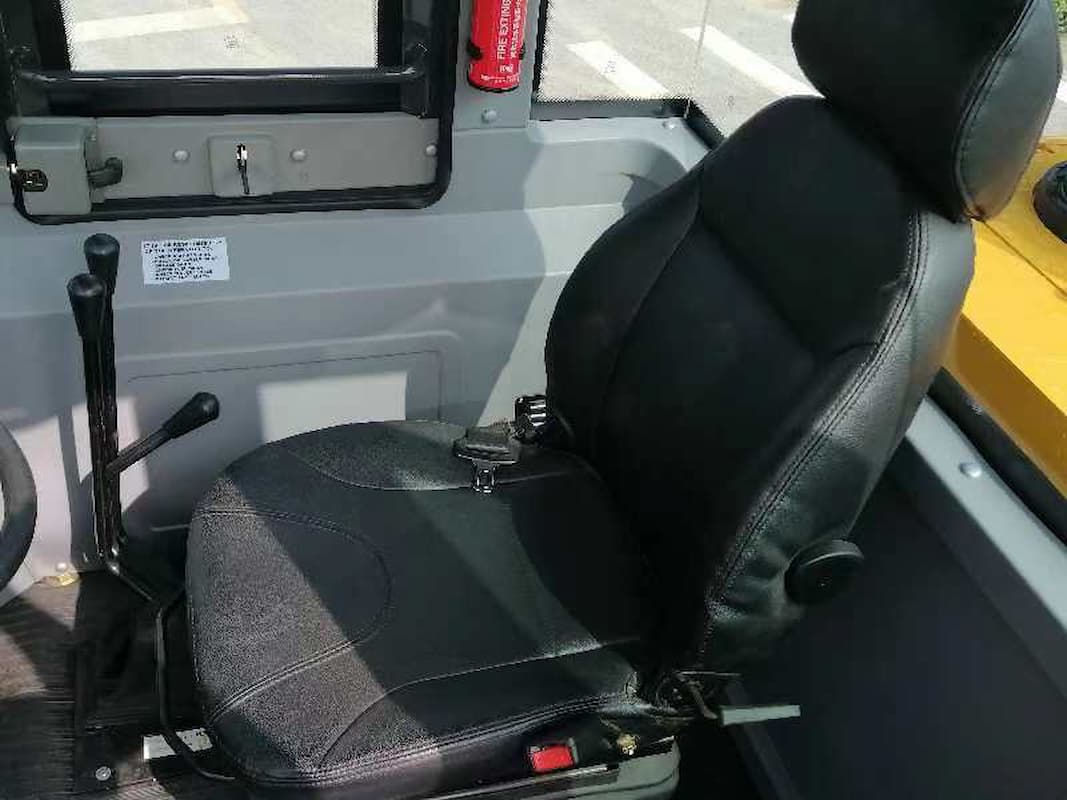

Operating type |
Mechanical single joystick |
Optional operating type |
Pilot control |
Optional configuration |
Air conditioner, rearview camera etc. |
Optional attachment |
Quick hitch, fork, log grapple etc. |
