Environmental protection and energy saving;Low noise;Low maintenance cost;Flexible operation;High energy utilization efficiency;High safety;
Item No. :
HTB50Lifting height :
3000MM (OPTIONAL)Lifting Capacity :
5000KGSOEM/ODM :
SUPPORTEnvironmental protection and energy saving: The electric forklift uses the battery as the power source and does not generate exhaust emissions. Therefore, it has no pollution to the environment and meets the current global requirements for environmental protection and energy conservation and emission reduction. It can be used in warehouses, factories and other indoor environments to better reflect its environmental protection characteristics.
Low noise: The noise of electric forklifts is much lower than that of fuel forklifts, which helps to improve the working environment, reduce noise pollution, and has a positive effect on the hearing protection of operators and other staff.
Low maintenance cost: The structure of the electric forklift is simple, and there are no fuel system, engine and other complex components, so it is relatively easy to maintain and the cost is low. Key components such as batteries and motors have a long service life, and the cost of replacing batteries gradually decreases with the progress of battery technology.
Flexible operation: Electric forklifts usually have good acceleration performance and maneuverability, can operate flexibly in narrow spaces, and improve the space utilization and work efficiency of warehouses or production lines.
High energy utilization efficiency: Electric forklifts can quickly achieve the required power when starting and accelerating, and have high energy conversion efficiency. Compared with the high energy consumption of fuel forklifts at low speed or idle speed, electric forklifts are more efficient in energy utilization.
High safety: Electric forklifts pay more attention to safety performance in design and manufacture, such as emergency braking system, anti-rollover protection, etc. At the same time, due to the low noise and stable operation, safety accidents caused by improper operation or negligence are also reduced.
Wide range of application: With the progress of battery technology and the popularization of charging facilities, the endurance of electric forklifts has been continuously improved, which can meet the needs of warehouses and production lines of various sizes. At the same time, electric forklifts are also suitable for a variety of terrain and working environments.
Policy support: In order to promote green logistics and sustainable development, many countries and regions have introduced relevant policies to support the application and promotion of new energy equipment such as electric forklifts.

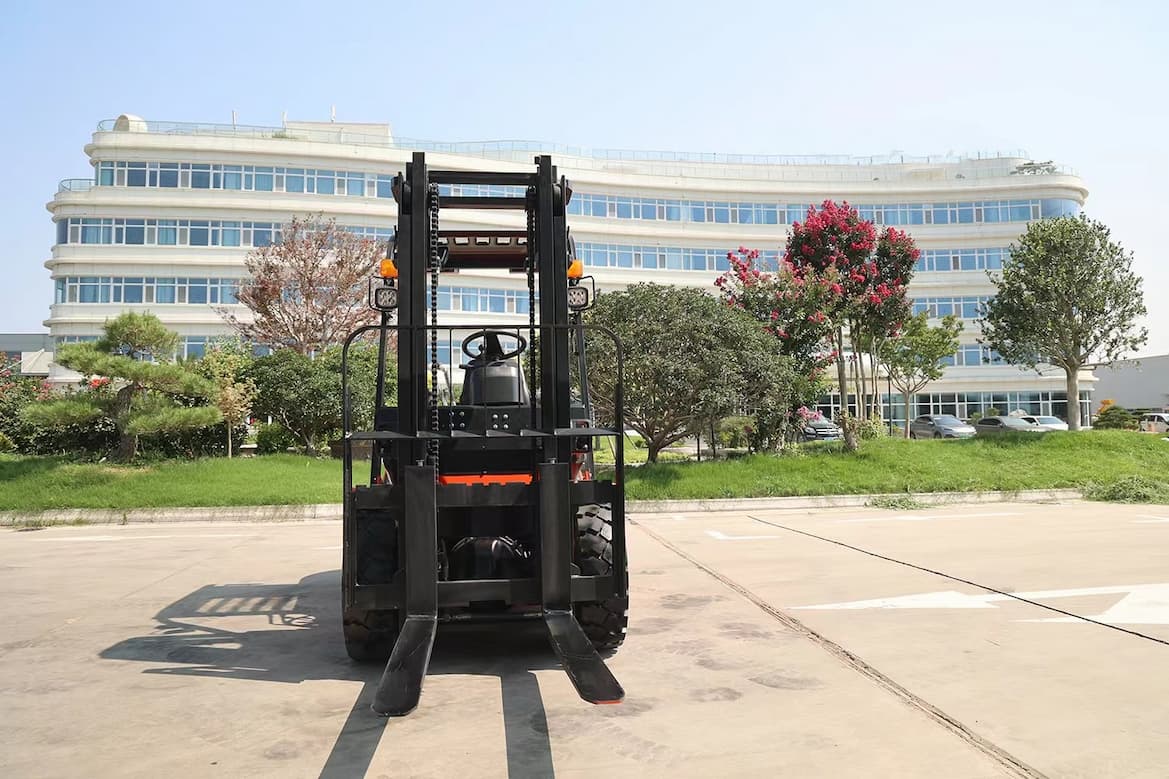

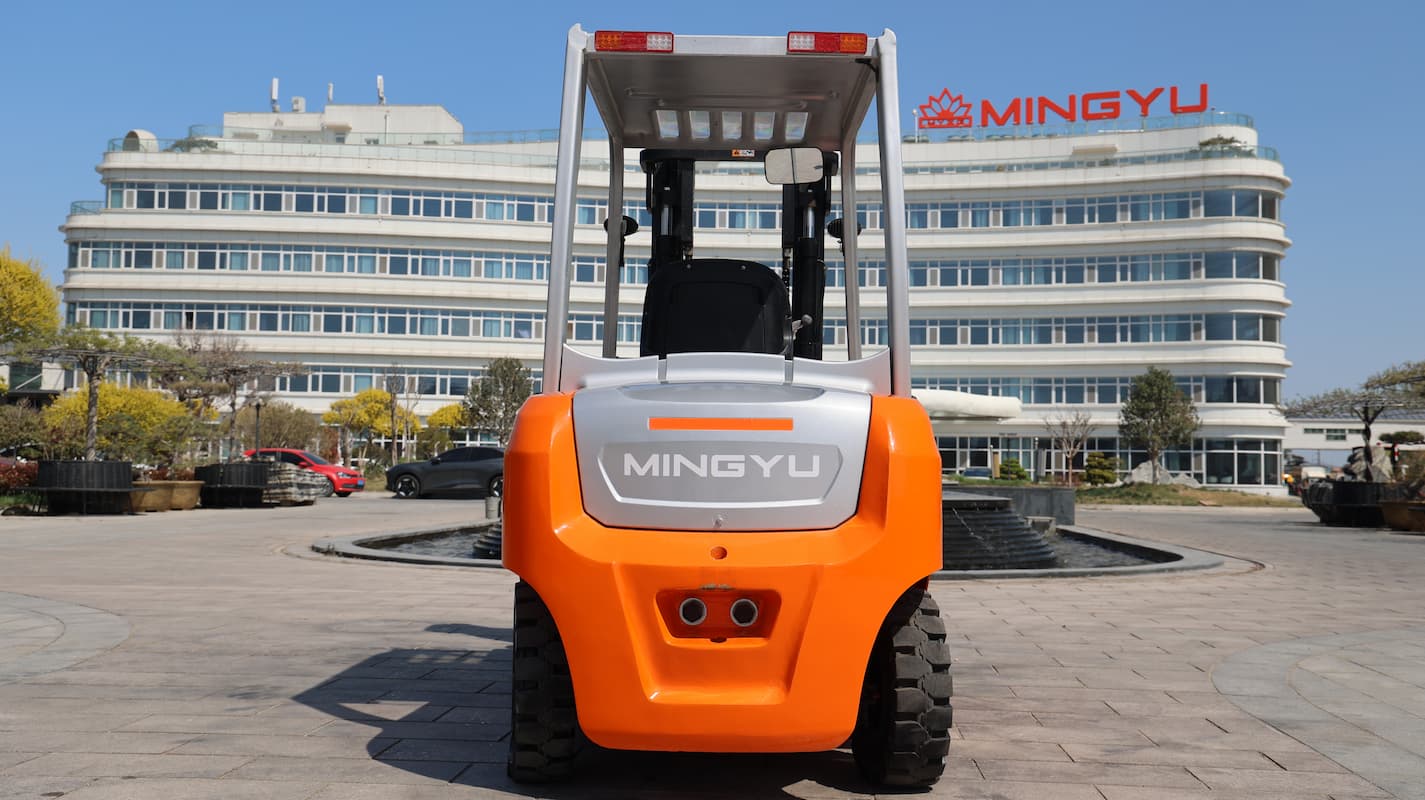

HTB50 Electric Forklift With Lithium Battery
|
|||||||
Power |
|
LI-ION |
|
Minimum turning radius |
mm |
2980 |
|
Rated lifting capacity |
KG |
5000 |
Minimum right angle channel width |
mm |
4797 |
||
Load centre distance |
mm |
500 |
Gantry inclination angle |
(°) |
6/12 |
||
Operation mode |
|
Driving |
Maximum lifting speed without load |
mm/s |
315 |
||
Overall length |
with fork |
mm |
4510 |
Maximum lifting speed under full load |
280 |
||
without fork |
mm |
3275 |
Maximum operating speed without load |
Km/h |
15 |
||
Width |
mm |
1430 |
Maximum operating speed under full load |
13 |
|||
Height |
Height of no-lifting |
mm |
2280 |
Maximum climbing slope under full load |
% |
15 |
|
Height of roof gard |
mm |
2175 |
Forklift weight |
Kg |
5740 |
||
Maxium height during operation |
mm |
4210 |
Tyre (optional) |
|
Pneumatic OR solid tyre |
||
Wheelbase |
mm |
2215 |
|
|
|
||
Front overhang |
mm |
517 |
Front tyre size |
|
250-15 |
||
Rear overhang |
mm |
560 |
Rear tyre size |
|
6.50-10 |
||
Front track width |
mm |
1150 |
Brakes |
|
Foot brake |
||
Rear track width |
mm |
1020 |
Park brakes |
|
Hand brake |
||
Minium ground clearance |
mm |
180 |
Battery voltage/capaci |
V/AH |
153.6V/175AH |
||
Standard lifting height |
mm |
3000 |

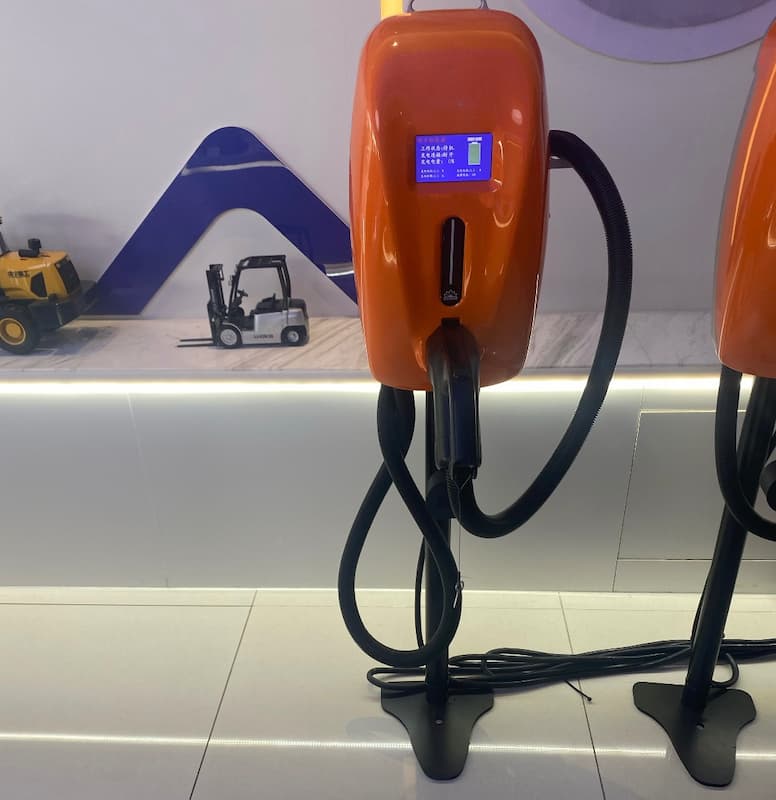

Charger |
V/A |
153.6V/100A |
||
Free lifting height |
mm |
45 |
Drive motor power |
Kw |
21.6 |
||
Fork adiustment range |
mm |
300-1380 |
Oi1 pump motor power |
|
22.6 |
