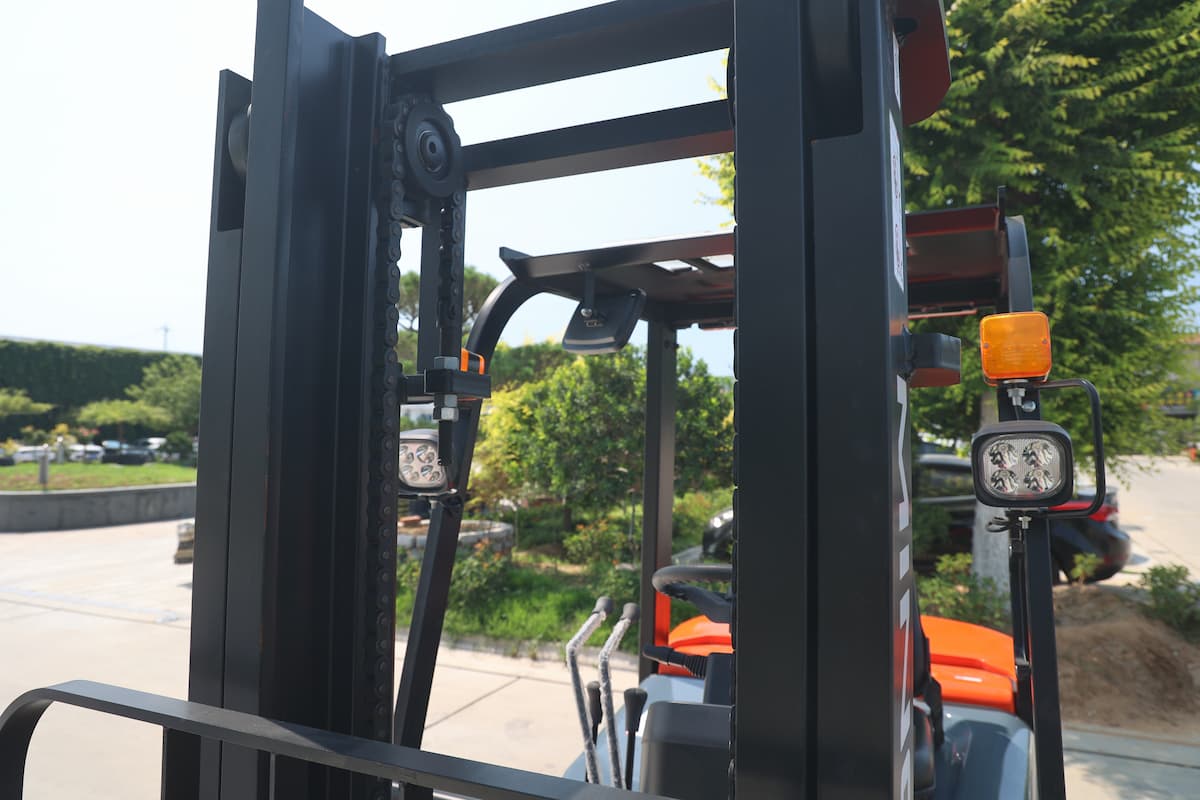

Wide view mast design, ensure the driver has an excellent view, which makes loading and unloading operations more secure and efficient;
All accessories like engine, gear box are support by domestic and world famous brand, high quality, reliable after-sales;
Item No. :
HTM30Lifting height :
3000MMLifting Capacity :
3000KGSOEM/ODM :
SUPPORT|
HTM30 Technical Parameter |
||||||
|
Power |
|
Diesel oil |
Minimum turning radius |
mm |
2520 |
|
|
Rated lifting capacity |
KG |
3000 |
Minimum right angle channel width |
mm |
4277 |
|
|
Load centre distance |
mm |
500 |
Gantry inclination angle |
(°) |
6/12 |
|
|
Operation mode |
|
Driving style |
Maximum lifting speed without load |
mm/s |
480 |
|
|
Overall length |
with fork |
mm |
3870 |
Maximum lifting speed under full |
|
440 |
|
|
without fork |
mm |
2695 |
Maximum operating speed without |
Km/h |
20 |
|
Width |
mm |
1228 |
Maximum operating speed under full load |
|
20 |
|
|
Height |
Height of no-lifting |
mm |
2140 |
Maximum climbing slope under full load |
% |
20 |
|
|
Height of roof gard |
mm |
2100 |
Forklift weight |
Kg |
4290 |
|
|
Maxium height during operation |
mm |
4262 |
|
|
|
|
Wheelbase |
mm |
1700 |
Tyre (optional) |
|
Pneumatic OR solid tyre |
|
|
Front overhang |
mm |
457 |
Front tyre size |
|
28x9-15 |
|
|
Rear overhang |
mm |
500 |
Rear tyre size |
|
6.50-10 |
|
|
Front track width |
mm |
1000 |
Brakes |
|
Foot brake |
|
|
Rear track width |
mm |
980 |
Park brakes |
|
Hand brake |
|
|
Ground clearance |
mm |
165 |

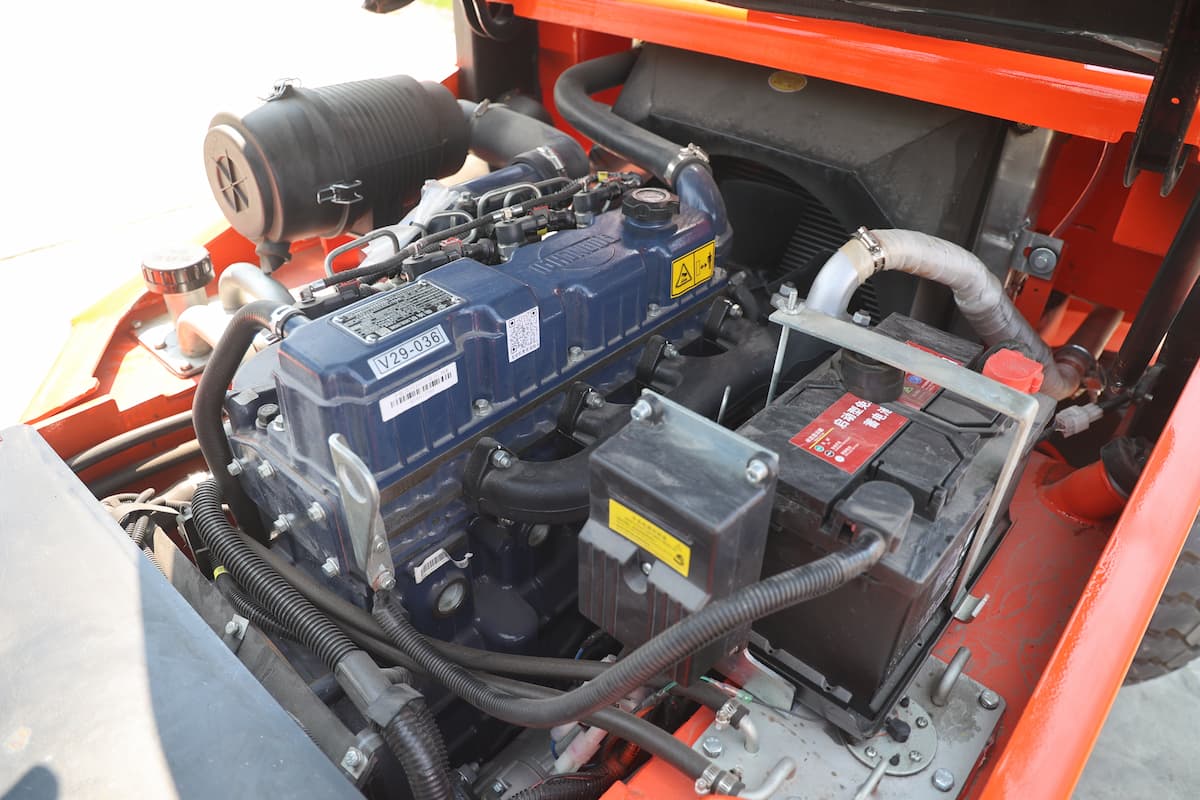

Engine model |
|
Quanchai Guosi |
|
|
Lifting height |
mm |
3000 |
Rated power |
kw |
36.8 |
|
|
Free lifting height |
mm |
65 |
Rated SPEED |
r/min |
2500 |
|
|
Fork adjustment range |
mm |
260-1100 |
|
|
|
|
