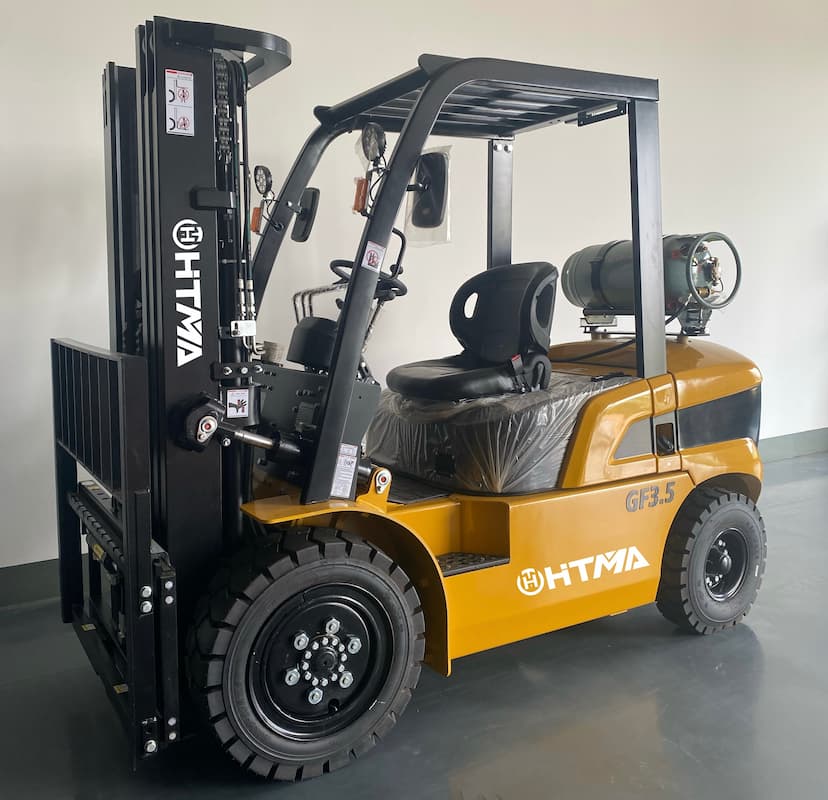

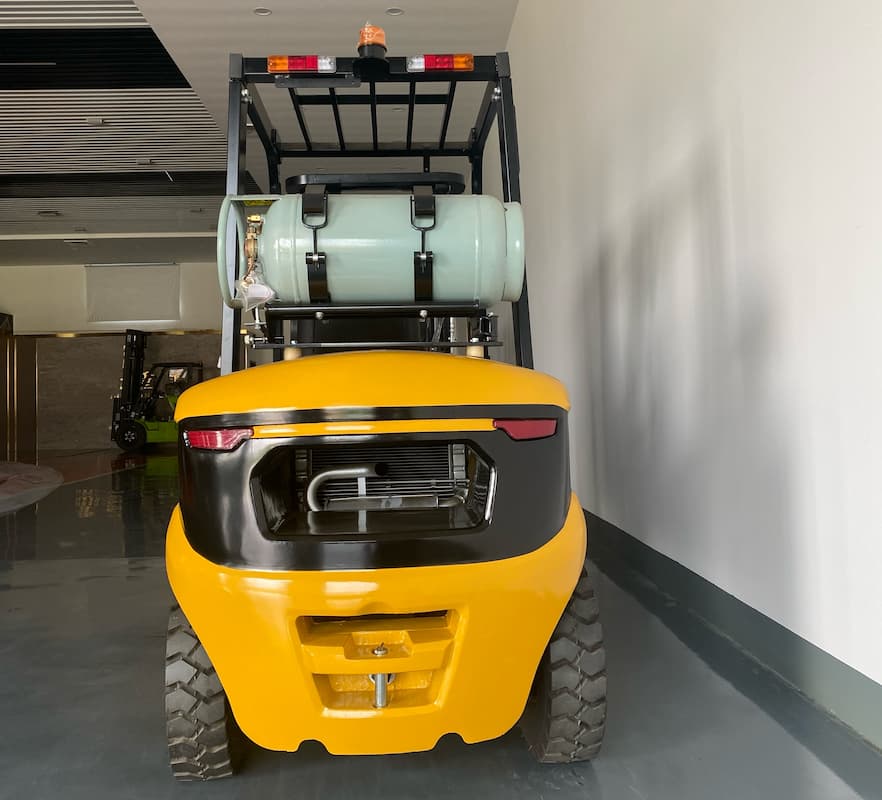

HTG35 with short wheelbase design, large corner steering axle, front and rear wheels standard with solid tires, effectively reduce the turning radius. The height can meet the requirements of European and American customers.LPG Forklift is equipped with a choice of engines that meet stringent environmental standards. You can opt for the original Japanese Nissan engine, renowned for its reliability and performance, or the USA PSI engine, which is equally robust and compliant with EPA regulations. For operator comfort and safety, the LTMG LPG Forklift can be fitted with an original Toyota seat that offers superior support and adjustability. The inclusion of a safety belt ensures that the operator is secure during operation, reducing the risk of accidents.
Item No. :
HTG35Load Capacity :
3500KGLifting height :
3000MMOEM/ODM :
SUPPORT|
HTG35 Technical Parameter |
||||||
|
Power |
|
LPG&Gasonline |
Minimum turning radius |
mm |
2515 |
|
|
Rated lifting capacity |
KG |
3500 |
Minimum right angle channel width |
mm |
4337 |
|
|
Load centre distance |
mm |
500 |
Gantry inclination angle |
(°) |
6/12 |
|
|
Operation mode |
|
Driving style |
Maximum lifting speed without load |
mm/s |
480 |
|
|
Overall length |
with fork |
mm |
3825 |
Maximum lifting speed under full |
370 |
|
|
without fork |
mm |
2755 |
Maximum operating speed without |
Km/h |
20 |
|
|
Width |
mm |
1225 |
Maximum operating speed under full load |
20 |
||
|
Height |
Height of no-lifting |
mm |
2140 |
Maximum climbing slope under full load |
% |
20 |
|
Height of roof gard |
mm |
2110 |
Forklift weight |
Kg |
4650 |
|
|
Maxium height during operation |
mm |
4262 |
|
|
|
|
|
Wheelbase |
mm |
1760 |
Tyre (optional) |
|
Pneumatic OR solid tyre |
|
|
Front overhang |
mm |
485 |
Front tyre size |
|
28x9-15 |
|
|
Rear overhang |
mm |
607 |
Rear tyre size |
|
6.50-10 |
|
|
Front track width |
mm |
1000 |
Brakes |
|
Foot brake |
|
|
Rear track width |
mm |
980 |
Park brakes |
|
Hand brake |
|
|
Ground clearance |
mm |
165 |
Engine model |
|
NISSAN |
|
|
Lifting height |
mm |
3000 |
Rated power |
kw |
35.6 |
|
|
Free lifting height |
mm |
70 |
Rated SPEED |
r/min |
2500 |
|
|
Fork adjustment range |
mm |
260-1100 |
|
|
|
|
