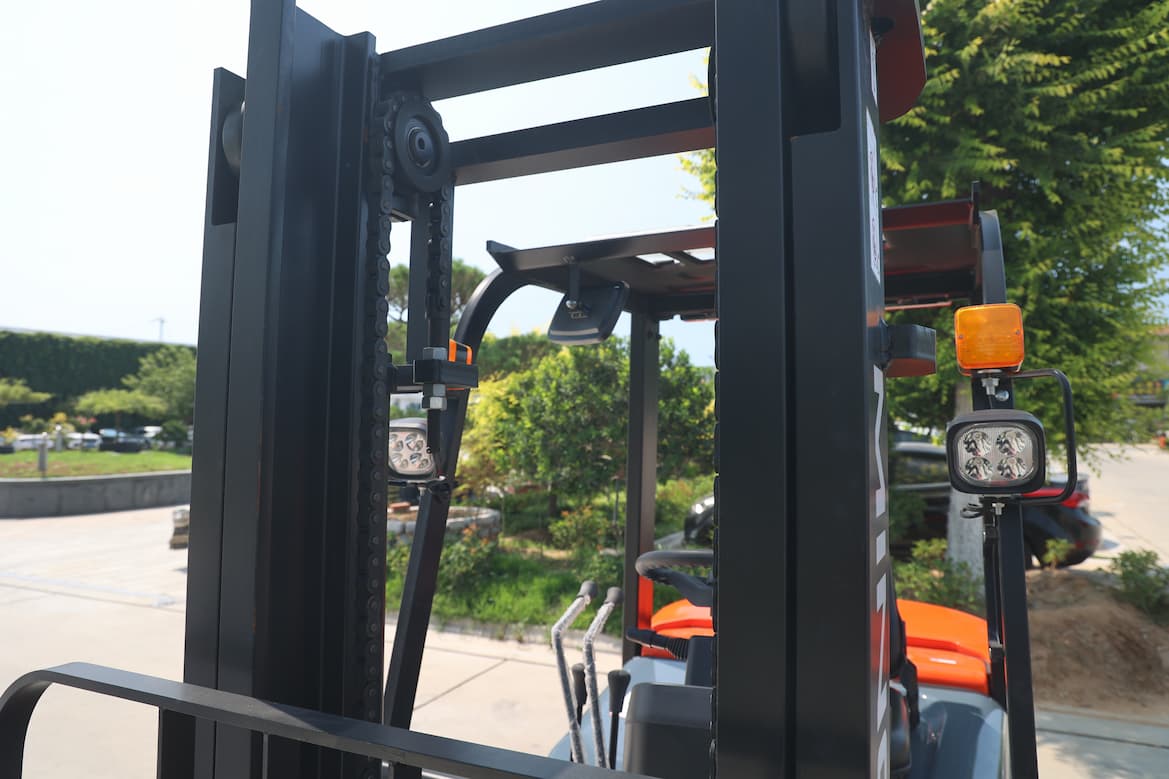

Wide view mast design, ensure the driver has an excellent view, which makes loading and unloading operations more secure and efficient;
All accessories like engine, gear box are support by domestic and world famous brand, high quality, reliable after-sales;
Item No. :
HTM50Lifting height :
3000MMLifting Capacity :
5000KGSOEM/ODM :
SUPPORT|
HTM50 Technical Parameter |
|||||||
|
Power |
|
Diesel oil |
|
Minimum turning radius |
mm |
3170 |
|
|
Rated lifting capacity |
KG |
5000 |
|
Minimum right angle channel width |
mm |
4960 |
|
|
Load centre distance |
mm |
500 |
|
Gantry inclination angle |
(°) |
6/12 |
|
|
Operation mode |
|
Driving |
|
Maximum lifting speed without load |
mm/s |
490 |
|
|
Overall length |
with fork |
mm |
4540 |
|
Maximum lifting speed under full load |
|
400 |
|
|
without fork |
mm |
3330 |
|
Maximum operating speed without load |
Km/h |
21 |
|
Width |
mm |
1450 |
|
Maximum operating speed under full load |
|
20 |
|
|
Height |
Height of no-lifting |
mm |
2298 |
|
Maximum climbing slope under full load |
% |
20 |
|
|
Height of roof gard |
mm |
2220 |
|
Forklift weight |
Kg |
5900 |
|
|
Maxi height during operation |
mm |
4210 |
|
Tyre (optional) |
|
Pneumatic OR solid tyre |
|
Wheelbase |
mm |
2300 |
|
|
|
|
|
|
Front overhang |
mm |
490 |
|
Front tyre size |
|
250-15 |
|
|
Rear overhang |
mm |
570 |
|
Rear tyre size |
|
6.50-10 |
|
|
Front track width |
mm |
1230 |
|
Brakes |
|
Foot brake |
|
|
Rear track width |
mm |
1000 |
|
Park brakes |
|
Hand brake |
|
|
Minium ground clearance |
mm |
180 |
|

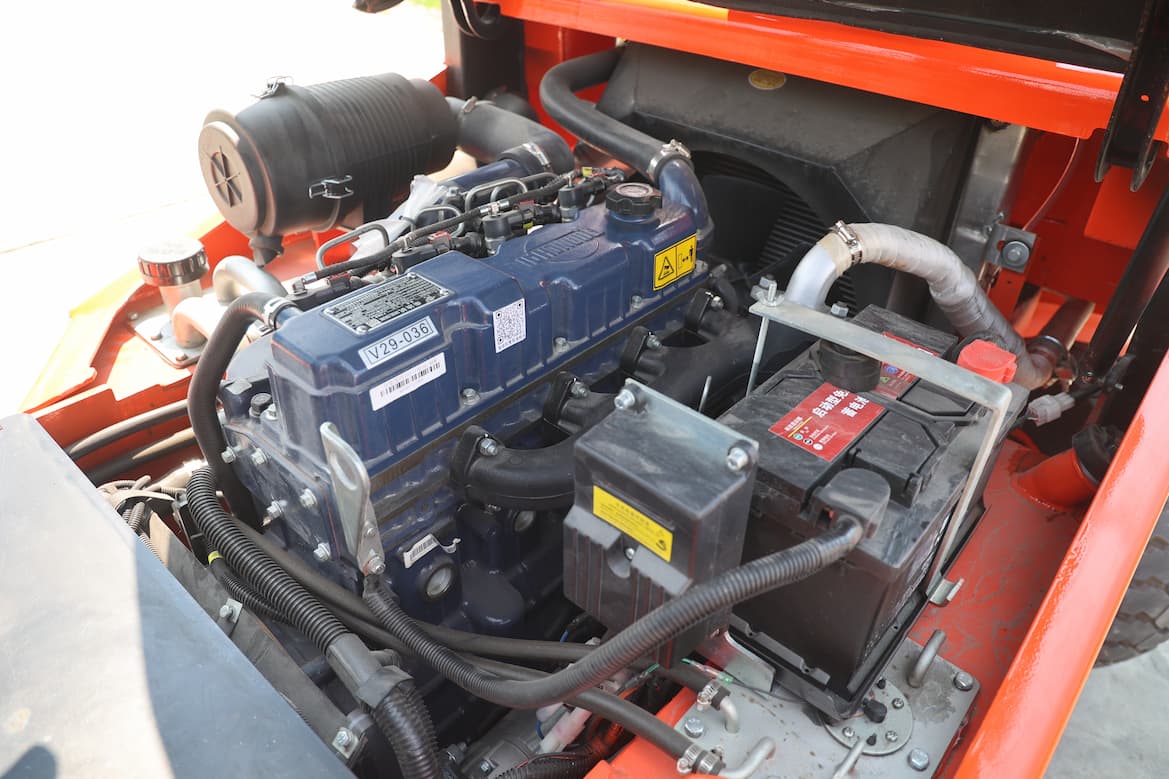

Engine model |
|
Quanchai |
|
|
Standard lifting height |
mm |
3000 |
|
Rated power |
Kw |
89 |
|
|
Free lifting height |
mm |
40 |
|
Rated SPEED |
r/min |
2400 |
|
|
Fork adiustment range |
mm |
300-1380 |
|
|
|
|
|
