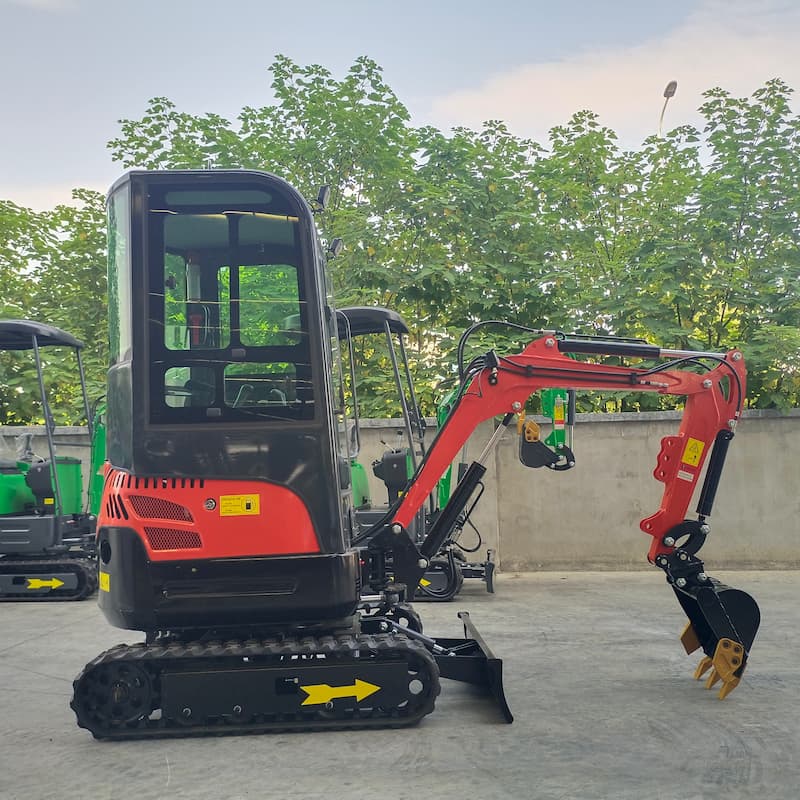

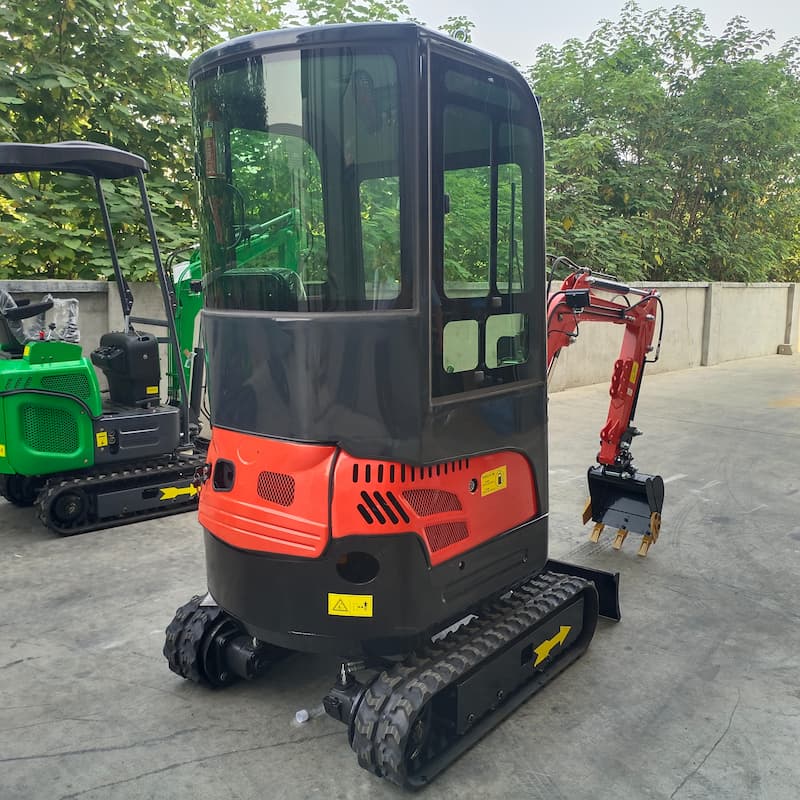

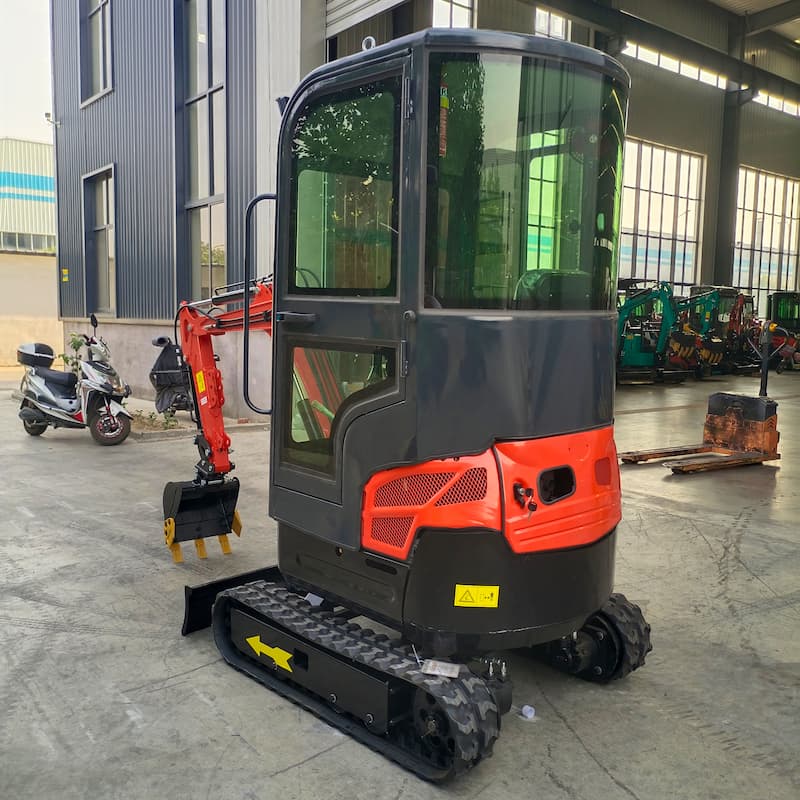

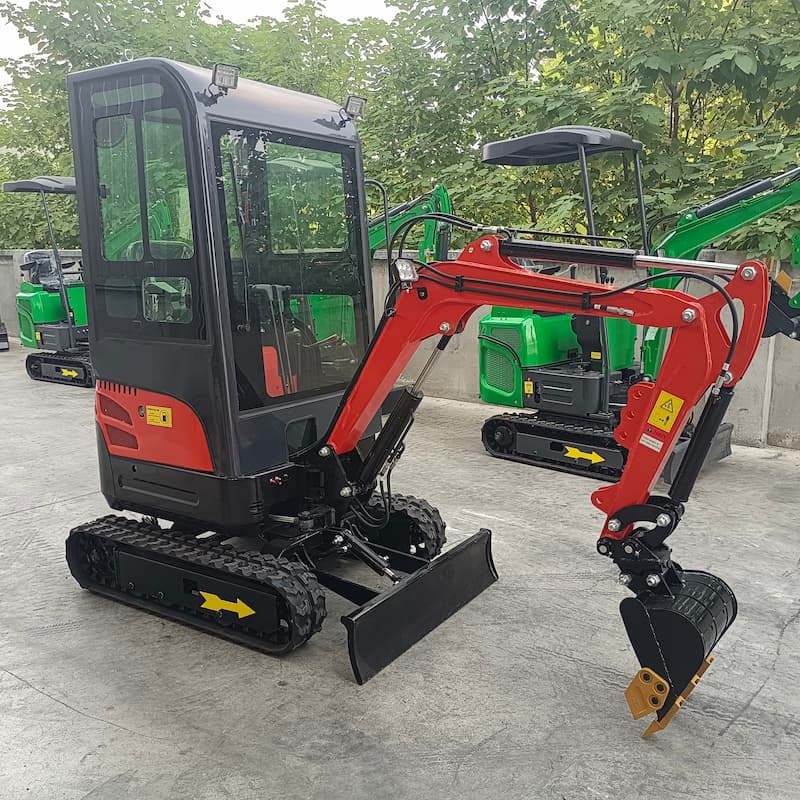

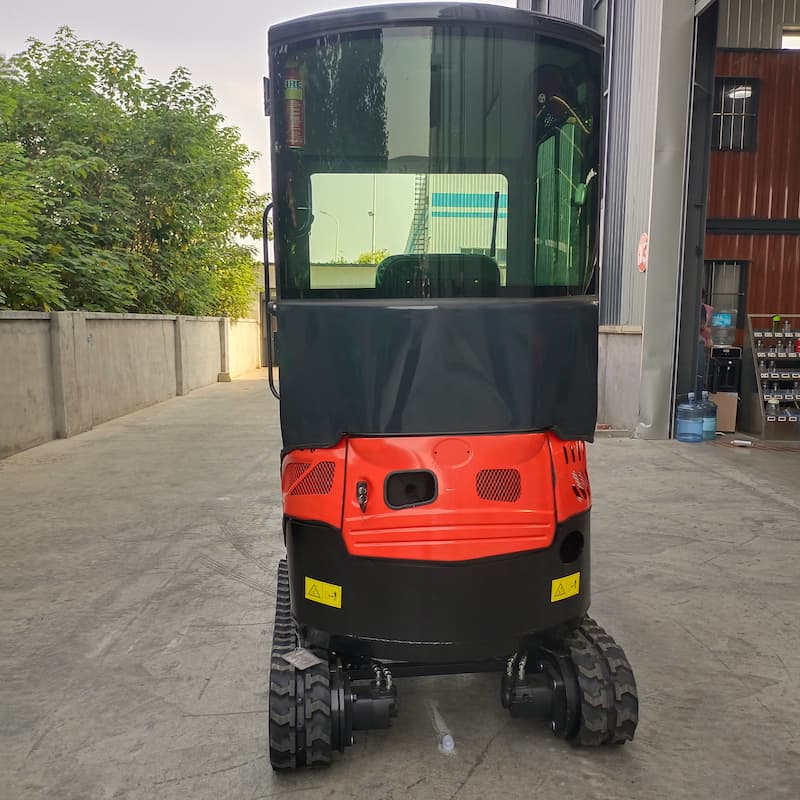

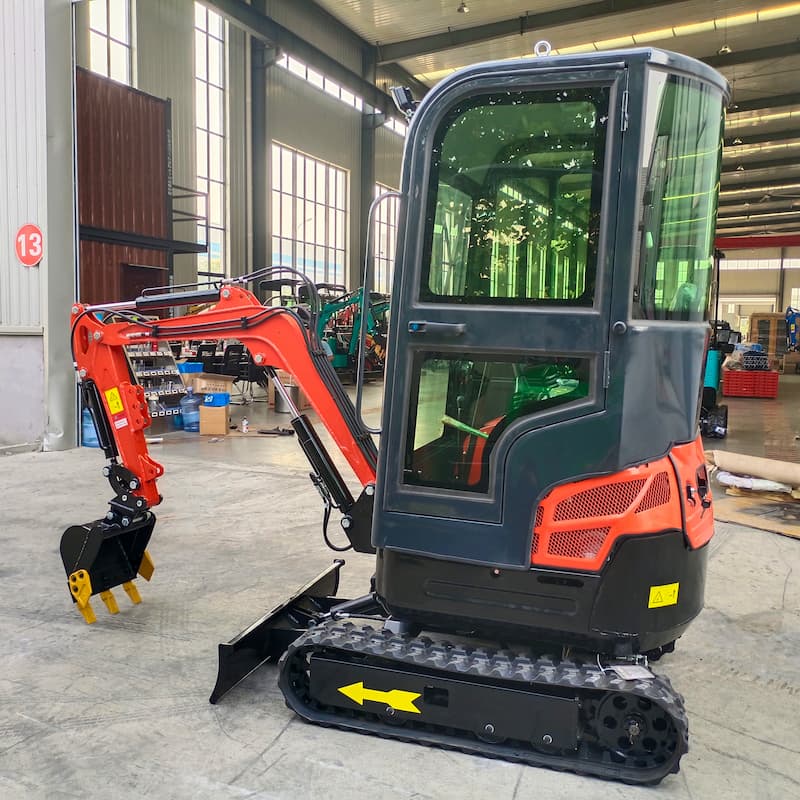

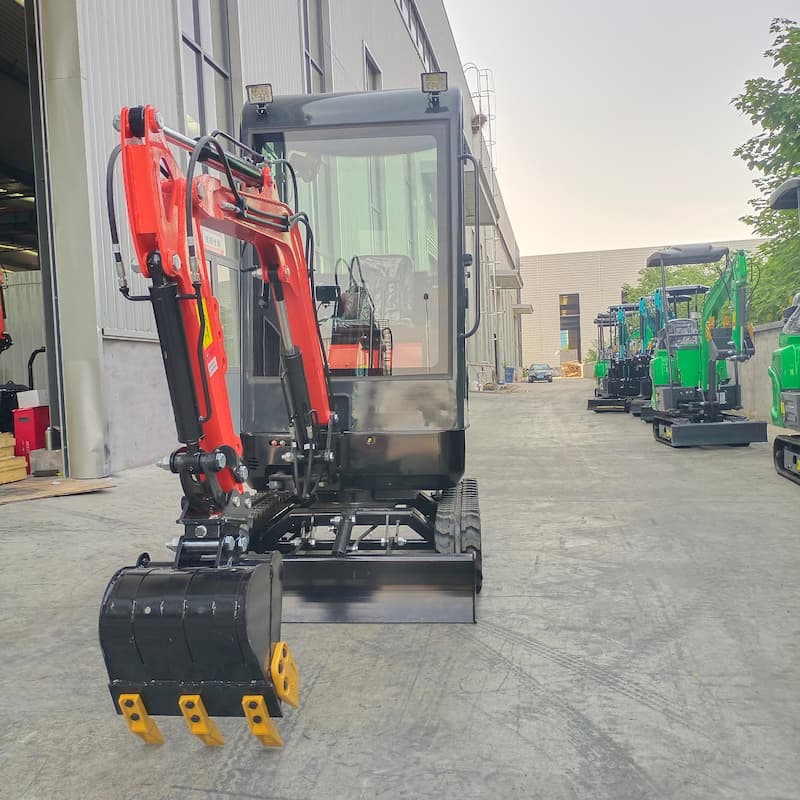

Discover the power of HTMG mini crawler excavator. Equipped with an imported Japanese engine, versatile standard configuration, and multi-function capabilities, it's the ideal solution for a range of applications, such as tunnel construction, horticulture, municipal engineering and so on.
Item No. :
HT8015Operating Weight :
1500KGSBucket Capacity :
0.025CMBOEM/ODM :
SUPPORT| HT8015 mini excavator technical parameter | |
| Specifications | |
| Engine Model | KUBOTA D722 |
| Emisssion standard | EUPO5/EPA |
| Power(KW) | 10.2 |
| Rotation speed(rpm) | 2500 |
| Track type (CM) | 180*72*41 |
| Bucket capacity (m³) | 0.025 |
| Machine size | |
| Dimension Length*Width*Height(mm) | 3100*1100*2300 |
| Height with cabin(mm) | 2350 |
| Minimum length(mm) | 2450 |
| Minimum ground clearance(mm) | 140 |
| Working range | |
| Max. Digging Height (mm) | 2600 |
| Max. Dumping Height (mm) | 1750 |
| Max. Digging Depth (mm) | 1800 |
| Max. Digging Radius (mm) | 3150 |
