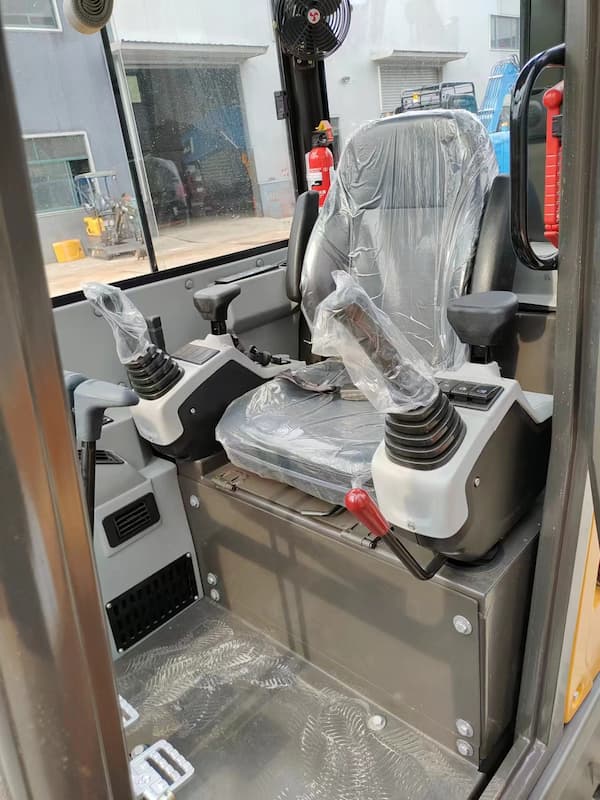

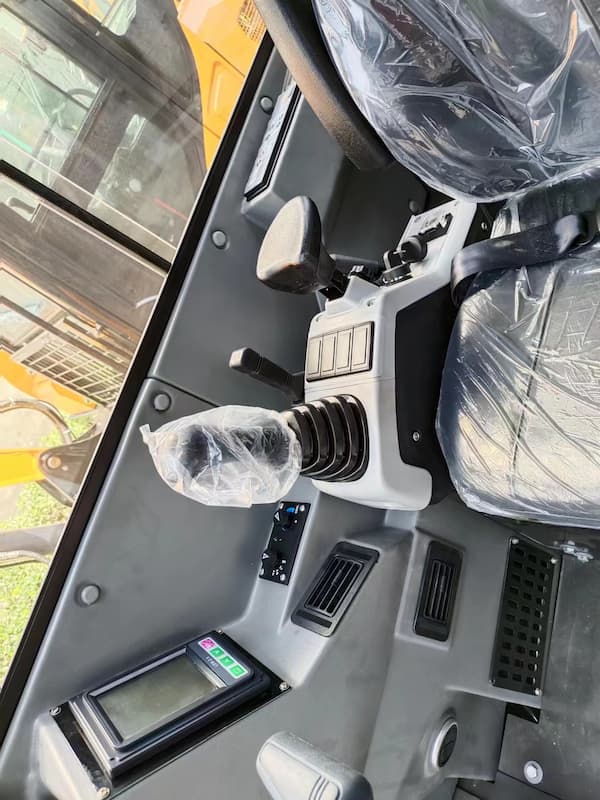

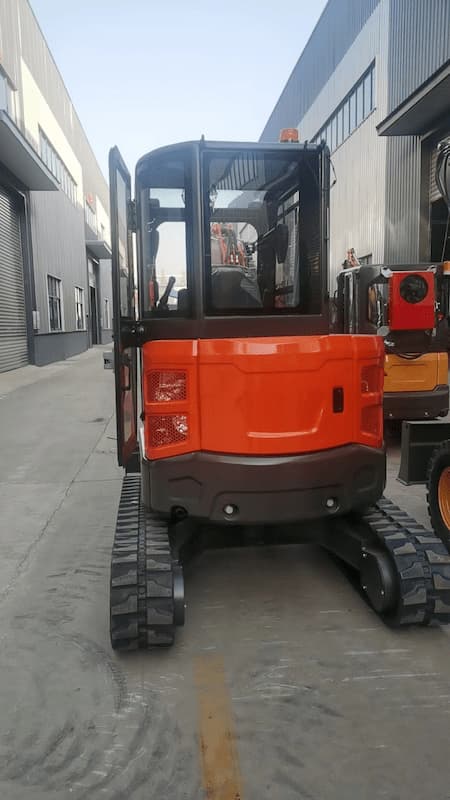

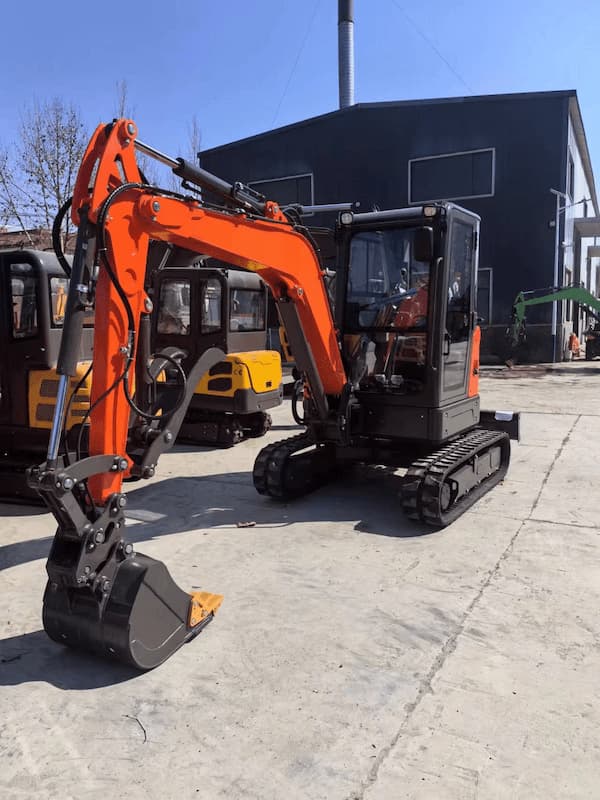

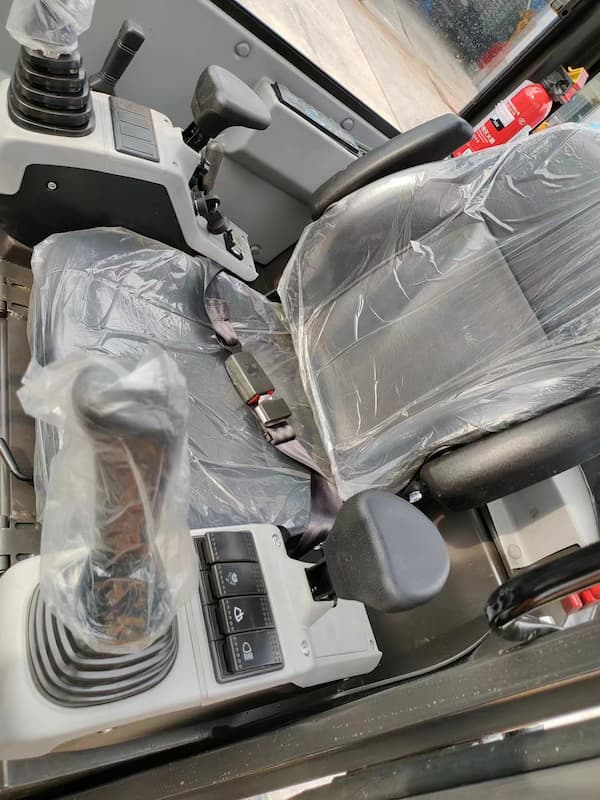

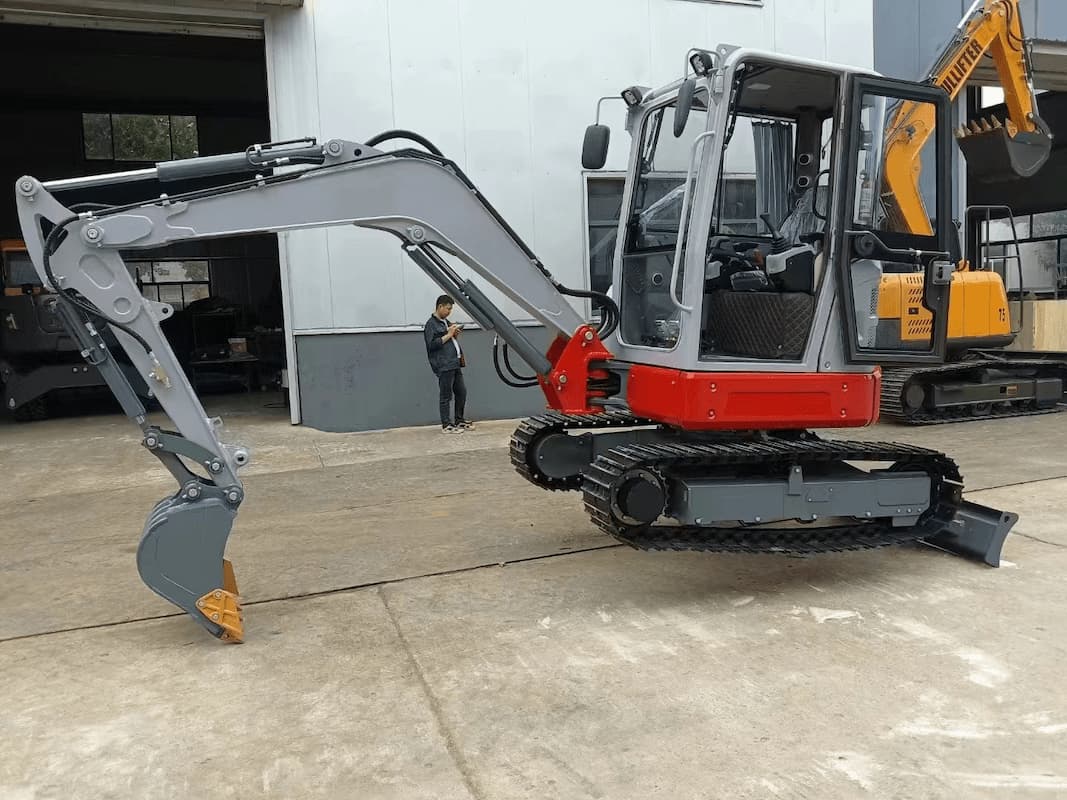

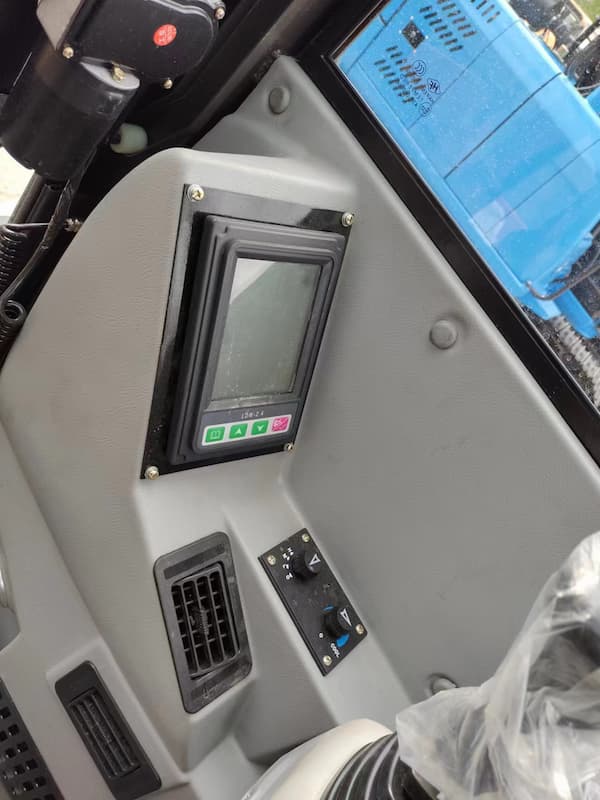

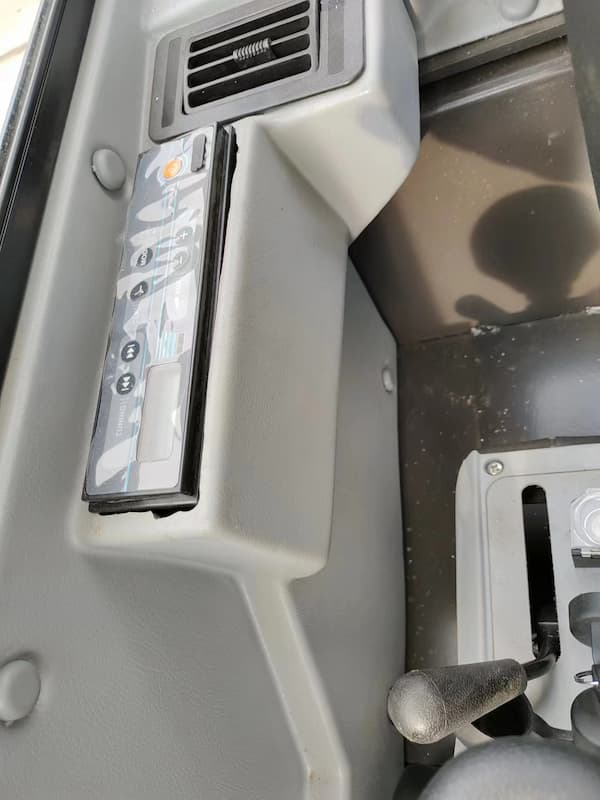

Our small excavator features: The chassis can be flexibly matched, the structure is simple, the steering is light,
the power transmission is stronger and more fuel-efficient, and the luxurious cab is more comfortable;
Optional with tail or no-tail to meet the construction needs under different conditions.
With mining, broken, clear hooks, drilling, earth multi-function, can quickly replace the accessories, machine utilization greatly improved.
Item No. :
HT8040Operating Weight :
3810kgBucket Capacity :
0.12m³OEM/ODM :
SUPPORT4 Ton Crawler Technical Parameters
|
Performance Parameters |
Unit |
HT8040 |
|
Operating Weight |
Kg |
3810 |
|

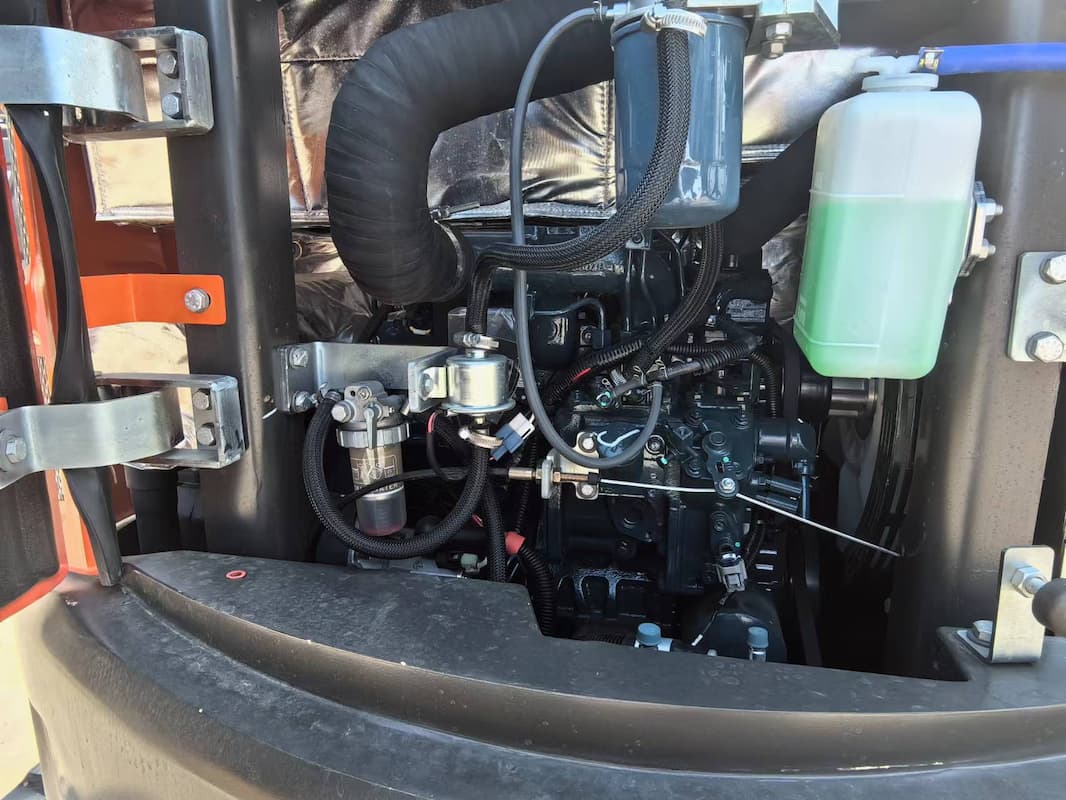

Engine Model |
|
Kubota D1703 |
|
Rated Power |
Kw |
18.5KW/2200rpm |
|
Bucket Capacity |
m³ |
0.12 |
|
Max Digging Force |
Kn |
30.4 |
|
System Working Pressure |
Mpa |
22.5 |
|
Swing Speed |
rpm |
0-11 |
|
Traveling Speed |
km/h |
2.4~4.4 |
|
Gradeability |
° |
58 |
|
Ground Pressure |
Kpa |
32 |
|
Fuel Tank capacity |
L |
42 |
|
Hydraulic Tank capacity |
L |
48.5 |
|
Engine oil capacity |
L |
7 |
|
|
|
|
|
Operating Range |
|
|
|
Max. Digging Radius |
mm |
5480 |
|
Max. Digging Depth |
mm |
3208 |
|
Max. Digging Height |
mm |
4800 |
|
Max. Dumping Height |
mm |
3406 |
|
Max. vertical digging depth |
mm |
3208 |
|
|
|
|
|
Overall Dimensions |
|
|
|
Overall Length |
mm |
4915 |
|
Overall Width |
mm |
1720 |
|
Overall Height |
mm |
2525 |
|
Min. Ground Clearance |
mm |
295 |
|
Track Width |
mm |
300 |
