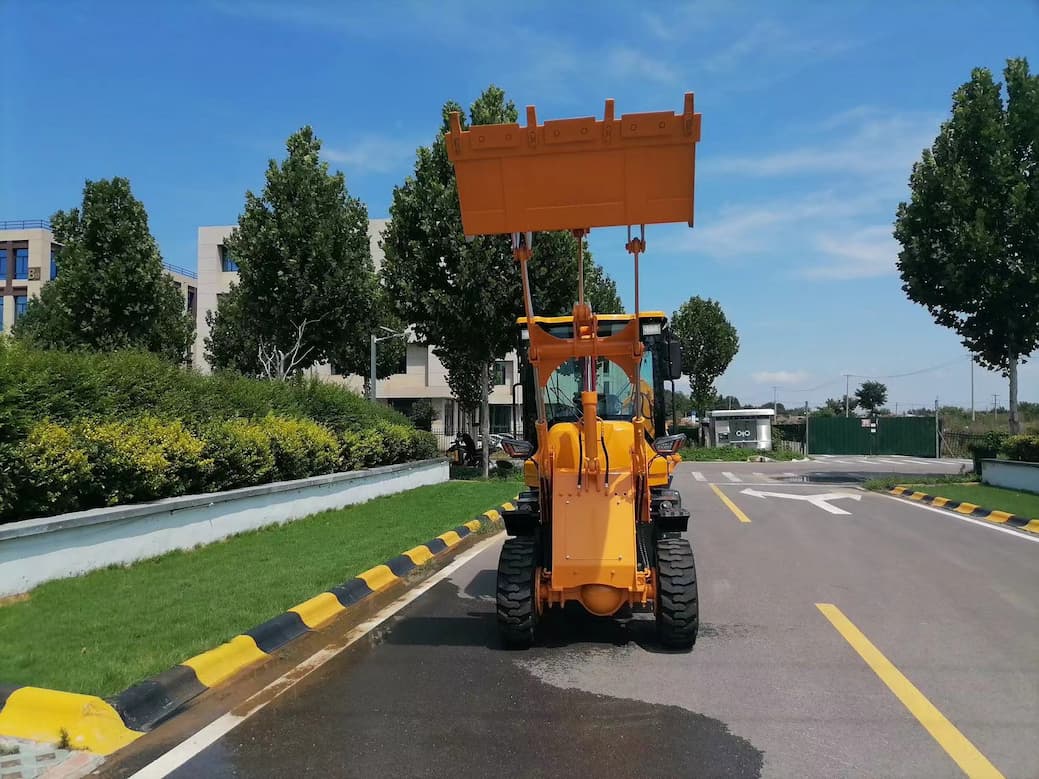

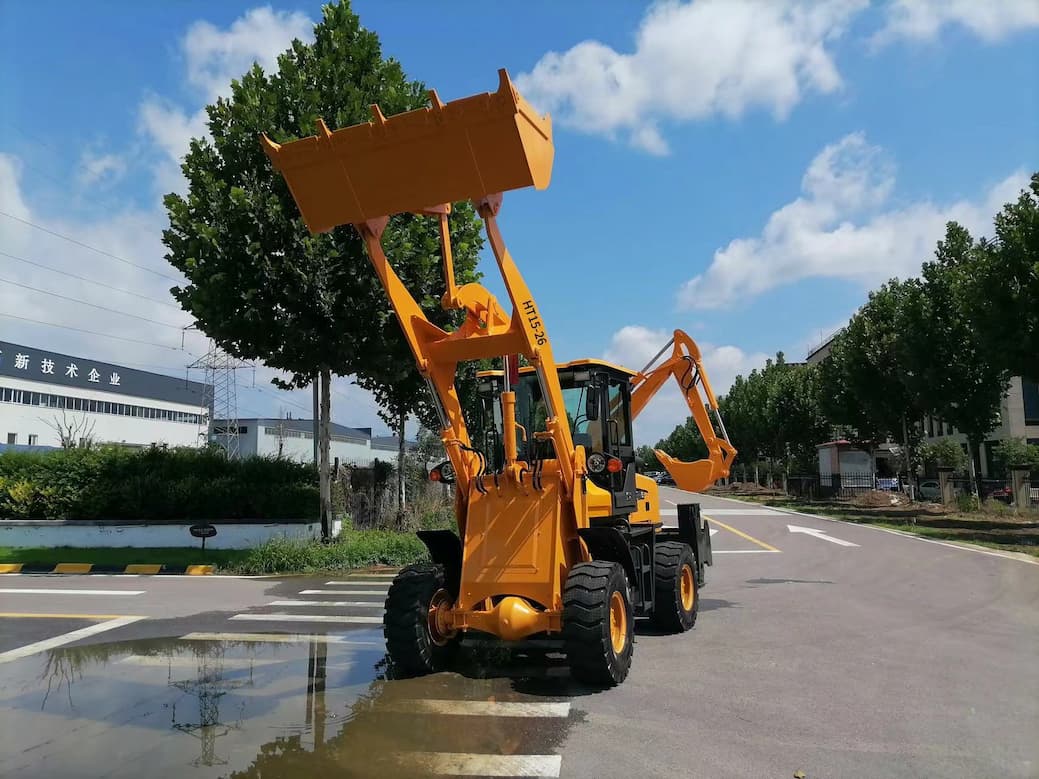

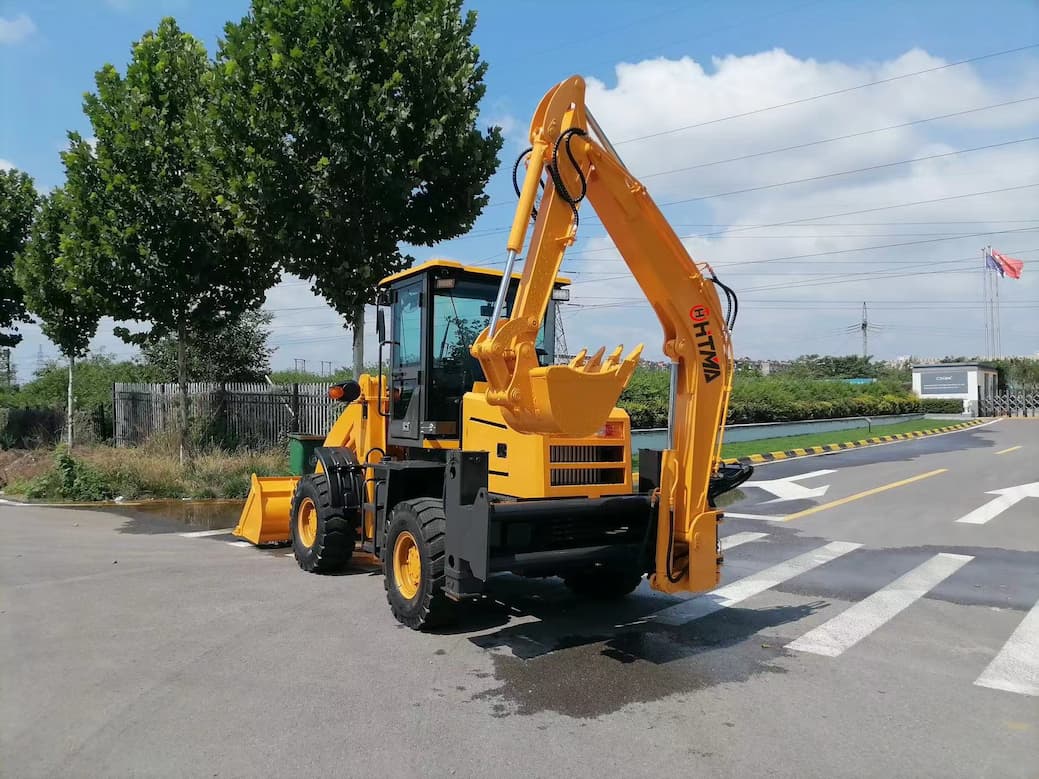

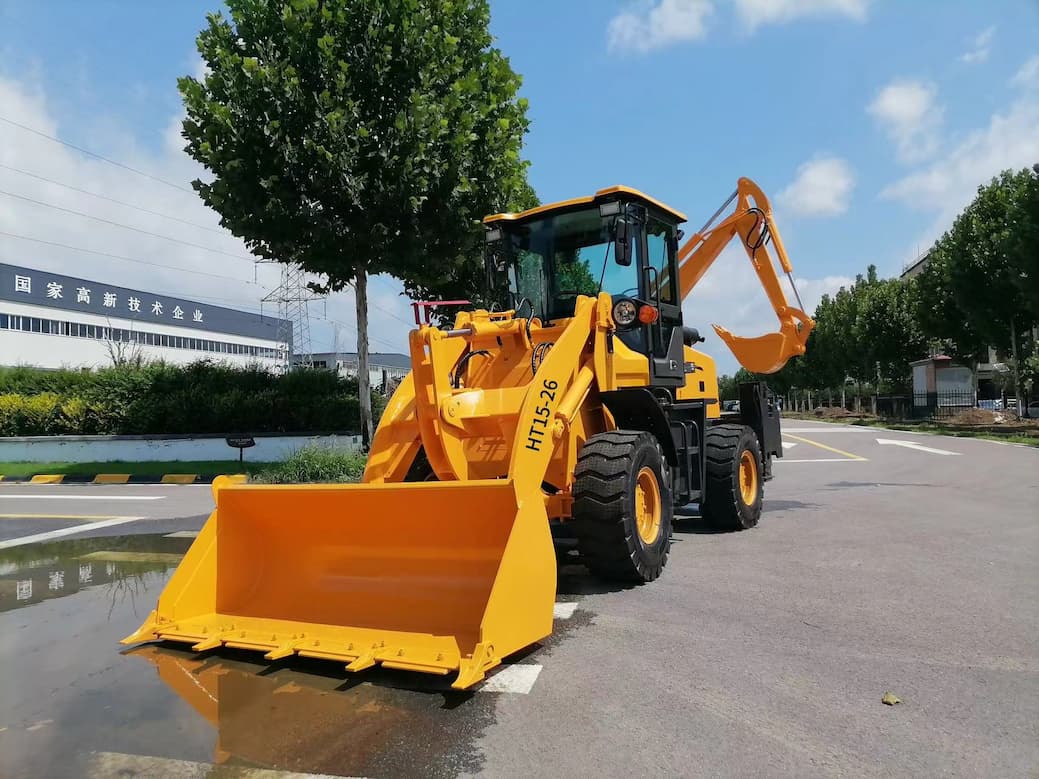

Digger loader is a cost-effective small multifunctional construction machinery, which is widely used in various construction projects such as highway construction and maintenance, cable laying, power and airport engineering, municipal construction, excavation, and stone quarrying in both urban and rural areas.
Item No. :
HT15-26Operating Weight :
4800kgsBackhoe Capacity :
0.2m³Bucket Capacity :
0.7m³OEM/ODM :
SUPPORTBackhoe Loader with A OR H LEG
Technical Parameter
|
Model |
HT15-26 |
|
Dimensions (mm) |
5800*1850*2750 |
|
Wheelbase (mm) |
2315 |
|
wheel tread(mm) |
1500 |
|
Min. ground clearance (mm) |
220 |
|
performance parameters |
|
|
System pressure (MPa) |
16 |
|
Machine weight (Kg) |
4800 |
|
Max. speed (Km/h) |
26 |
|
Max. climbing capacity (°) |
25 |
|
Min. turning radius (mm) |
4000 |
|
Digging parameters |
|
|
Max. digging depth (mm) |
2700 |
|
Dig unloading height (mm) |
2200 |
|
Max. digging radius (mm) |
4600 |
|
Bucket width (mm) |
500 |
|
Bucket capacity (m3) |
0.2 |
|
max. digging height (mm) |
4200 |
|
Maximum digging force (kN) |
28 |
|
Rotary Angle of excavator (°) |
180 |
|
Loading parameters |
|
|
Max. unloading height (mm) |
3300 |
|
Max. unloading distance (mm) |
850 |
|
Bucket width (mm) |
1900 |
|
Bucket capacity (m³) |
0.7 |
|
Max. loading lifting height (mm) |
4200 |
|
Max. breakout force (kN) |
36 |
|
Forward shovel action time (S) |
12 |
|
Engine |
|
|
Model |
Yunnei YN27GBZ |
|
Type |
Turbocharged, 4 strokes |
|
Rate power (KW) |
58 |
|
Rate speed (r/min) |
2400 |
|
Cylinders-inside diameter |
4-90 |
|
Transmission system |
|
|
Gearbox |
Fixed shaft power shift |
|
Number of gear |
2 first/ 2 after |
|
Hydraulic torque converter |
ZL29A |
|
Steering system |
|
|
Type |
Hinged full hydraulic steering |
|
Steering Angle (°) |
33 |
|
Bridge |
|
|
Type |
Hub reduction |
|
Tire |
|
|
Specifications |
23.5-16 |
|
Front wheel pressure (kPa) |
250 |
|
Rear wheel pressure (kPa) |
250 |
|
Crane brake |
Oil brake drum brake |
|
The parking brake |
Manul |
|
Oil amount |
|
|
Fuel tank (L) |
40 |
|
Hydraulic tank (L) |
40 |
|
Other |
|
|
Drive type |
Four-wheel drive |
|
Variable speed type |
Hydraulic variable speed |
|
Braking distance (mm) |
450 |
