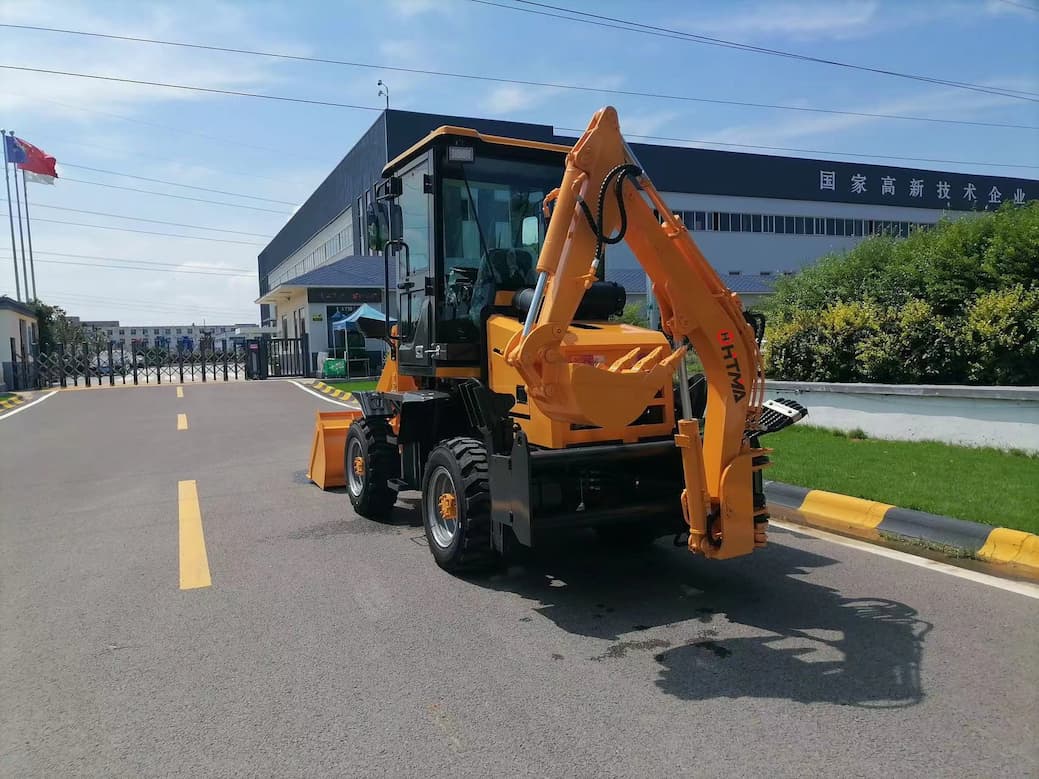

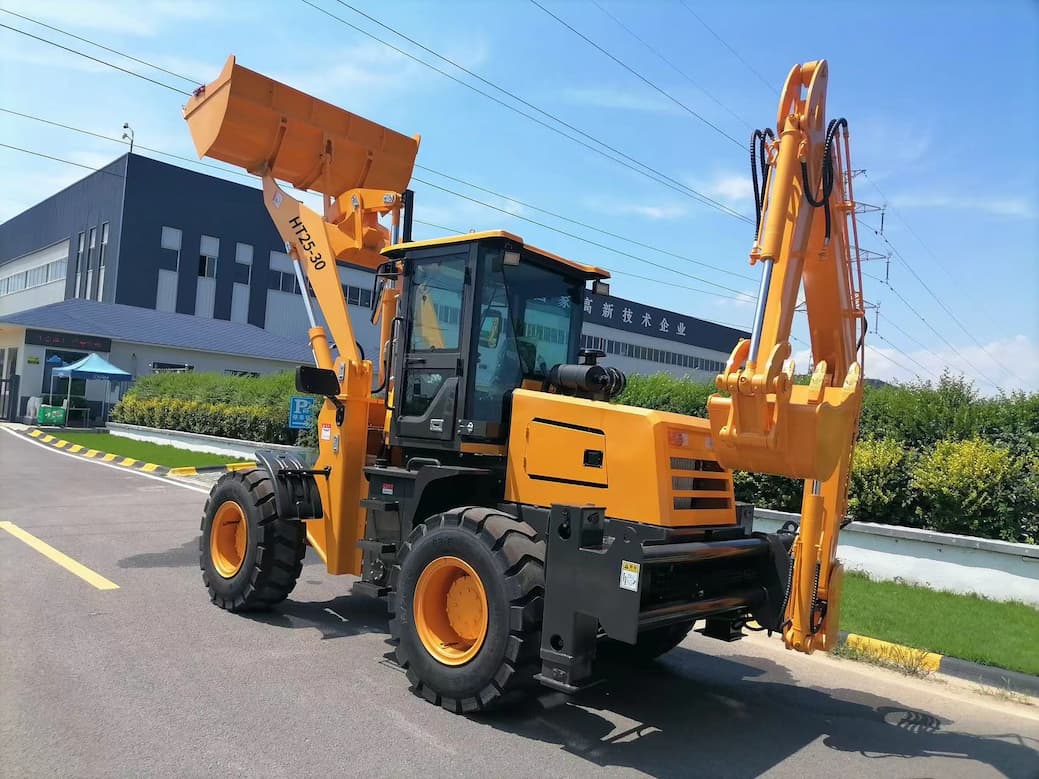

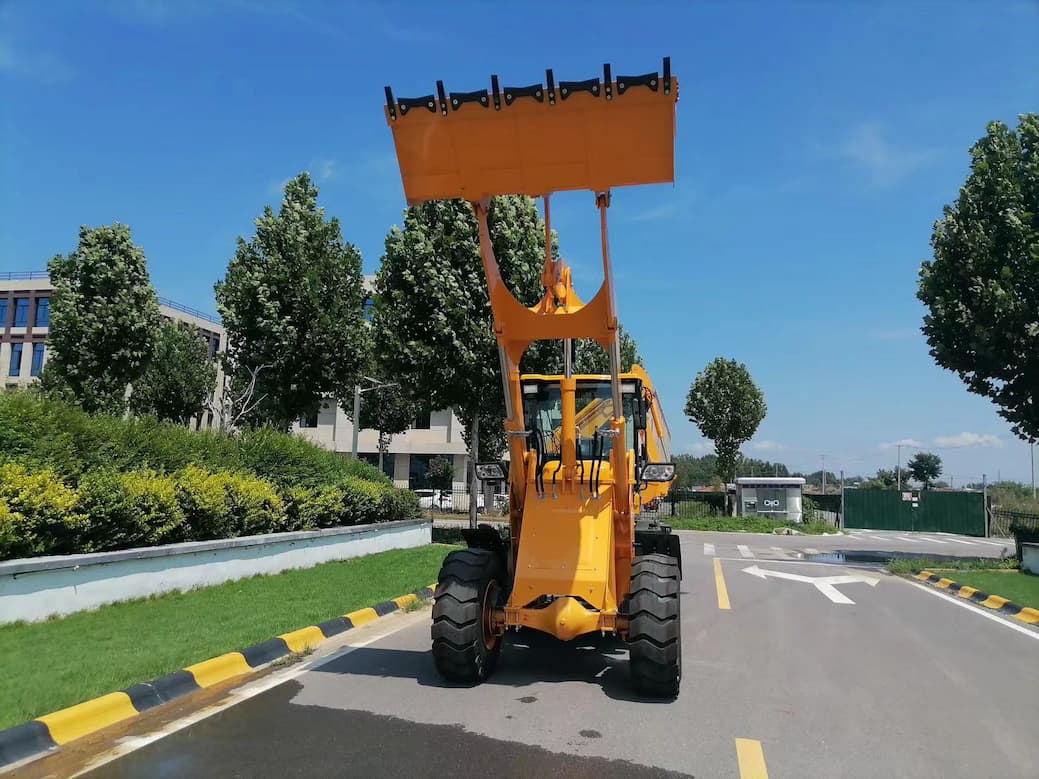

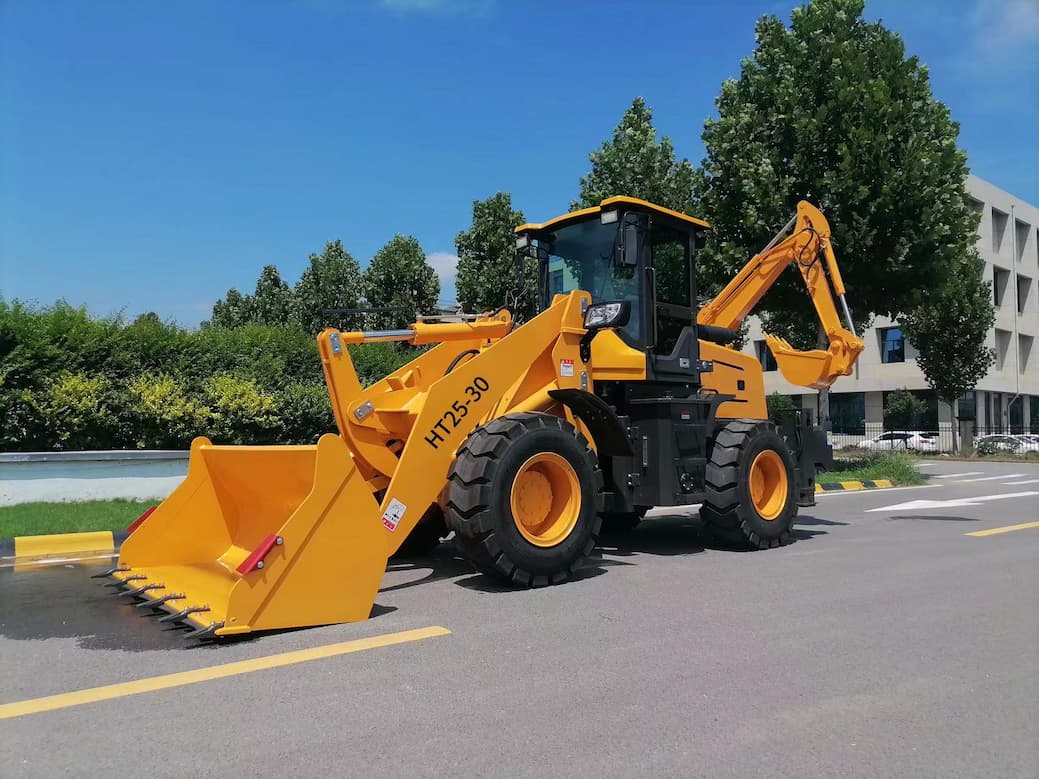

The front loader excavator have powerful engine, low noise, low exhaust gas, green environmental protection, driving motive, good reliability. Front loader excavator also having adopted four wheel drive, hydraulic torque converter, hydraulic steering system.
Item No. :
HT25-30Load Capacity :
2000kgsDumping Height :
3500mmEngine Rated Power :
92kwBackhoe Capacity :
0.25m³Bucket Capacity :
1.2m³OEM/ODM :
SUPPORTBackhoe Loader with A OR H LEG
Technical Parameter
|
Model |
HT25-30 |
|
Dimensions (mm) |
6500*2040*2800 |
|
Wheel base (mm) |
2675 |
|
Wheel tread(mm) |
1630 |
|
Min. ground clearance (mm) |
280 |
|
performance parameters |
|
|
System pressure (MPa) |
18 |
|
Machine weight (Kg) |
6500 |
|
Max. speed (Km/h) |
28 |
|
Max. climbing capacity (°) |
25 |
|
Min. turning radius (mm) |
4500 |
|
Digging parameters |
|
|
Max. digging depth (mm) |
2600 |
|
Dig unloading height (mm) |
2300 |
|
Max. digging radius (mm) |
4600 |
|
Bucket width (mm) |
700 |
|
Bucket capacity (m3) |
0.25 |
|
max. digging height (mm) |
4300 |
|
Maximum digging force (kN) |
28 |
|
Rotary Angle of excavator (°) |
180 |
|
Loading parameters |
|
|
Max. unloading height (mm) |
3500 |
|
Max. unloading distance (mm) |
900 |
|
Bucket width (mm) |
2200 |
|
Bucket capacity (m³) |
1.2 |
|
Max. loading lifting height (mm) |
4300 |
|
Max. breakout force (kN) |
42 |
|
Forward shovel action time (S) |
12 |
|
Engine |
|
|
Model |
Yunnei YN48GBZ (OPTIONAL) |
|
Type |
Turbocharged, 4 strokes |
|
Rate power (KW) |
92 |
|
Rate speed (r/min) |
2400 |
|
Cylinders-inside diameter |
4-108 |
|
Transmission system |
|
|
Gearbox |
Fixed shaft power shift |
|
Number of gear |
2 first/ 2 after |
|
Hydraulic torque converter |
ZL29A |
|
Steering system |
|
|
Type |
Hinged full hydraulic steering |
|
Steering Angle (°) |
33 |
|
Bridge |
|
|
Type |
Hub reduction |
|
Tire |
|
|
Specifications |
16/70-20 |
|
Front wheel pressure (kPa) |
250 |
|
Rear wheel pressure (kPa) |
250 |
|
Crane brake |
Oil brake drum brake |
|
The parking brake |
Manul |
|
Oil amount |
|
|
Fuel tank (L) |
50 |
|
Hydraulic tank (L) |
50 |
|
Other |
|
|
Drive type |
Four-wheel drive |
|
Variable speed type |
Hydraulic variable speed |
|
Braking distance (mm) |
6200 |
