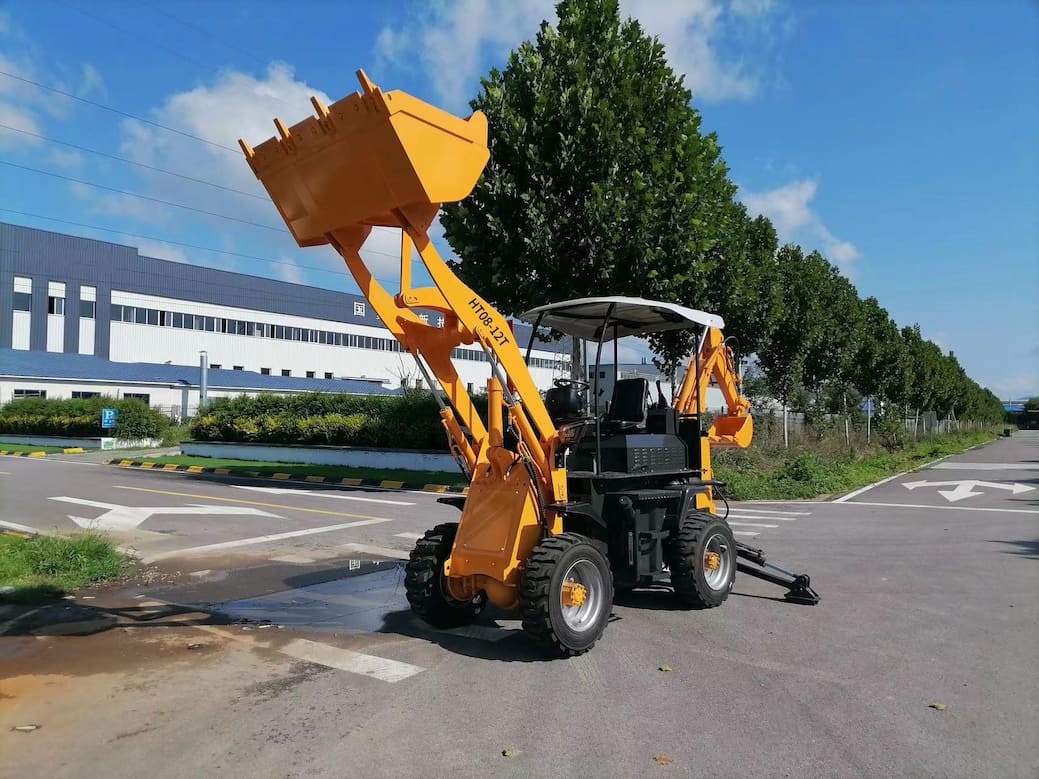

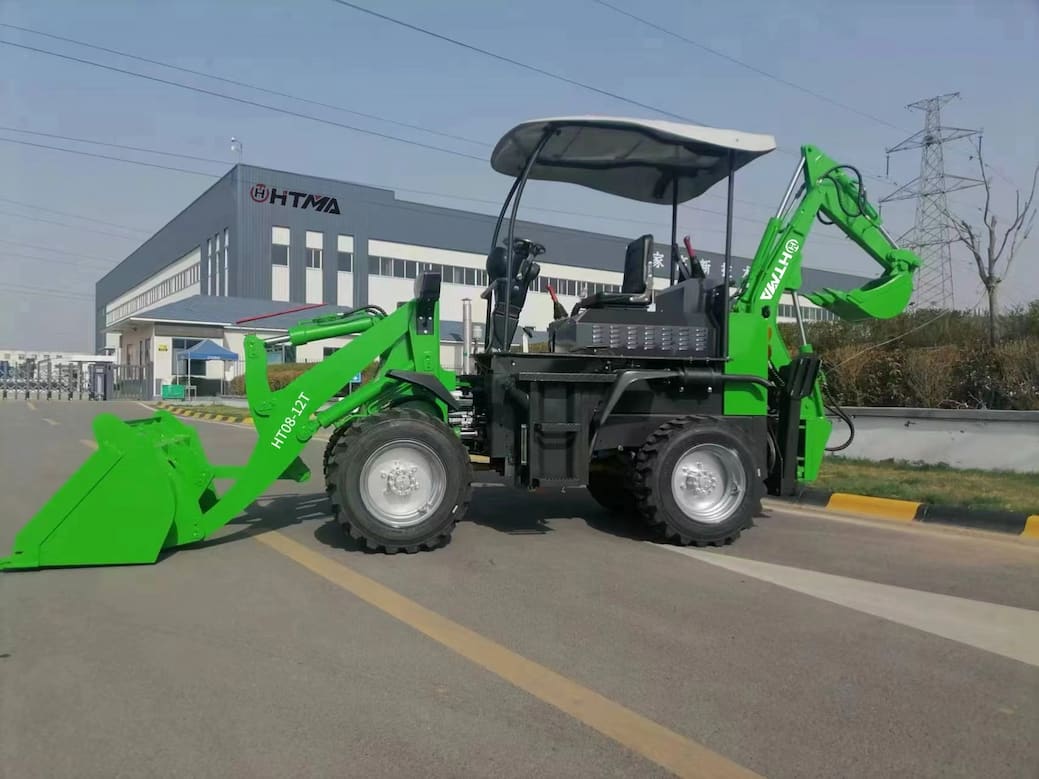

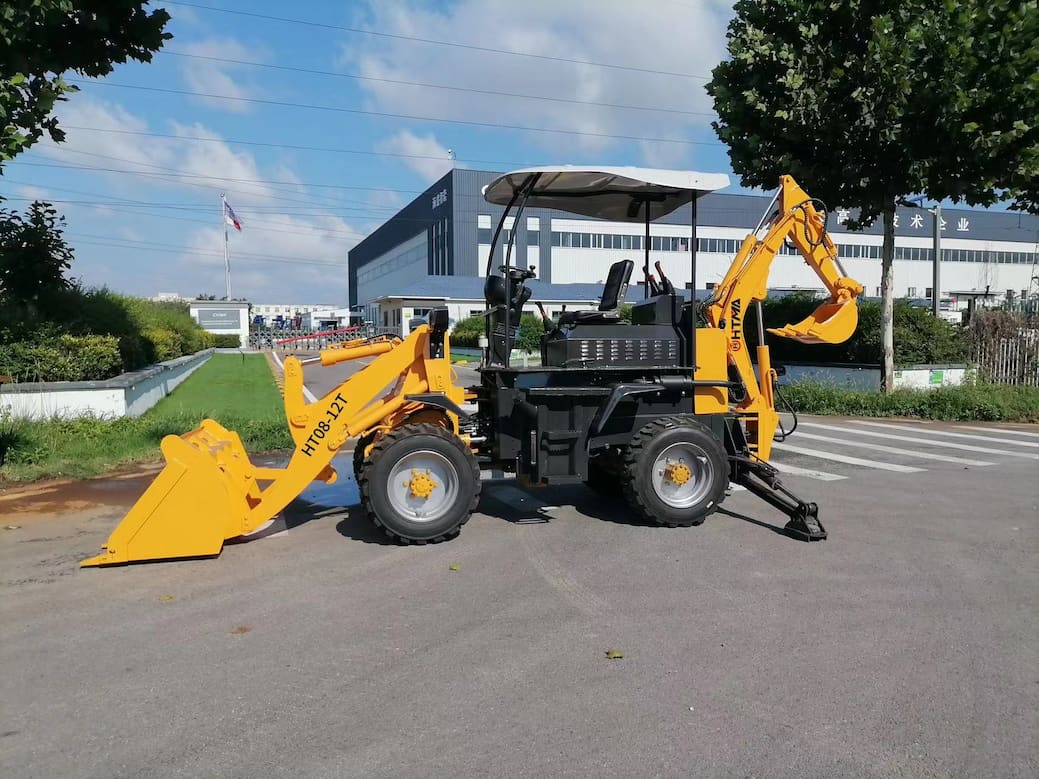

The compact backhoe loader with simple or enclosed cabin, with A leg
Item No. :
HT08-12TLoad Capacity :
2400KGSDumping Height :
2800mmEngine Rated Power :
37W (Optional)Backhoe Capacity :
0.08m³Bucket Capacity :
0.3m³OEM/ODM :
SUPPORT|
Model |
HT08-12T |
|
|
Dimensions (mm) |
4400*1665*2550 |
|
|
Wheelbase (mm) |
1960 |
|
|
wheel tread(mm) |
1130 |
|
|
Min. ground clearance (mm) |
250 |
|
|
performance parameters |
||
|
System pressure (MPa) |
16 |
|
|
Machine weight (Kg) |
2400 |
|
|
Max. speed (Km/h) |
25 |
|
|
Max. climbing capacity (°) |
25 |
|
|
Min. turning radius (mm) |
3200 |
|
|
Diggingparameters |
||
|
Max. digging depth (mm) |
1450 |
|
|
Dig unloading height (mm) |
1800 |
|
|
Max. digging radius (mm) |
2600 |
|
|
Bucket width (mm) |
400 |
|
|
Bucket capacity (m3) |
0.08 |
|
|
max. digging height (mm) |
2300 |
|
|
Maximum digging force (kN) |
25 |
|
|
Rotary Angle of excavator (°) |
180 |
|
|
Loading parameters |
||
|
Max. unloading height (mm) |
2300 |
|
|
Max. unloading distance (mm) |
750 |
|
|
Bucket width (mm) |
1300 |
|
|
Bucket capacity (m³) |
0.3 |
|
|
Max. loading lifting height (mm) |
2800 |
|
|
Max. breakout force (kN) |
36 |
|
|
Forward shovel action time (S) |
12 |
|
|
Engine |
||
|
Model |
Yunnei YN25GB |
|
|
Type |
Turbocharged, 4 strokes |
|
|
Rate power (KW) |
37 |
|
|
Rate speed (r/min) |
2400 |
|
|
Cylinders-inside diameter |
4-90 |
|
|
Transmission system |
||
|
Gearbox |
Fixed shaft power shift |
|
|
Number of gear |
2 first/ 2 after |
|
|
Hydraulic torque converter |
ZL28F |
|
|
Steering system |
||
|
Type |
Hinged full hydraulic steering |
|
|
Steering Angle (°) |
33 |
|
|
Bridge |
||
|
Type |
Hub reduction |
|
|
Tire |
||
|
Specifications |
10-16.5 |
|
|
Front wheel pressure (kPa) |
250 |
|
|
Rear wheel pressure (kPa) |
250 |
|
|
Crane brake |
Oil brake drum brake |
|
|
The parking brake |
Manul |
|
|
Oil amount |
||
|
Fuel tank (L) |
25 |
|
|
Hydraulic tank (L) |
25 |
|
|
Other |
||
|
Drive type |
Four-wheel drive |
|
|
Variable speed type |
Hydraulic variable speed |
|
|
Braking distance (mm) |
3300 |
|
