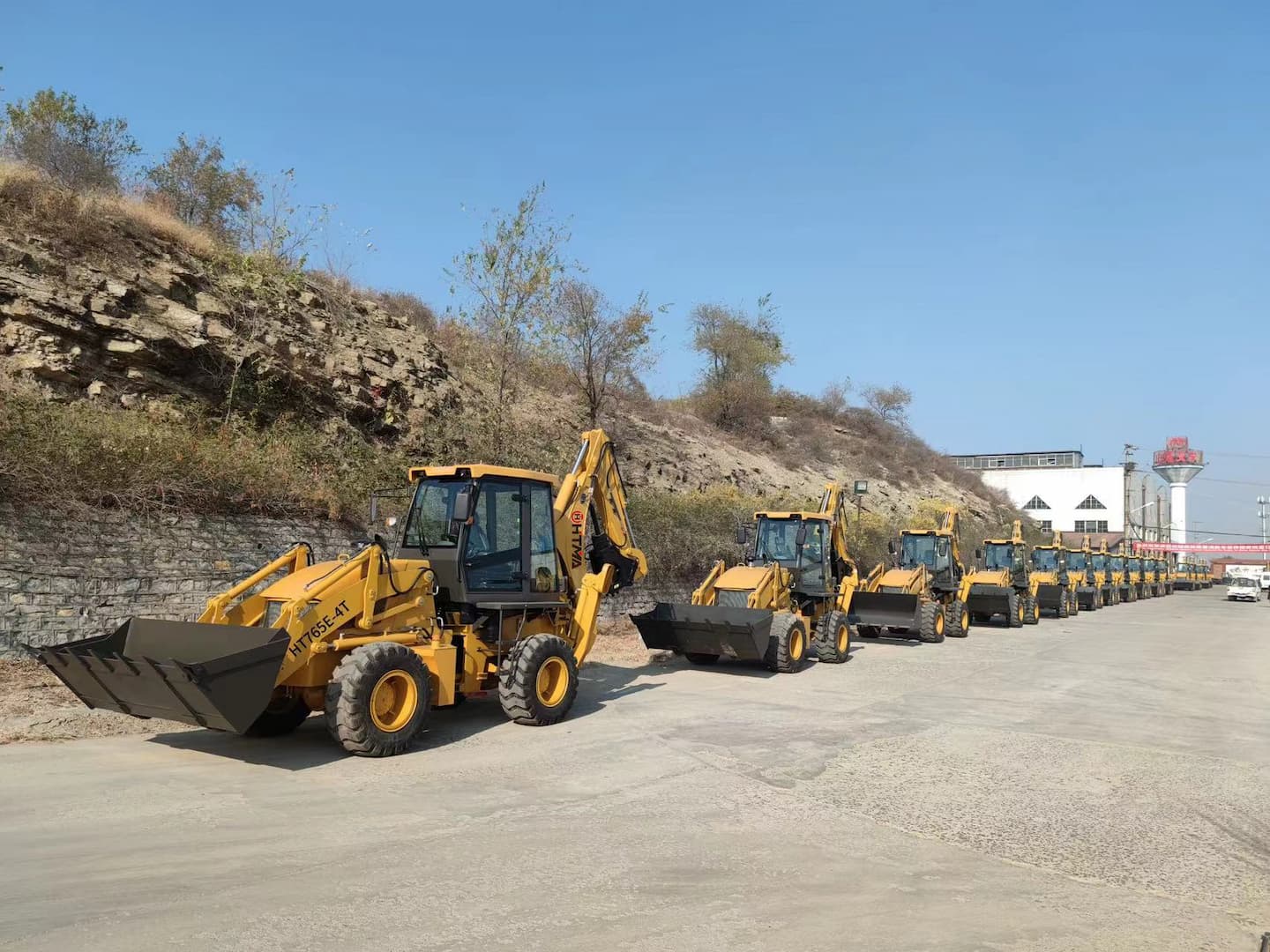

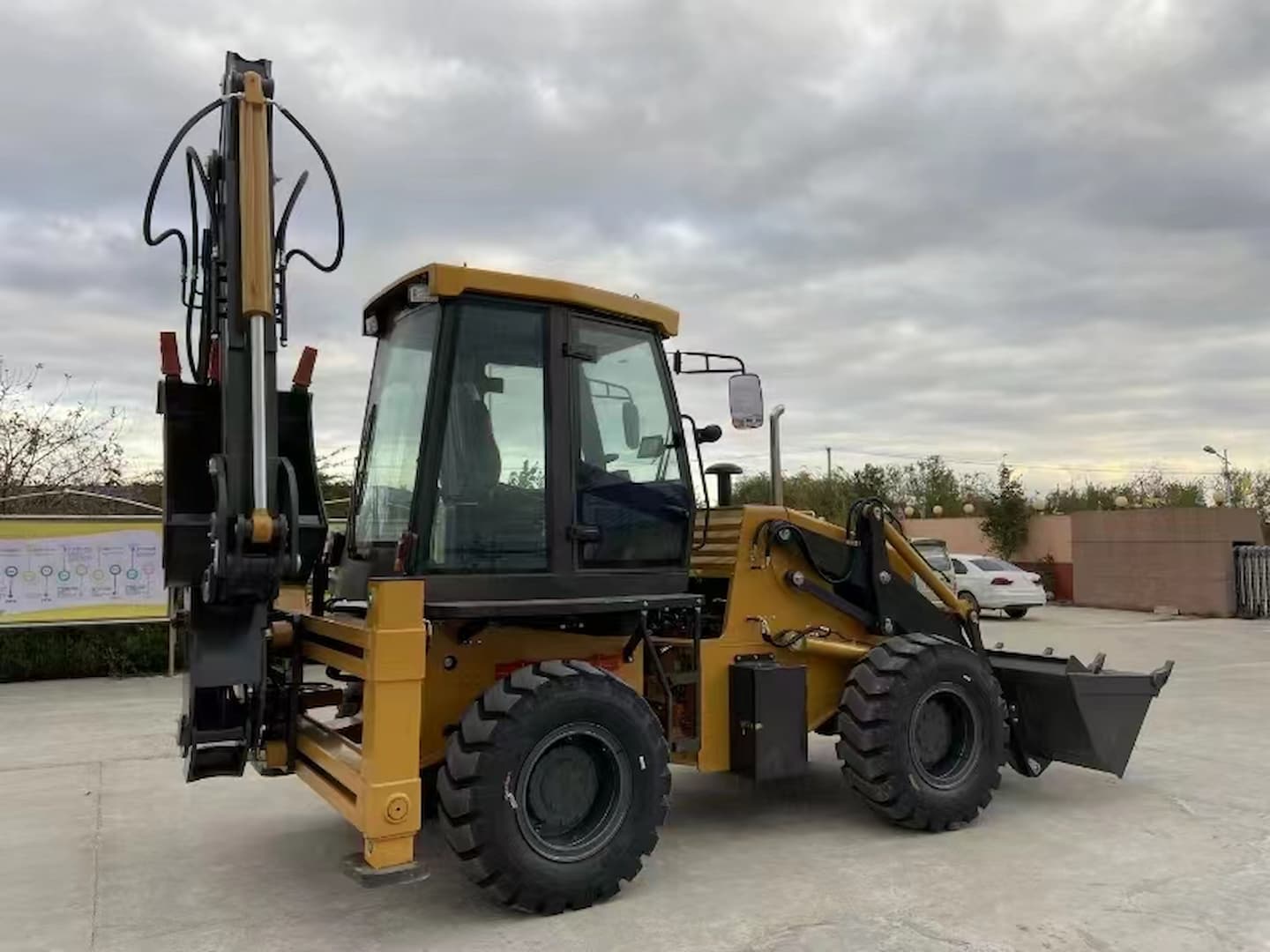

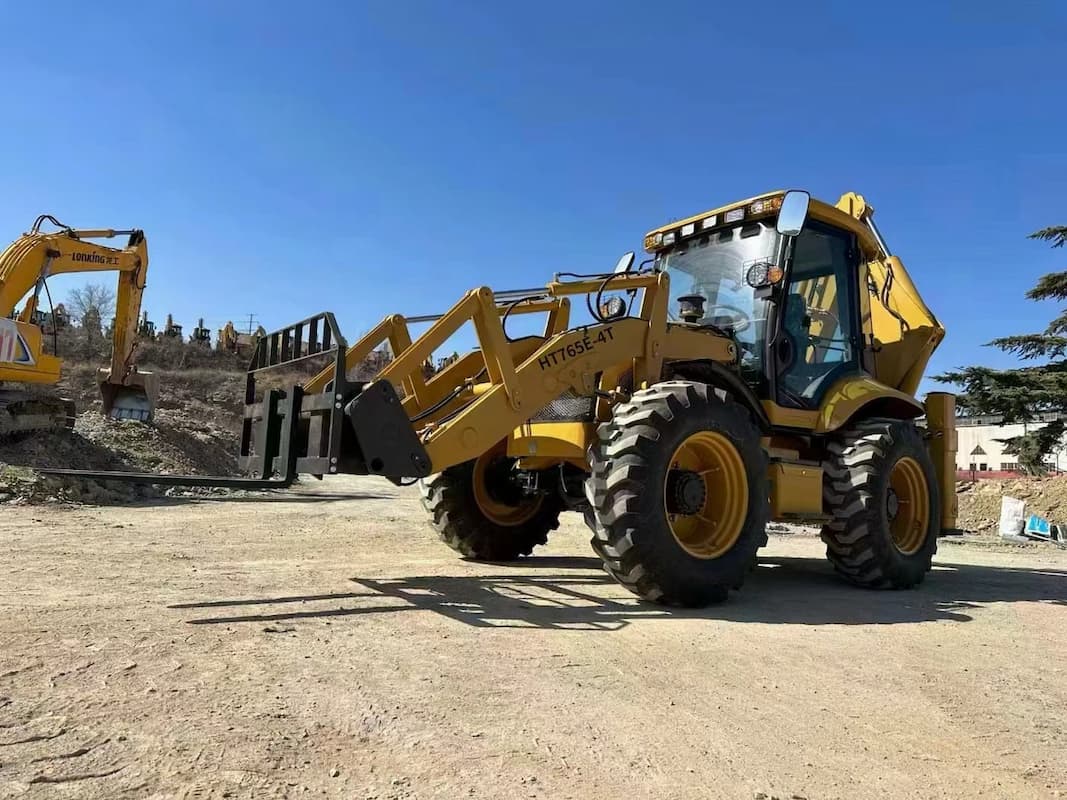

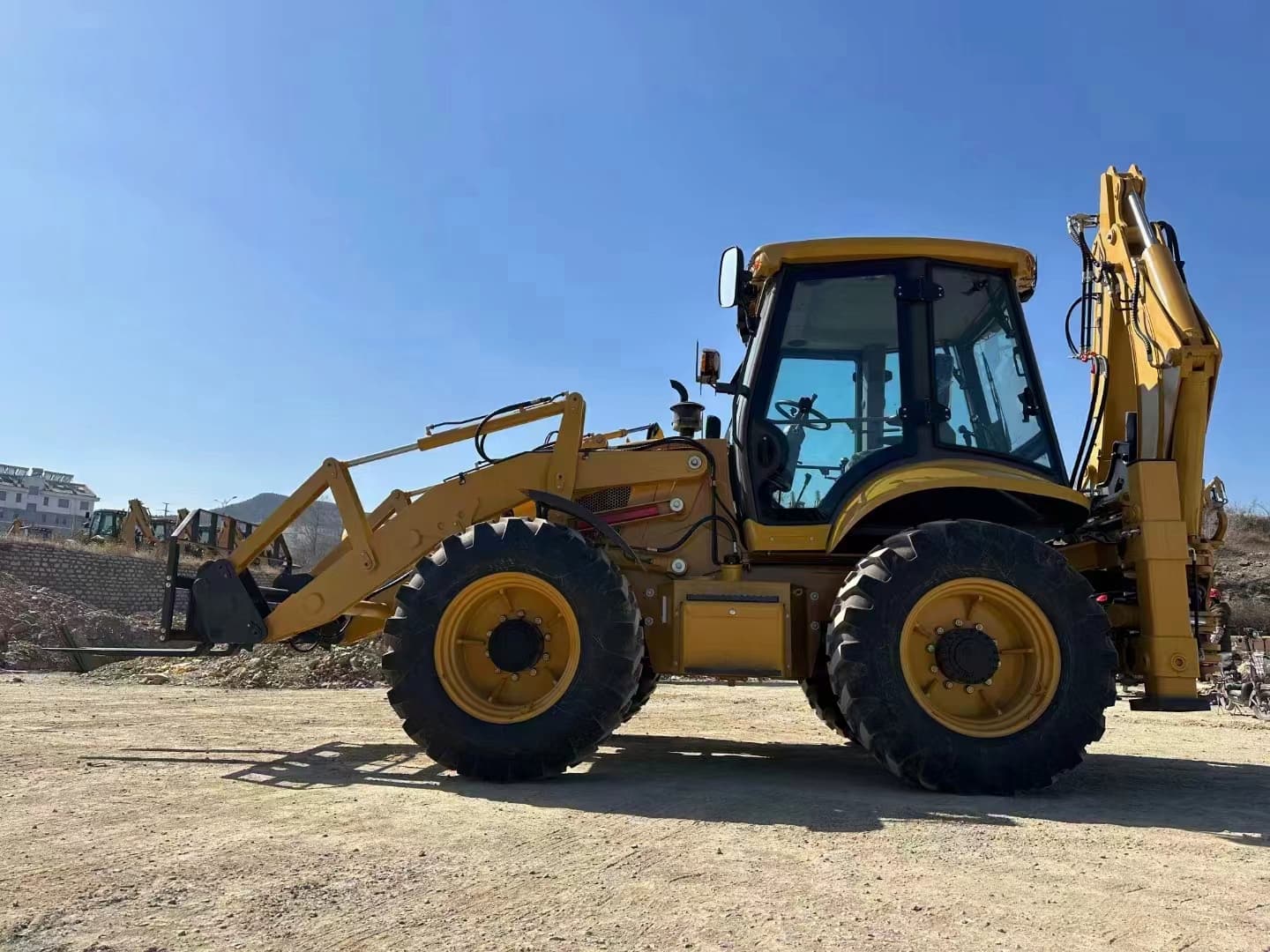

2.5 ton Backhoe Loader with H Leg 4 wheel steering, crab walk, equipped with ROPS&FOPS cabin is a versatile, efficient and durable machine that can handle a wide range of construction and agricultural tasks
Item No. :
HT765E-4TLoad Capacity :
2500kgOperating Weight :
10050kgEngine Rated Power :
75KWBackhoe Capacity :
0.3m³Bucket Capacity :
1.2m³OEM/ODM :
SUPPORTBackhoe Loader HT765E-4T with A OR H LEG
|
Model |
HT765E-4T |
|
Total length bucket at ground |
6450士80mm |
|
Total width |
2650士20mm |
|
Bucket width |
2620mm |
|
Total height cab in top |
3120+10mm |
|
Total height digging boom top |
3940±20mm |
|
Wheel base |
2335+10 mm |
|
Wheel tread |
2139 10mm |
|
Hydraulic torque |
Model---315 |
|
convertor |
Coolingway--Pressured oil circle |
|
Gearbox |
Model---28 Type：Mechanically Operated/Hydraulic Synchronized |
|
Driving axles |
Model---WZL100 |
|
Gear shift |
Forward 4 Backwar 4 |
|
Tyres model |
16.9-28 |
|
Rated digging bucket capacity |
0.3m3 |
|
Max.Digging radius |
3820±20 mm |
|
Max.Digging depth |
5345±20mm |
|
Max.Loading height |
3740±20mm |
|
Max.Digging force |
5100kgf |
|
Max.Digging height |
5470 ±20mm |
|
Lifting forceat Max.Digging radius |
1220kg |
|
Max. Digging depth with arm extended (telescopic arm) |
4970±20 mm |
|
Max. Digging height with arm extended (telescopic arm) |
6680±20mm |
|
Working pump displacement |
63ml/r |
|
Working pump pressure |
20Mpa |
|
Diverter model |
BZZ5-250 |
|
Rod diameter (mm) |
68-70 |
|
Working pressure (Mpa) |
11-14 |
|
lmpact frequency |
500-900 |
|
Flow scope( Umin) |
25-45 |
|
kinetic energy (KN) |
49 |
|
Engine model |
YUNNEI YN48 (OPTIONAL) |
|
Cooling type |
Water cooling |
|
Rated power |
75 (kW) |
|
Displacement |
4.8(L) |
|
Rated speed |
2200(r/min) |
|
Max.Torque |
400(N.M) |
|
Manufacturer |
YUNNEI (OPTIONAL) |
|
Hydraulic oil tank |
125 |
|
Fuel tank |
125 |
