/ Home /Backhoe Loader / 2.5 Ton compact front Loader backhoe With A leg Equipped With Reversing Camera

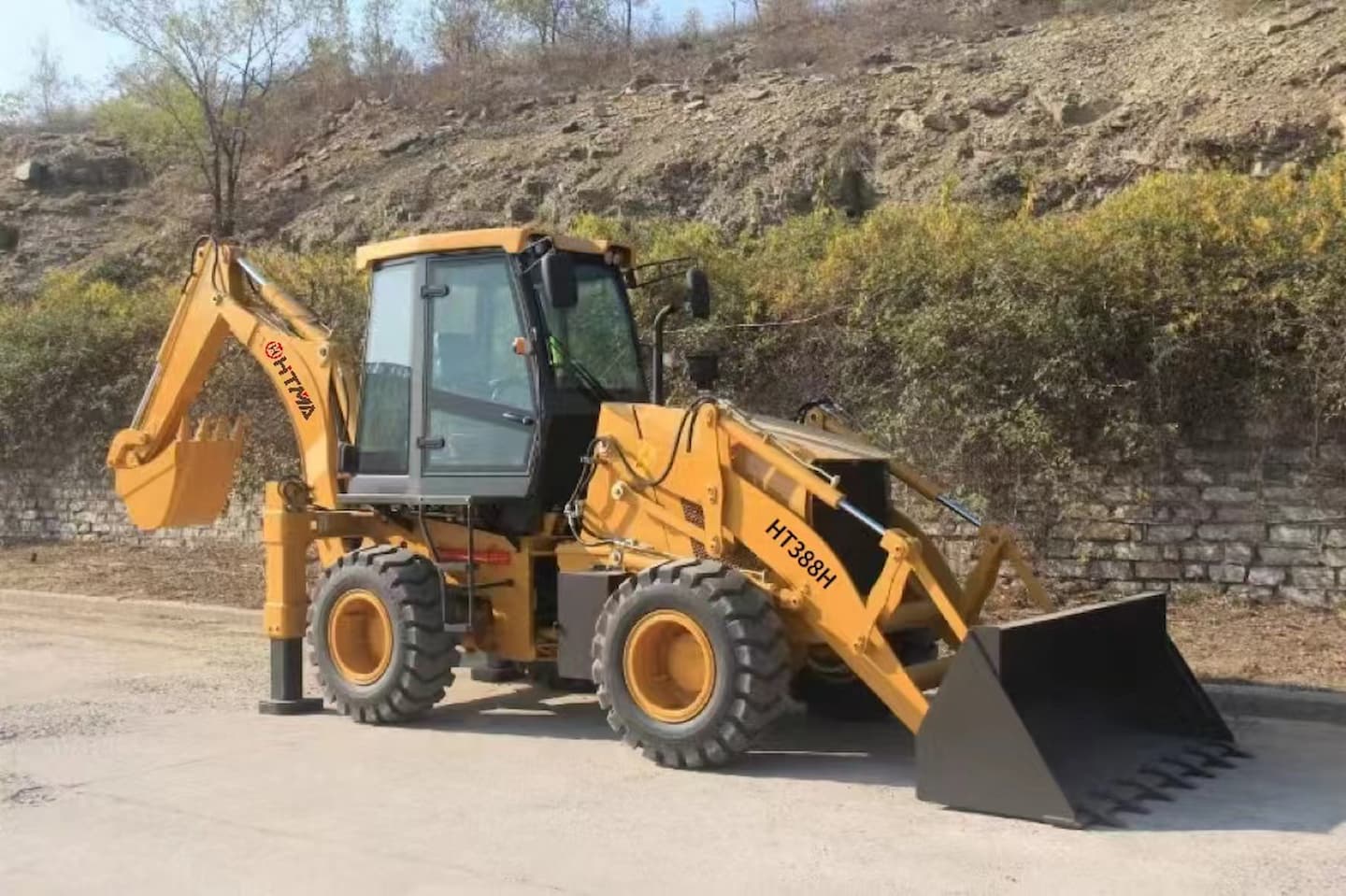

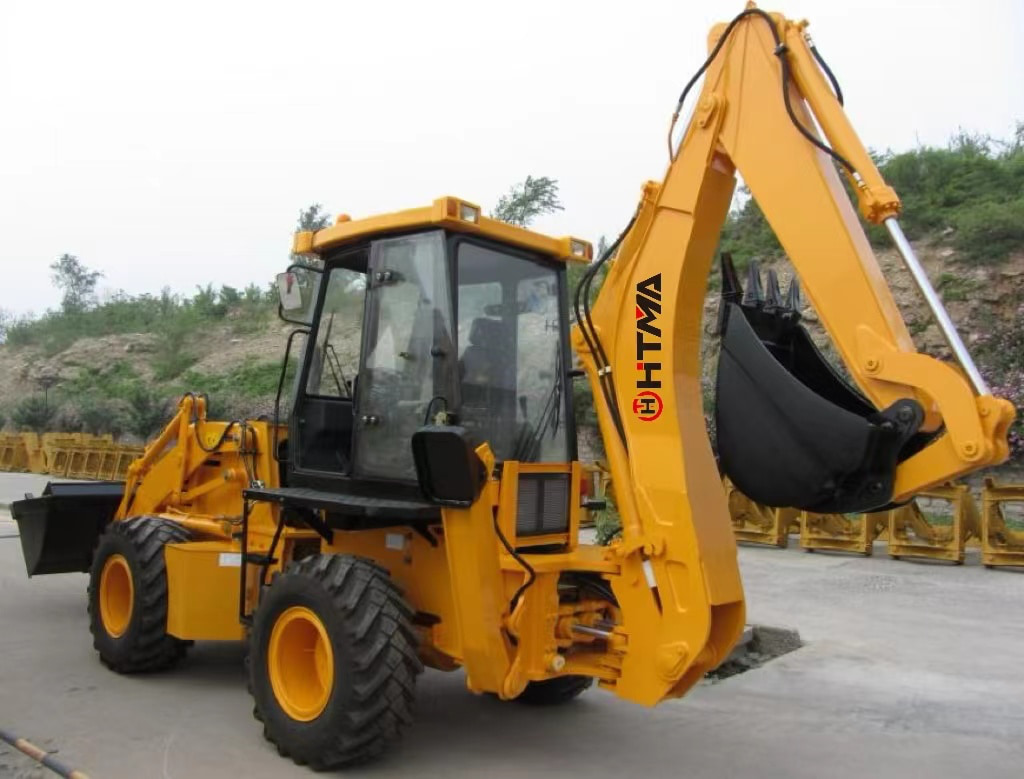

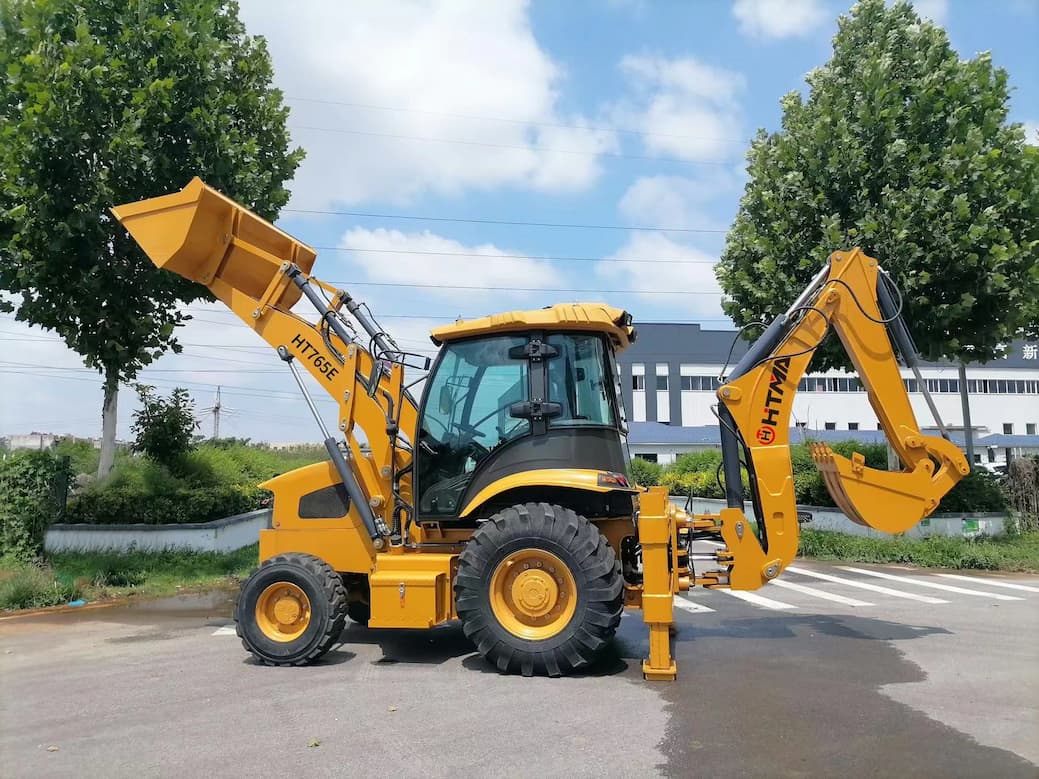

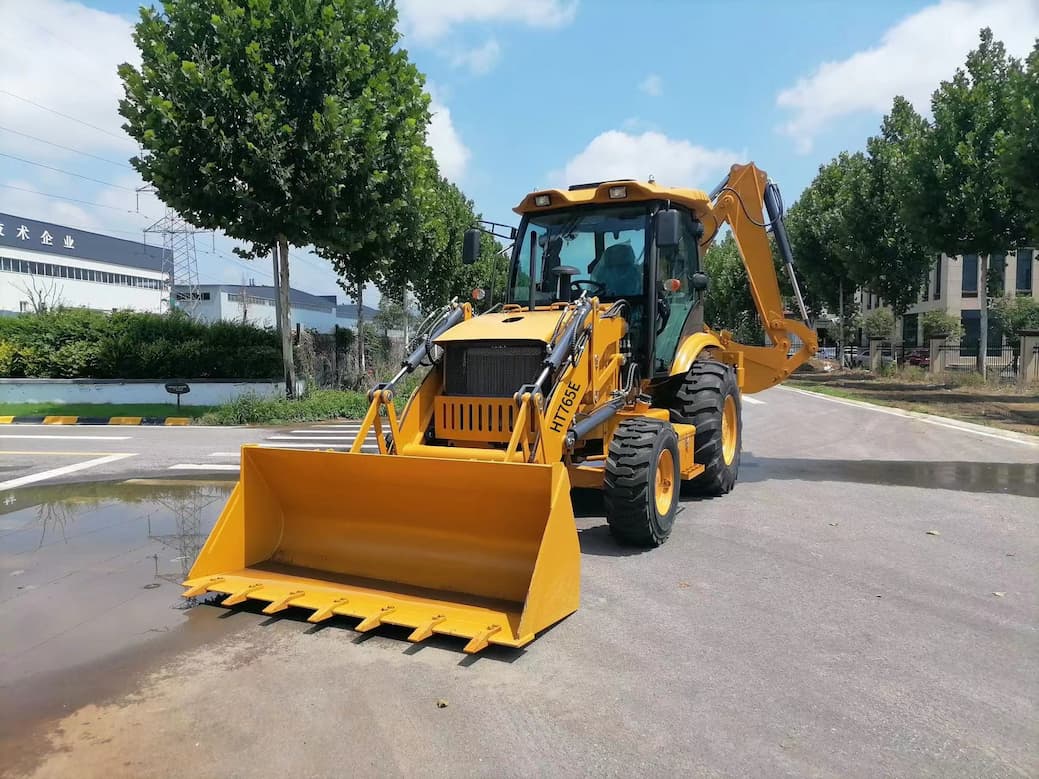

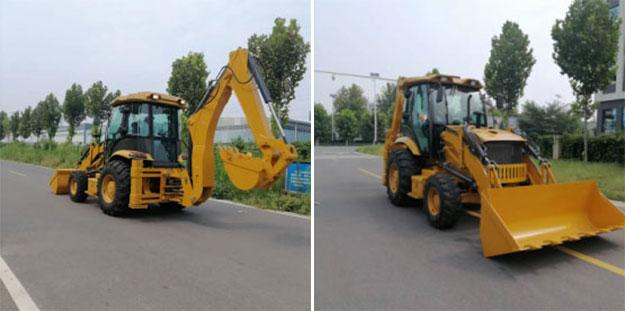

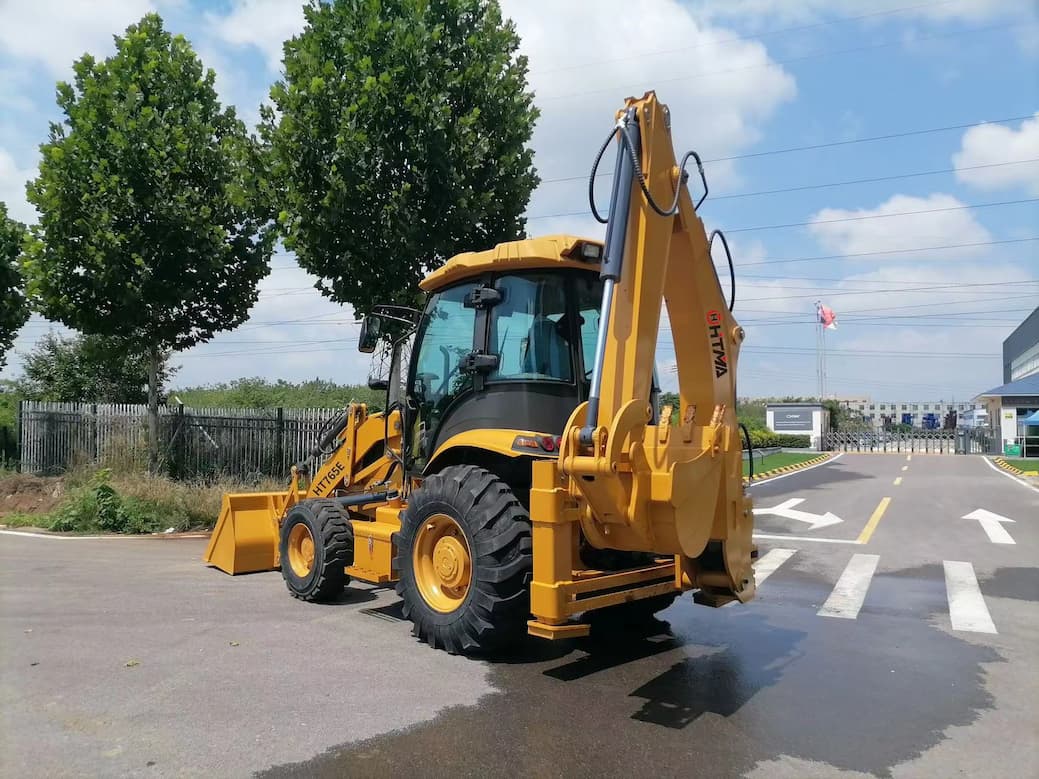

2.5 Ton compact front Loader backhoe With A leg Equipped With Reversing Camera

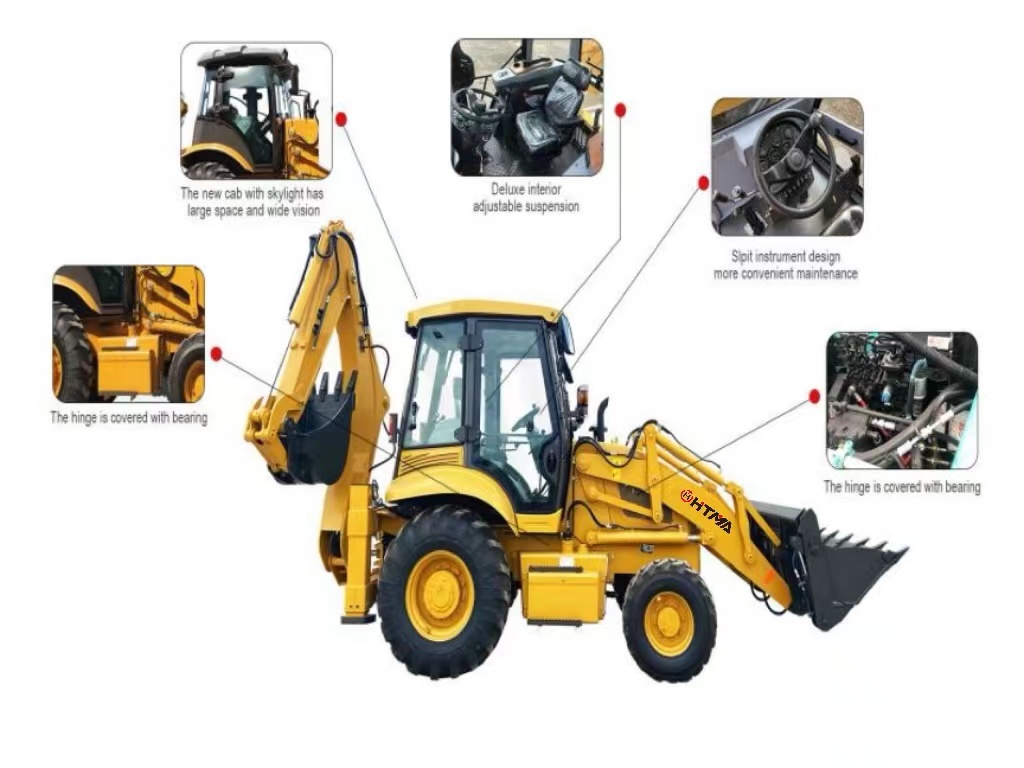

2.5 Ton Backhoe Loader With A leg equipped with Eaton steering gear and priority valve, reversing camera, rear digging hammer line, A-legged as standard

  • Item No. :

    HT765E

  • Dumping Height :

    2650mm

  • Engine Rated Power :

    70kw/95HP (Optional)

  • Backhoe Capacity :

    0.3m³

  • Bucket Capacity :

    1.0m³

  • OEM/ODM :

    SUPPORT
Inquiry now

Model

HT765E

Operating Weight

8000kg

Overall Dimension

6150x2250×3763mm

Wheel Base

2264mm

Min. Ground Clearance

300mm

Model of steering system

BZz5-250

Steering angle

士36°

Mini turning radius

6581mm

Pressure of the system

12MPa

Breakout Force

38KN

Loading lifting capacity

2500kg

Front Bucket Capacity

1.0 m3

Bucket Dumping Height

2650mm

Bucket Dumping Distance

1025mm

Digging Height

3878mm

Backhoe Capacity

0.3cbm

Max. Digging Depth

4085mm

Single angle of excavator grab

190°

Max. pulling force

39KN

Loading Hydraulic System

16MPa

Digging Hydraulic System

18Mpa

Driving Axle Load Capacity

4/18.5T

Rated Dynamic/static load of front axle

9T/22.5T

Rated Dynamic/static load of rear axle

7.5T/18.75T

Engine Brand

YN48GBZ (Optional)

Type

lnline Direct lnject Turbocharged

No.of Cylinder-Bore/Stroke

4-105x130

Rated Power

7okw/95HP

Max. torque

380 N.m/1400~1600rpm

Displacement

4.5L

Rated Speed

2200r/min

Min.Fuel Consumption

230g/Kw-h

Gearbox

TLB14WD

Type

Fixed Shaft Power shift/Electric Control

Max.speed

38Km/h

Size

14-17.5/19.5L-24

Service brake

wet internal self-regulatic self-balance type

Parking brake

Spring brake/hydraumatic terminating brake

Digging power of excavator grab

46.5KN

Digging power of dipper

31KN

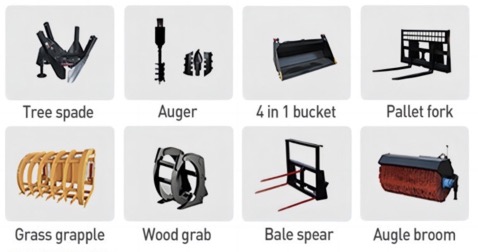

 Attachments & Applications

We can offer a diverse selection of attachments as following pictures showed and more for backhoe loaders, ensuring that customers' specific requirements are met across various applications.
