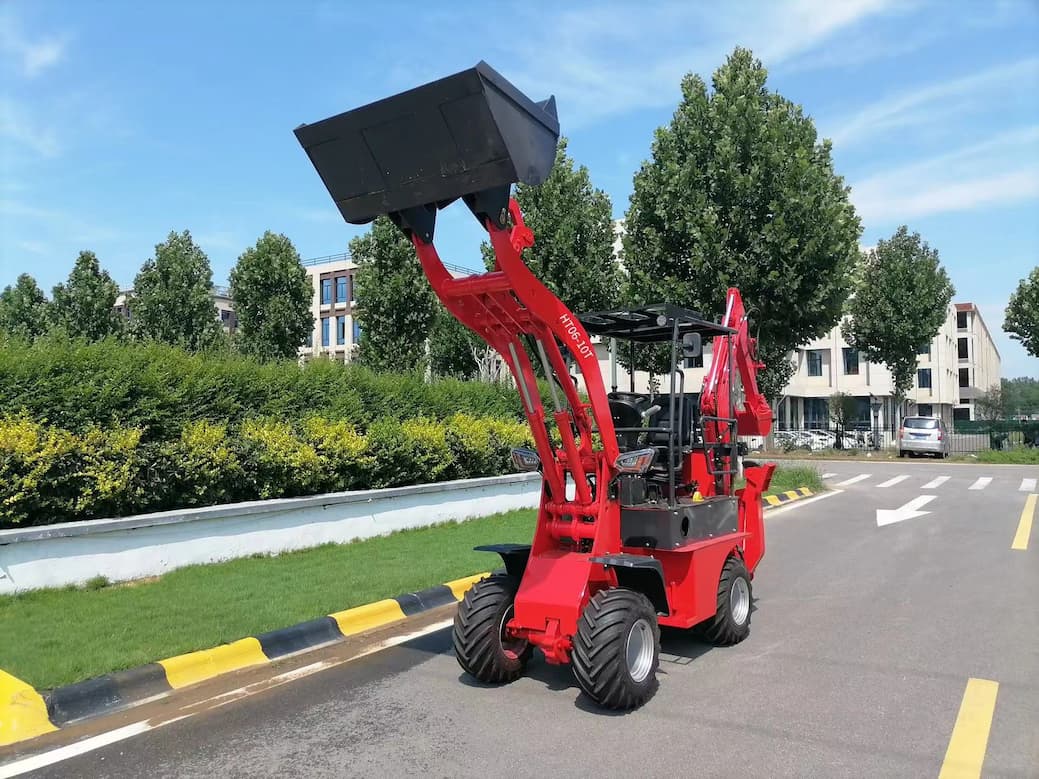

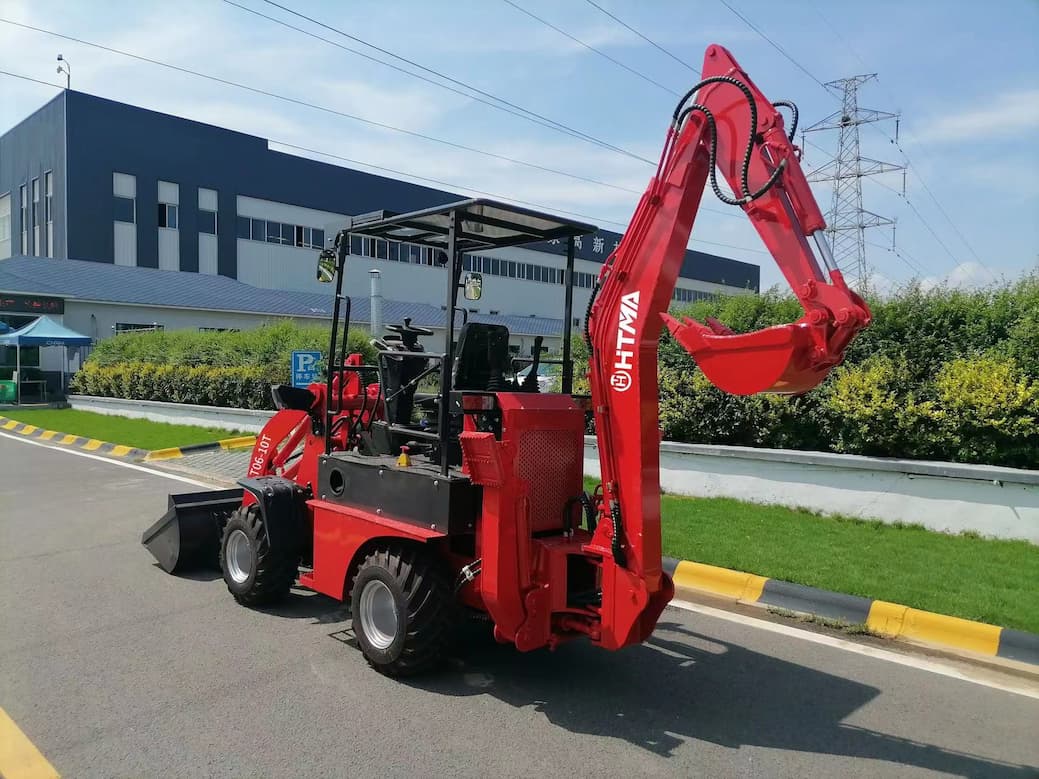

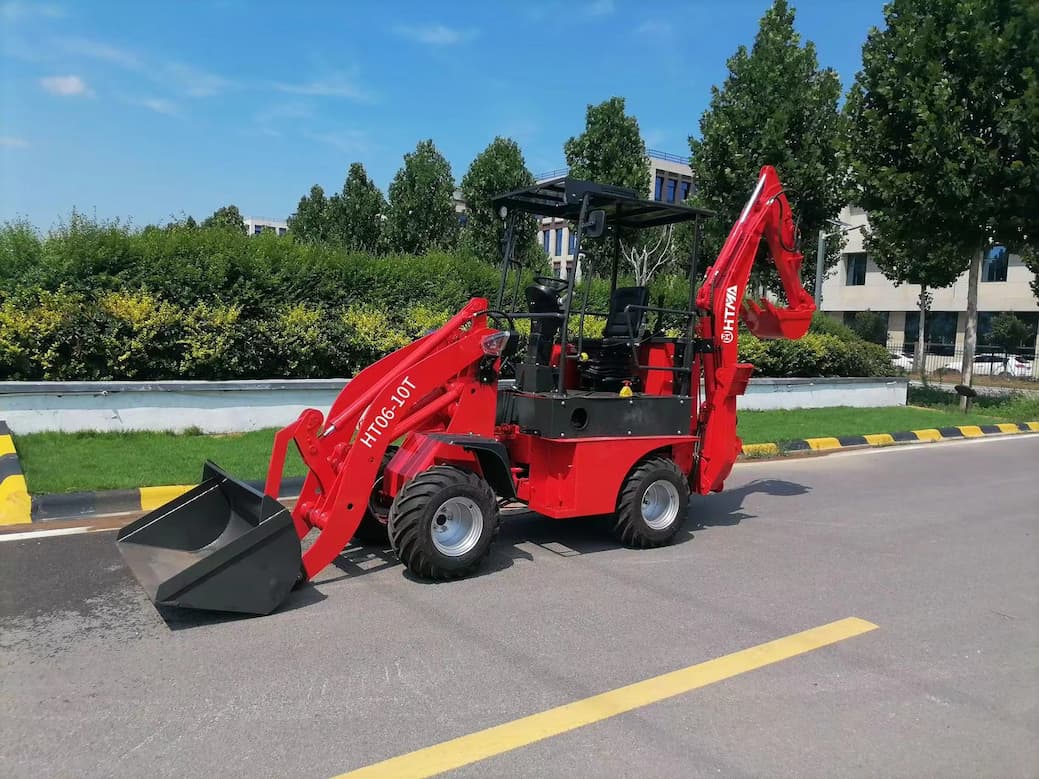

Mini backhoe loader with easy cabin, with good price
Item No. :
HT06-10TDumping Height :
2000MMEngine Rated Power :
18.2KWBackhoe Capacity :
0.08m³Bucket Capacity :
0.2m³OEM/ODM :
SUPPORTBackhoe Loader with A LEG
Technical Parameter
|
Model |
HT06-10T |
|
Dimensions (mm) |
5000X1150X2800 |
|
Wheel base (mm) |
1618 |
|
Wheel tread(mm) |
840 |
|
Min. ground clearance (mm) |
175 |
|
performance parameters |
|
|
System pressure (MPa) |
16 |
|
Machine weight (Kg) |
1800 |
|
Max. speed (Km/h) |
20 |
|
Max. climbing capacity (°) |
25 |
|
Min. turning radius (mm) |
2800 |
|
Digging parameters |
|
|
Max. digging depth (mm) |
2400 |
|
Dig unloading height (mm) |
2600 |
|
Max. digging radius (mm) |
2500 |
|
Bucket width (mm) |
400 |
|
Bucket capacity (m3) |
0.08 |
|
max. digging height (mm) |
3640 |
|
Maximum digging force (kN) |
10 |
|
Rotary Angle of excavator (°) |
120 |
|
Loading parameters |
|
|
Max. unloading height (mm) |
2000 |
|
Max. unloading distance (mm) |
1000 |
|
Bucket width (mm) |
1150 |
|
Bucket capacity (m³) |
0.2 |
|
Max. loading lifting height (mm) |
3000 |
|
Max. breakout force (kN) |
16 |
|
Forward shovel action time (S) |
12 |
|
Engine |
|
|
Model |
D1105-EF02 |
|
Type |
lnline Direct lnject,4 strokes |
|
Rate power (KW) |
18.2 |
|
Rate speed (r/min) |
3000 |
|
Cylinders-inside diameter |
3 |
|
Transmission system |
|
|
Gearbox |
Fixed shaft power shift |
|
Number of gear |
2 first/ 2 after |
|
Steering system |
|
|
Type |
Hinged full hydraulic steering |
|
Steering Angle (°) |
33 |
|
Bridge |
|
|
Type |
SPECIAL USE |
|
Tire |
|
|
Front wheel pressure (kPa) |
250 |
|
Rear wheel pressure (kPa) |
250 |
|
Crane brake |
Oil brake drum brake |
|
Oil amount |
|
|
Fuel tank (L) |
30 |
|
Hydraulic tank (L) |
30 |
|
Other |
|
|
Drive type |
Four-wheel drive |
|
Variable speed type |
Hydraulic variable speed |
|
Braking distance (mm) |
3300 |
